M
ARKINGS
:
Only use the lifter if ALL labels are readable and undamaged. Contact Vestil for replacement labels if necessary,
and DO NOT use the lifter until all replacement labels are affixed to the device.

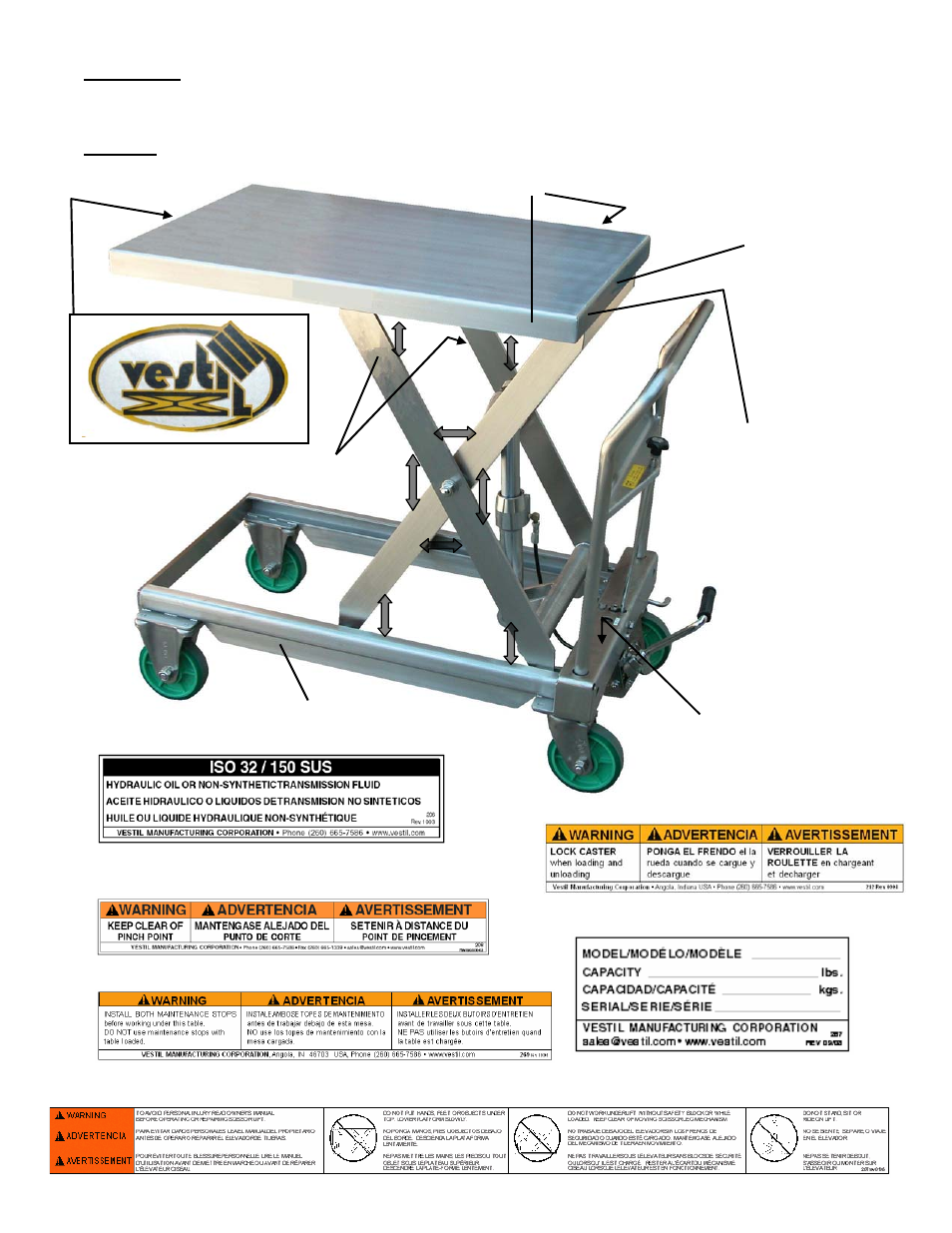

FIG. 11: Label placement
212
207
287
208
Outside surfaces
269
Label #287: Product capacity label
Label #269: “Install both maintenance props…”
Label #208: The scissor legs create pinch points (displayed as
double-ended arrows) as the deck rises and lowers.
Label #212:
Label #206: Hydraulic oil.
206
Label #207: “Read Owner’s manual”; “Do not put hands, feet…under top”; “Do not work under lift without safety block”; “Do
not sit, stand, or ride on lift.”
- 15 -
