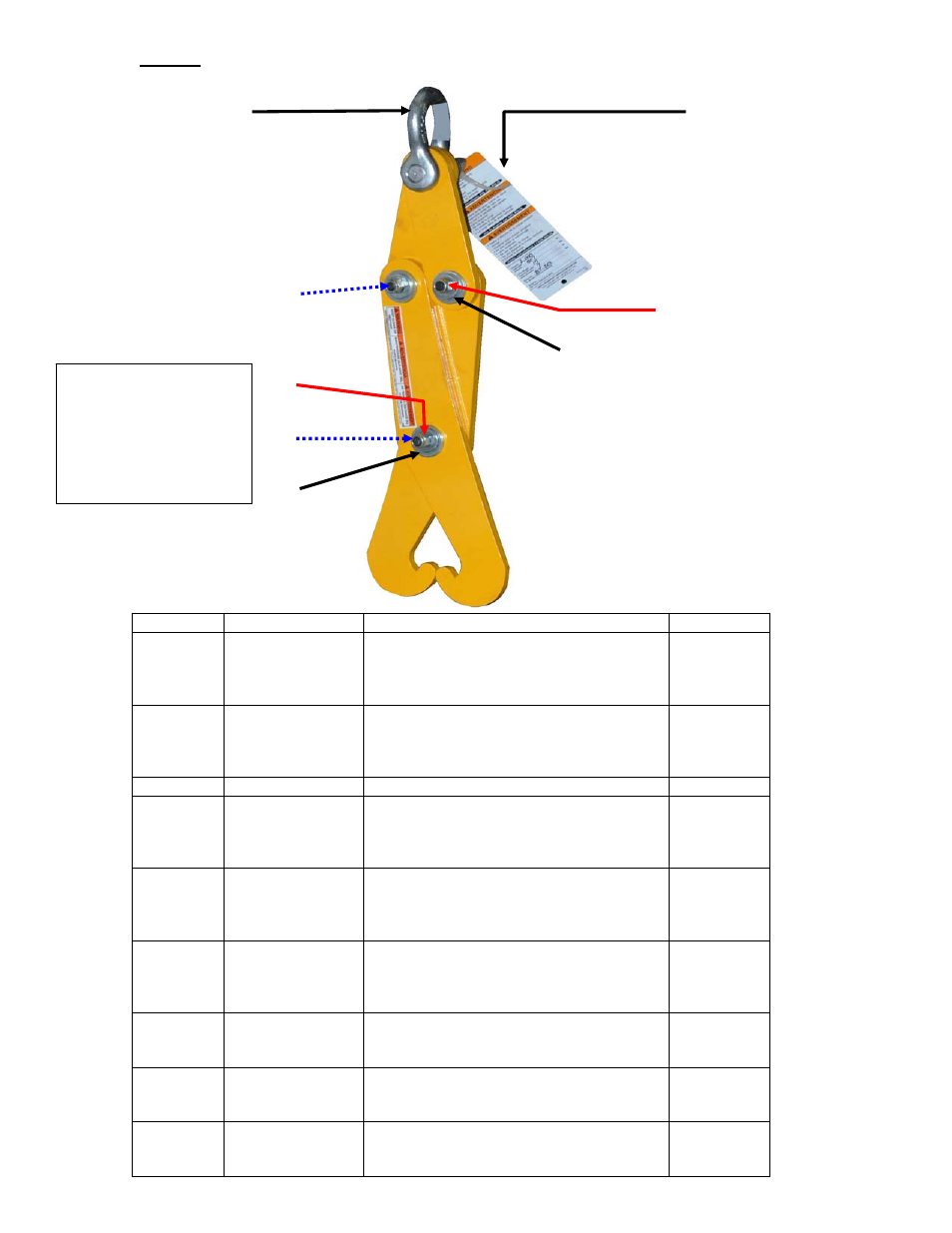

FIG. 1: Parts Diagram
Combined
Warning
Label and
Capacity
Label
3
1 1
4
5
6
**Note: Only present
in Models BT-40 and
BT-60. Model BT-20
does not use parts 7,
8, and 9; instead, the
model has 3 sets of
parts 4, 5 and 6.** 8
7
9
2 2
Item No. Part No. Description Quantity
1
1
1 49-014-005
49-014-003
49-014-002
Link Arm
BT-20
BT-40
BT-60
2
2
2
2
2
2 49-014-004
49-014-006
49-014-001
Clamping Arm
BT-20
BT-40
BT-60
2
2
2
3 99-145-019 3-1/4 ton Shackle 1
4
4
4 13211
13211
13211
½ - 13 x 2 inch Z-plated Bolt
BT-20
BT-40
BT-60
3
2
2
5
5
5 37030
37030
37030
½ - 13 Nylock Nut
BT-20
BT-40
BT-60
3
2
2
6
6
6 33012
33012
33012
½ Flat Washer
BT-20
BT-40
BT-60
6
4
4
7
7 13315
13315
5/8 - 11 x 3inch Z-plated Bolt
BT-40
BT-60
1
1
8
8 37036
37036
5/8 - 11 Nylock Nut
BT-40
BT-60
1
1
9
9 33016
33016
¾ inch Flat Washer
BT-40
BT-60
2
2
