6.0 RUNNING TESTS
The EZCT software can be used with a test plan to run a current-transformer test directly from
the PC. To run a test using the EZCT software:
1. Connect the CT Tester to the PC via either the RS-232C port or the USB port.
2. Make the test connections per the CT Tester’s User’s Manual.

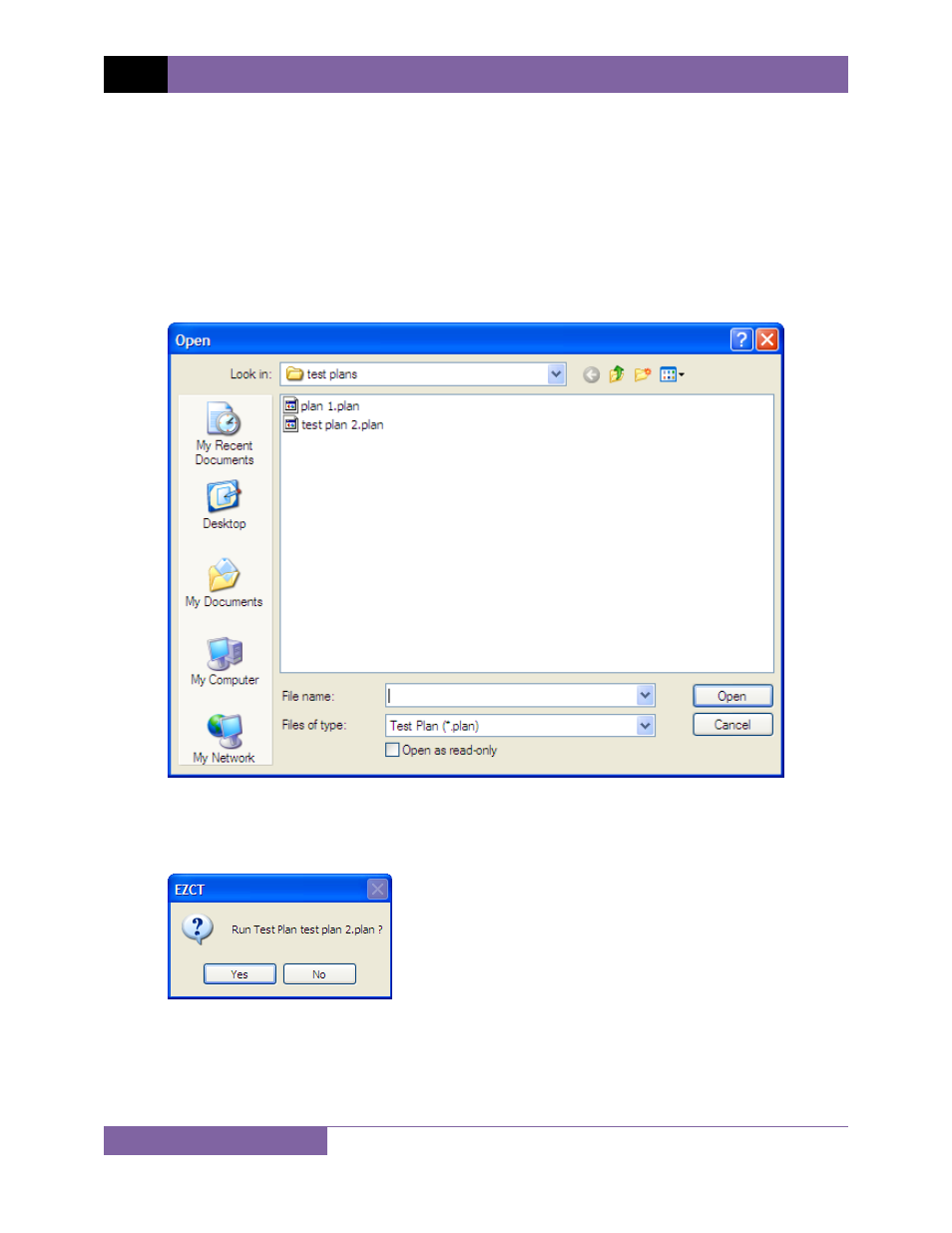

3. Click on the Run-Test menu (alternatively, you can click on the File menu and select Run
Test). The following window will be displayed:
Browse to the folder containing the test plan that you would like to use. Click on the test
plan file name and then click on the “Open” button.
4. The following confirmation window will be displayed:
Click on the “Yes” button.
