Herculito Operating Procedures
7
3.0 CONTROL AND DISPLAY
3.1 Herculito Front Panel
The Herculito controls and displays are shown in the control-panel illustration, Figure 2.
Pointing leader lines reference each item with an index number. Each index number is cross-
referenced to a functional description in Table 2, which describes the function and purpose of
each item on the control panel. Although the purpose of these controls and the display may seem
obvious and intuitive, users should become familiar with them before attempting to use the
Herculito. First-time users should also review and become familiar with the Safety Summary on
the front page.

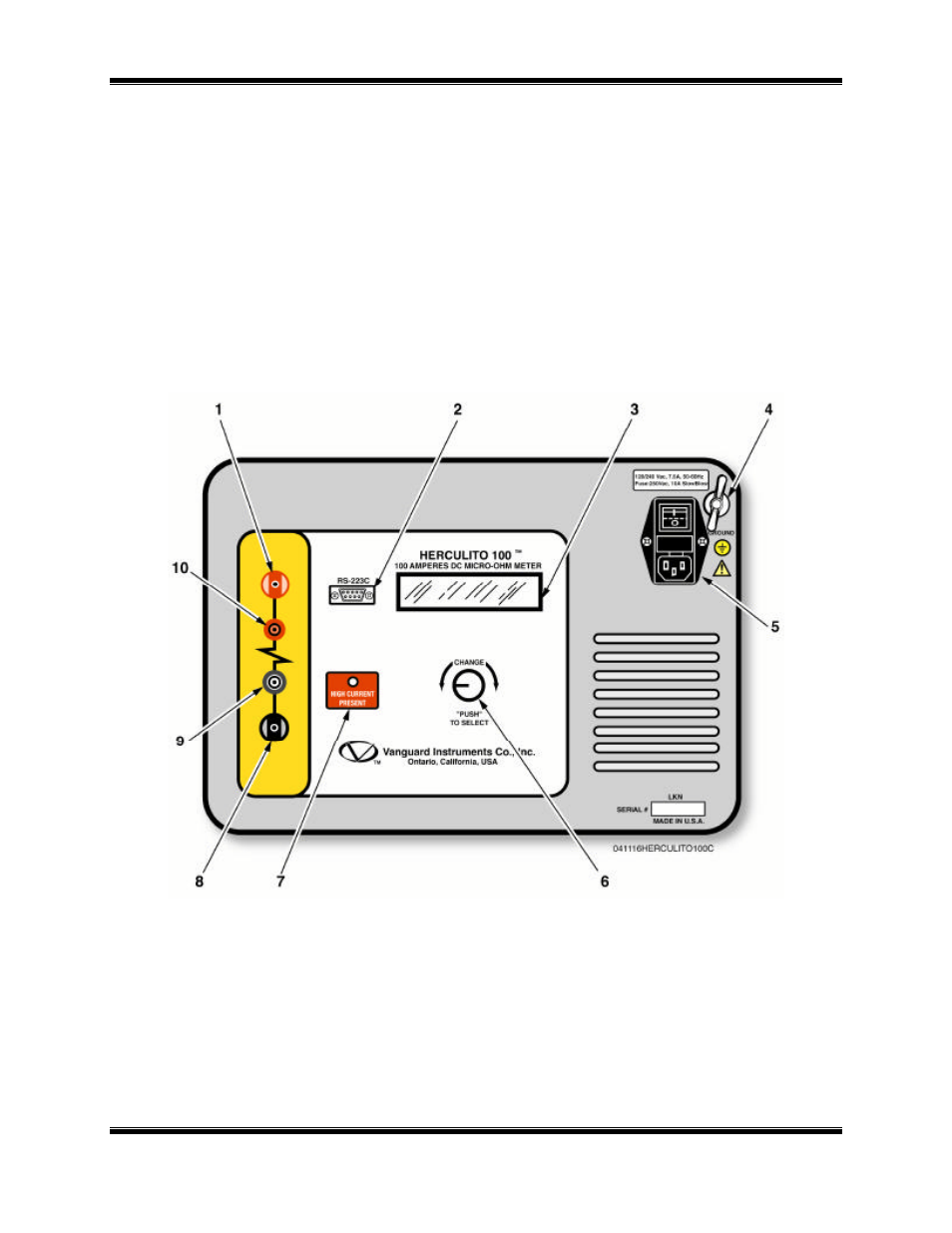

Figure 2 Herculito Front Panel
