Operating Procedures DMOM-100™
3
3.0 CONTROLS AND INDICATORS
(See Figure 1.0 and refer to Table 2.0).
The DMOM-100  controls and indicators
are shown in a panel illustration (see Figure
1.0). Pointing leader lines reference each
item in the figure with an index number.
Each index number is cross-referenced to a
functional description in Table 2.0, which
describes the purpose of each item on the
control panel. Although the purpose of
these controls and the display may seem
obvious, users should become familiar with
them before attempting to use the DMOM-
100
. However, accidental misuse of the
controls will usually cause no serious loss of
data or equipment damage. First-time users
should review and become familiar with the
Safety Summary located in the front section
of this manual.

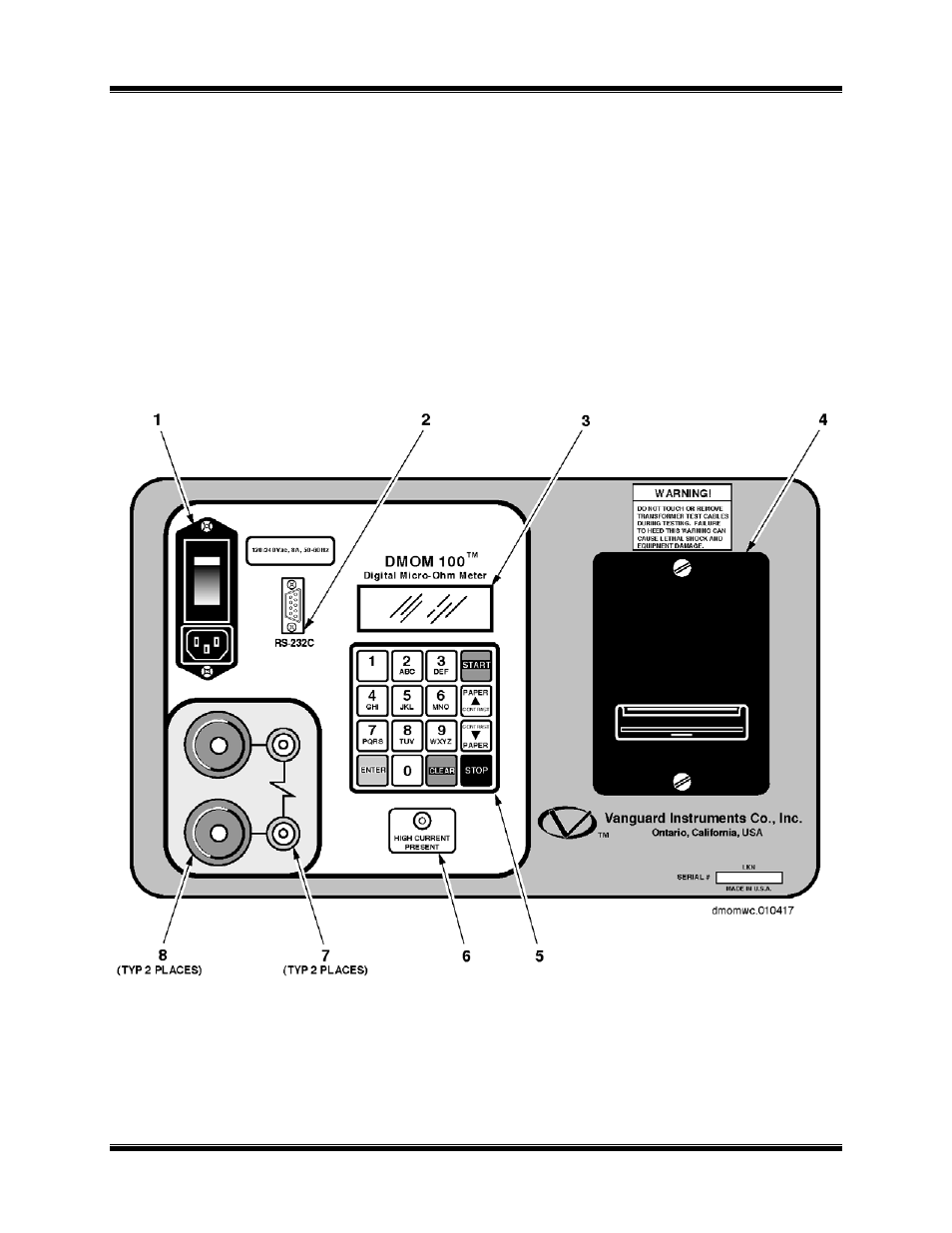

Figure 1.0 DMOM-100  Control Panel (Controls and Indicators)
