5 KIT/NODE/IQ25x Installation Instructions TG200595 Issue 1/B 21/11/06
Installation Instructions KIT/NODE/IQ25x
2 INSTALLING A NODE IN IQ250/251 USING KIT/NODE/IQ25X
(Continued)

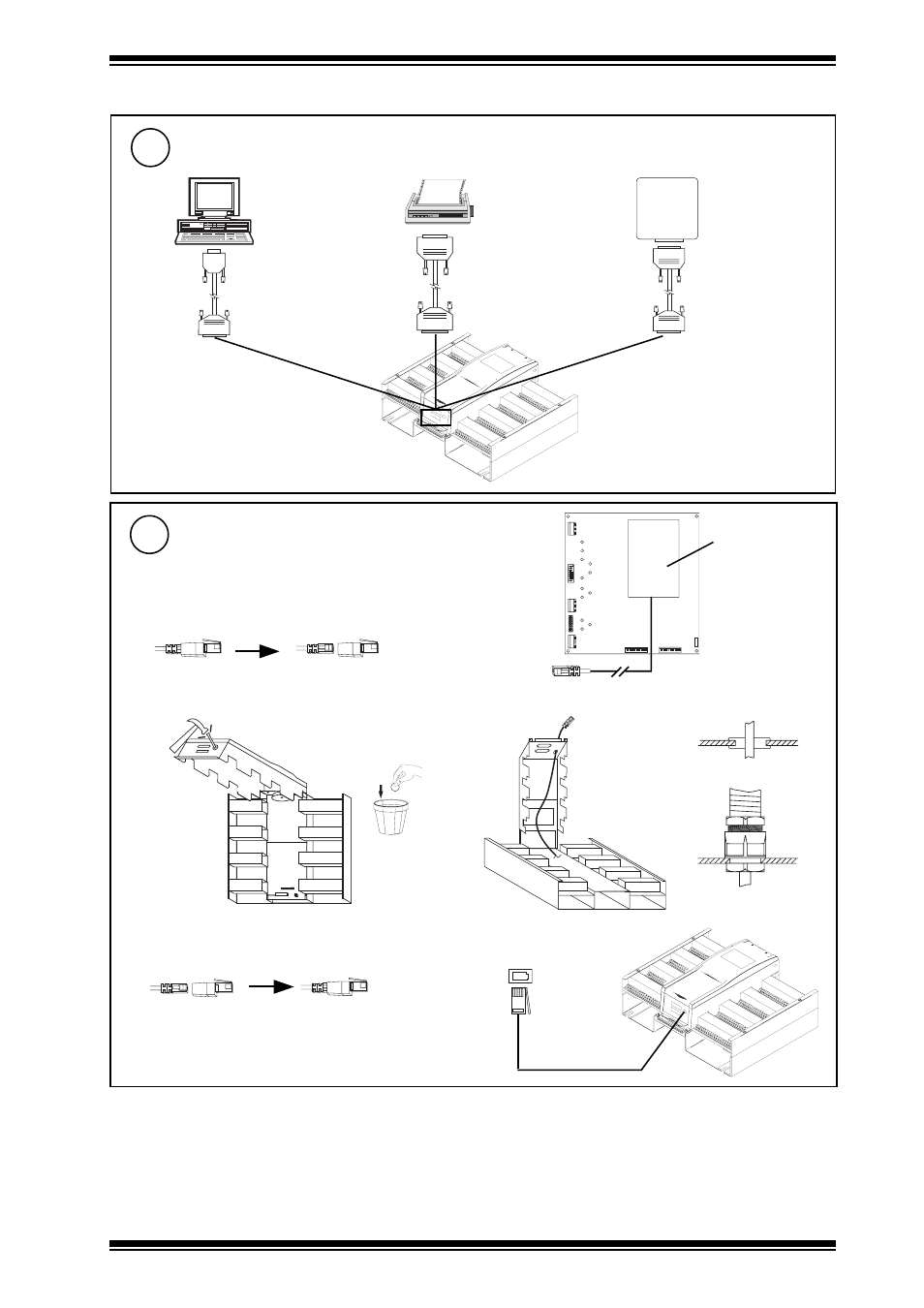

Connect Device to IQ25x RS232/Modem Connector
22
CNC2 PNC2 TMNE
Modem/
Terminal
Adaptor
9 Way D type Female
CABLE/58-0750
25 Way D type Male
25 Way D type Male
Special cable, pins 3,7,20
connected straight through
25 Way D type Male
25 Way D type Male
Standard 24 way cable
wired 1 to 1 through to
25 to 25
25 Way D type Female
J7 E T1
J1 6 D ev B
J1 5 D ev A
J9
J8
La n B
La n A M od em
Route Special Device Cables
For ENC, MNC, TMNH
23
(d) Route cable through hole
(b) Identify cable
e.g. TMNH
(f) Connect to device
Integral modem
(TMNH only)
MNC, TMNH
PSTN
(e) Replace TMNH adaptor plug
For TMNH only
(c) Knock out hole
(a) Remove TMNH adaptor plug
For TMNH only
either pierce grommet
or use copex gland
