connect power

7

3.1 installation - Mounting

(continued)

Warning: This apparatus must be earthed (grounded)

(via supply earth (ground) terminal)

Do not

SWitcH on

terminal size 0.5 to 2.5 mm

2

(20 to 14 AWG)

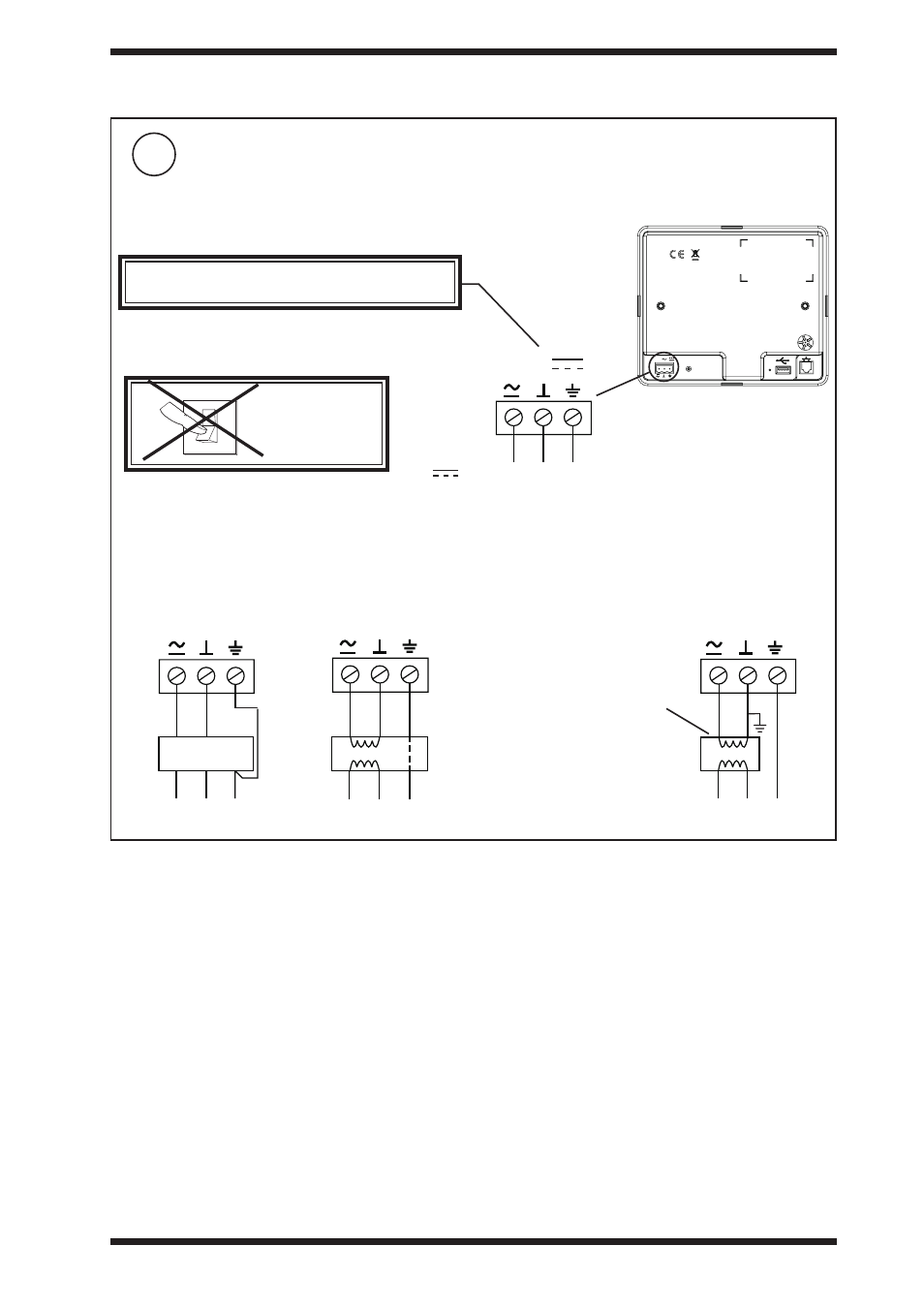

24 Vdc ±10 % at 3 W, or 24 Vac ±10 %, 50/60 Hz at 8 VA

230 Vac

Using 230 Vac/24 Vac transformer with one side earthed

(grounded)

100 to 240 Vac

Using 230Vac/24Vac

transformer with isolated

output (e.g. ACC/ 24 VAC)

Using 24 Vdc power supply

(e.g. PSR/230/24-1.3)

230 Vac

SERVICE

24V

PSR/230/24-1.3

L

N

E

24 Vdc

E

0 V

L

N

E

24 Vac

E

ACC/24VAC

L

N

24 Vac

E

24 V

~

Some transformers are

earthed (grounded) on

one side of the secondary.

If so ensure the earthed

(grounded) side is connected

to the central terminal of

the power connector. If the

polarity of the connection

is incorrect the unit will not

power up. If this happens

swap the left and central

connectors.

24 Vac 24Vac E

24 Vdc +24V 0V E

~

IQView4 Installation Instructions TG201038 Issue 1, 12/02/2009

3

installation instructions

iQView4
