background image

5

WaveStation 3000 Getting Started Guide

B

A

H

F

G

E

Adjust viewing position by gently pulling handle
away from sides and rotating.

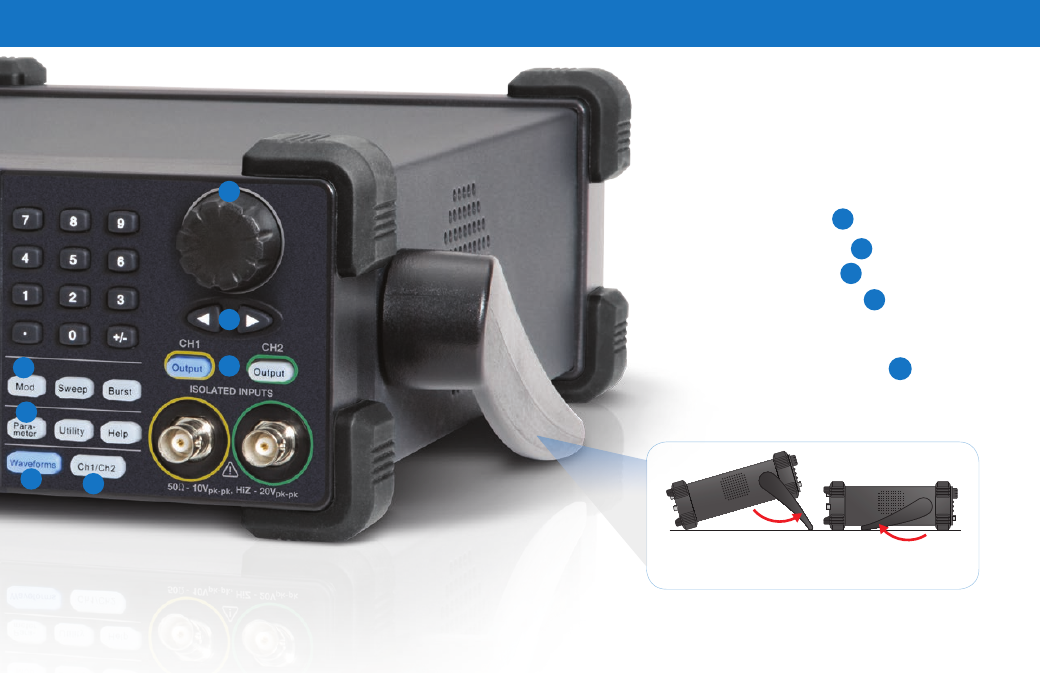

Generate an Arbitrary Waveform

1. Press Waveform button

B

.

2. Press More softkey button

C

.

3. Press Arb softkey button

C

.

4. Press Built-in softkey button

C

.

5. Use softkeys to select arbitrary waveform type

from 30+ built-in waveforms.

6. Press CH1 or CH2 Output button

G

to output the waveform.

D
