Qphy-uwb software option, Overview of uwb analysis mode – Teledyne LeCroy QPHY-UWB User Manual
Page 9
QPHY-UWB Software Option
QPHY-UWB-OM-E Rev C
9
OVERVIEW OF UWB ANALYSIS MODE

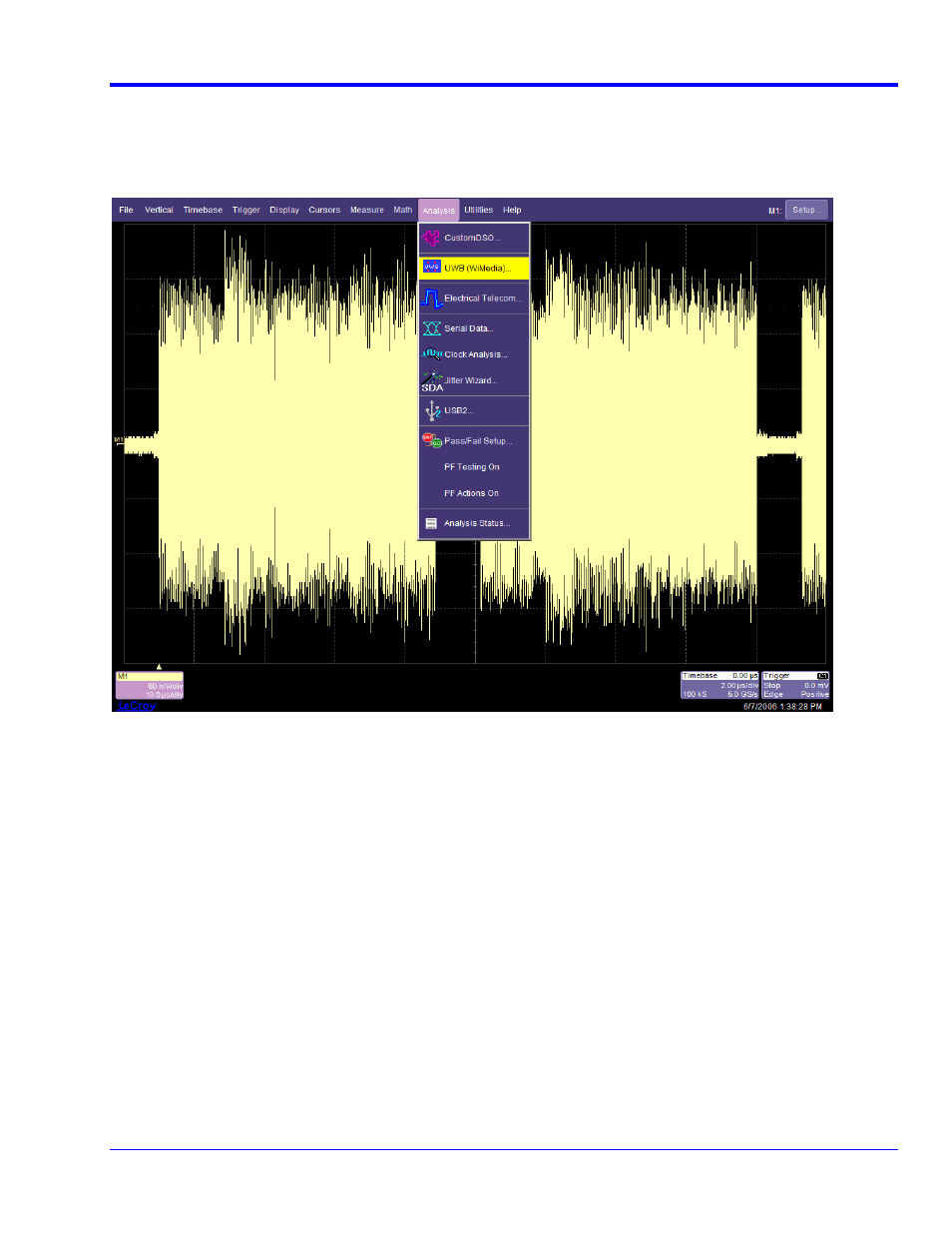

Once installed, the UWB (WiMedia) selection will appear in the Analysis menu. This is the main entry point into
the UWB analysis mode. Notice that the packet to be analyzed displayed on the screen below is in Memory 1,
M1. Click UWB (WiMedia) to enter the UWB analysis mode.
