24

920456 Rev B

Transition Time Tests 2.5

Transition times are measured relative to the measured B0/B1 levels and rescaled to give the results
in Unit Intervals. The slowest rising edge and slowest falling edge are displayed and saved in the
report.

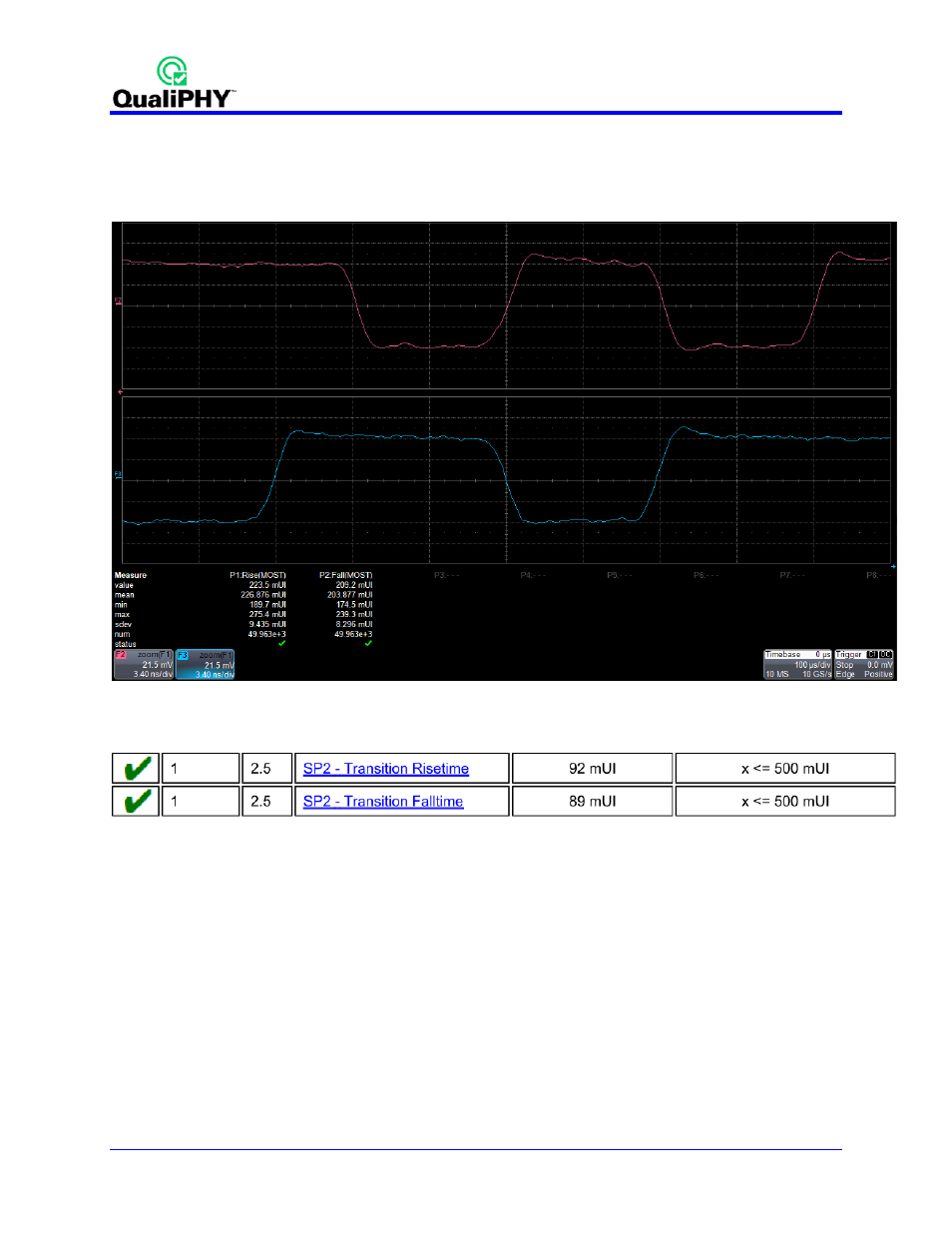

Figure 20 - Oscilloscope Configuration after the Transition Time Tests

Figure 21 - Transition Time Results
