QPHY-MOST150o Operation
After pressing Start in the QualiPHY menu, the software instructs how to set up the test using pop-up
connection diagrams and dialog boxes.

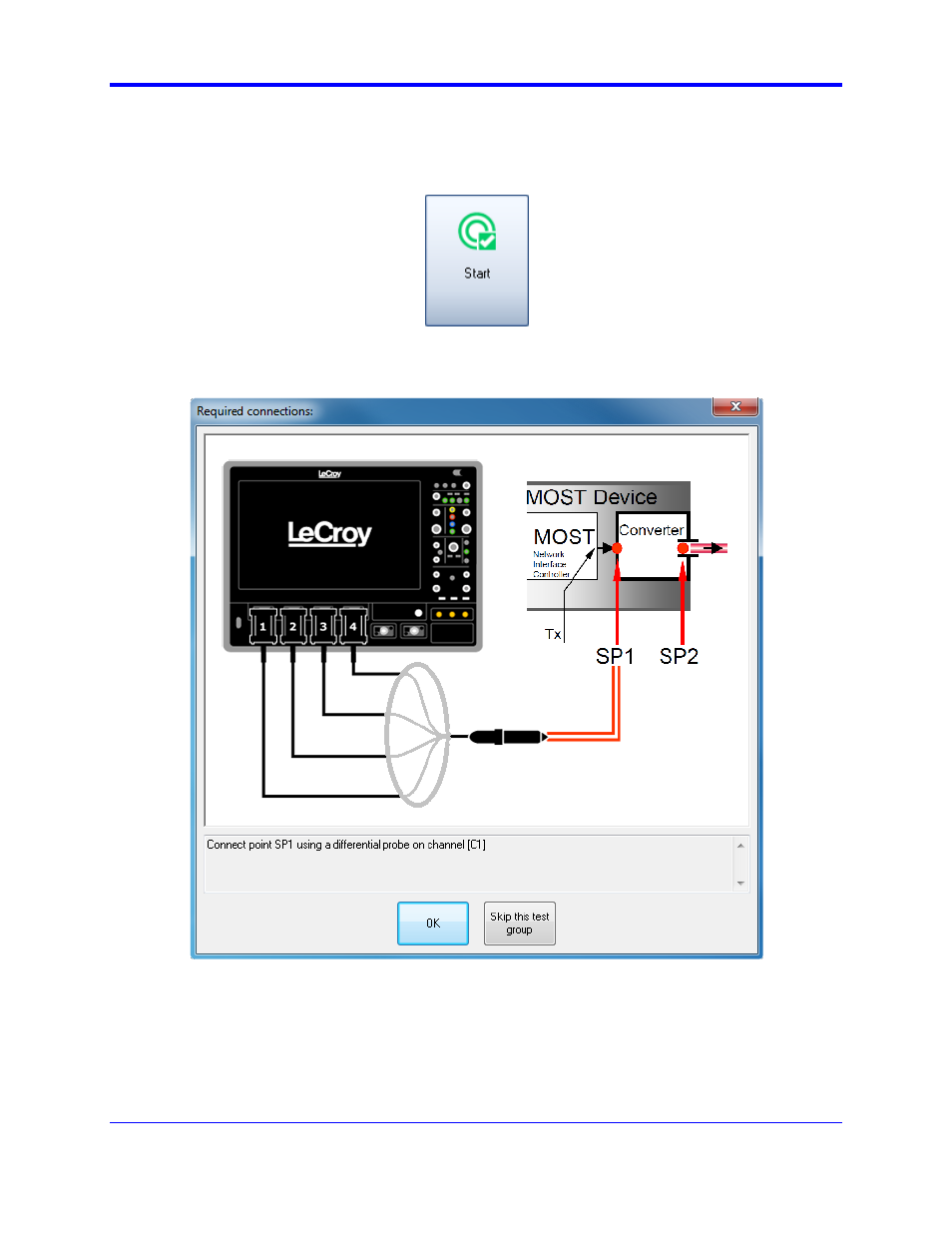

Figure 7 - Start Button
Figure 8 - Example of pop-up connection diagram and dialogue box
