10
920456 Rev B
connection. Please refer to the QualiPHY Operator’s Manual for explanations on how to use Scope
Selector and other QualiPHY functions.
Accessing the QPHY-MOST150o Software using QualiPHY
This topic provides a basic overview of QualiPHY’s capabilities. Please refer to the QualiPHY Operator’s
Manual for detailed information.
Access the QPHY-MOST150o software using the following steps:
1. Wait for the oscilloscope to start and have its main application running.
2. Launch QualiPHY from the Analysis menu if installed on the oscilloscope or from the desktop
icon if installed on a host computer.
3. From the QualiPHY main window (as follows), select Standard, then MOST150 oPhy from the
pop-up menu (if not already selected). If you check the Pause on Failure box (circled) QualiPHY
prompts to retry the measure whenever a test fails.

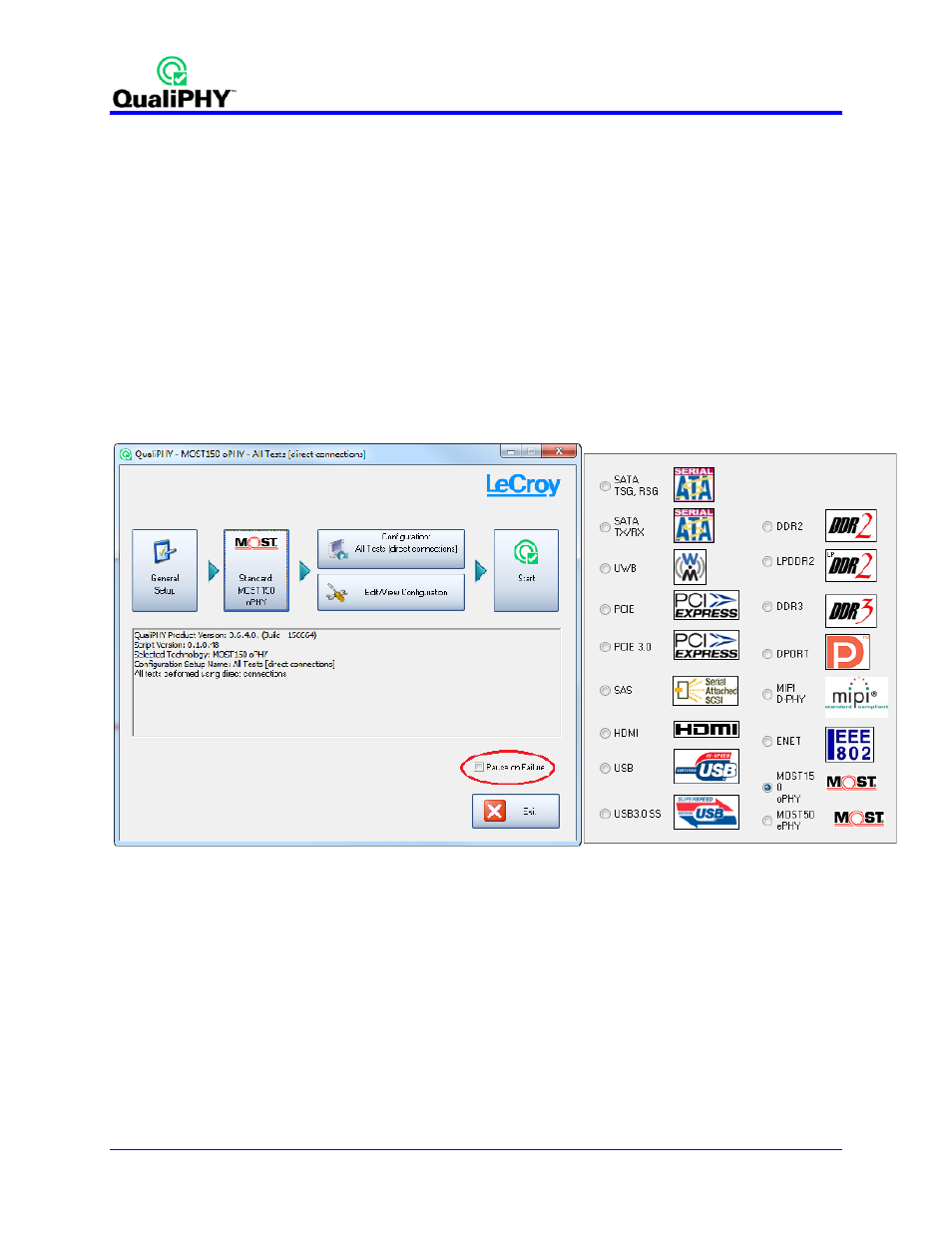

Figure 3 - QualiPHY main menu and compliance test Standard selection menu
