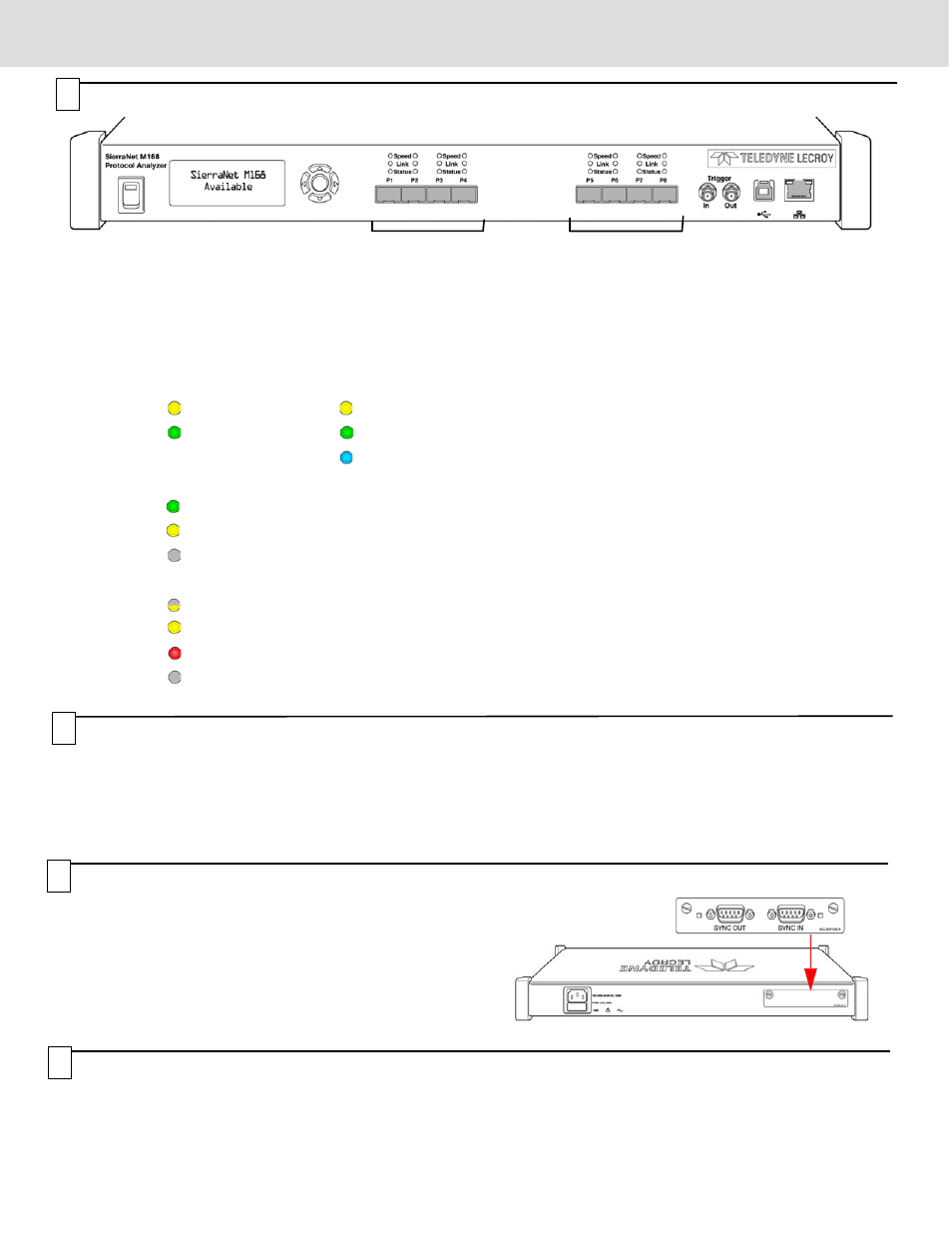

Front Panel Description
Features
The Analyzer has the following features on the front:
[1] LED Indicators for P1-P4 and P5-P8 for Speed, Link and
Status:
Speed LEDs
The LEDs for SPEED illuminate as follows:
GBE Fibre Channel
Yellow Reserved 4G/2G/1G FC
Green 10 GigE 8G FC
Blue N/A 16G FC
Link Activity LEDs
Green Network activity Detected
Yellow Link up, no activity
No Color No link
Status LEDs
Yellow Blinking Waiting for trigger
Yellow Solid Triggered
Red Error detected
No Color No Activity
Please see the SierraNet M168 User Manual for details on
the Speed, Link and Status LEDs.
[2] Power Switch
[3] Status and Configuration LCD Display
[4] Front Panel 5-Buttons keypad
[5] SFP+ 10 GigE / FC connectors for ports 1-4
[6] SFP+ 10 GigE / FC connectors for ports 5-8
[7] External Trigger Input (Trigger In)
[8] External Trigger Output (Trigger Out)
[9] USB Port for host connectivity
[10] Ethernet Port for network connectivity
2 3 8 9 6
1
10 5 7
1 1 1
4
4
Front Panel Buttons
The following parameters can be viewed and/or configured directly on the front panel, using the display and 5 button keypad:
5
Installing the Software
1. Insert the Installation CD-ROM into the CD drive on the host machine. The installation automatically starts setup,
unless Auto Run is off. In that case, select the CD-ROM from “My Computer” and click Setup. Follow the instructions to
complete the installation. Once installation is complete the Net Protocol Suite will reside on the host machine’s drive.
2. Restart the computer before using the software.
Note: If you get an error message during installation of the drivers, consult your system administrator.
7
- Display of IP address
- Display of model name: “SierraNet M168”
- Connection status
- Display of unit name
- IP configuration
• IP mode dynamic, or
• IP mode static
Rear Panel Description Expansion Slot
The analyzer expansion slot at the back of the SierraNet M168
system can accommodate different Expansion cards, like the
SYNC Expansion Card that can be used to daisy-chain multiple
analysis systems or the Power Expansion Card that can provide
and control power to devices under test.
Note: Do not open the enclosure except for adding expansion
cards. No user serviceable parts are inside.
