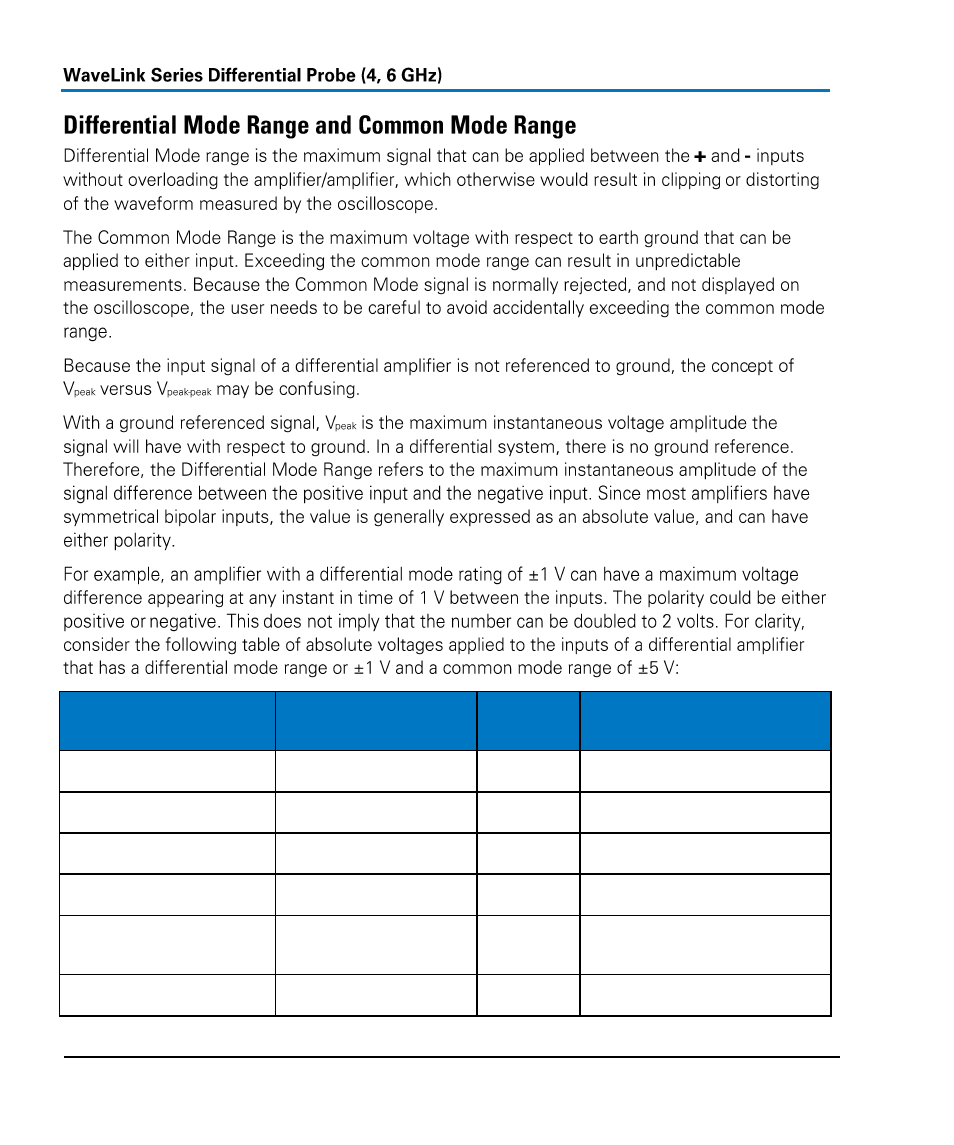

Teledyne LeCroy WaveLink Differential Probe Series (4, 6 GHz) - Manual (Page 100)

94 923175-00 Rev A
Voltage on + input to
ground
Voltage on – input to
ground
Difference Comment
+1.5 V +0.8 V +0.7 V OK: within ±1 V range
-1.5 V -0.8 V -0.7 V OK: within ±1 V range
+0.8 V -0.1V +0.9 V OK: within ±1 V range
+1.0 V -1.0 V +2.0 V Out of range: exceeds ±1 V
+6.5 V +6.0 V 0.5 V Exceeds ±5 V common mode
range
1.5 Vpk-pk sine Ground 0.75 Vpeak OK: within ±1 V range
