CP030 Current Probe
12 922173-00 Rev A
Description Minimum Requirements Test Equipment Examples
Patch Cables (4 required) Male Banana to Male Banana, 12" Pomona B-12-0 (black) or
Pomona B-12-2 (red)
BNC Adapter BNC Male to Dual Banana Jack Pomona 1296
Preliminary Procedure
1. Remove the probe compensation box circuit board by removing the two screws from the cable
end of the compensation box and sliding the circuit board out of the box.
2. Connect the CP030 compensation board to the channel 1 input of the oscilloscope through the
ProBUS extension cable, and completely close the probe slider.
3. Turn the oscilloscope on and allow at least 30 minutes warmup time for the CP030 and test
equipment before performing the Verification Procedure.
Adjust LF Accuracy

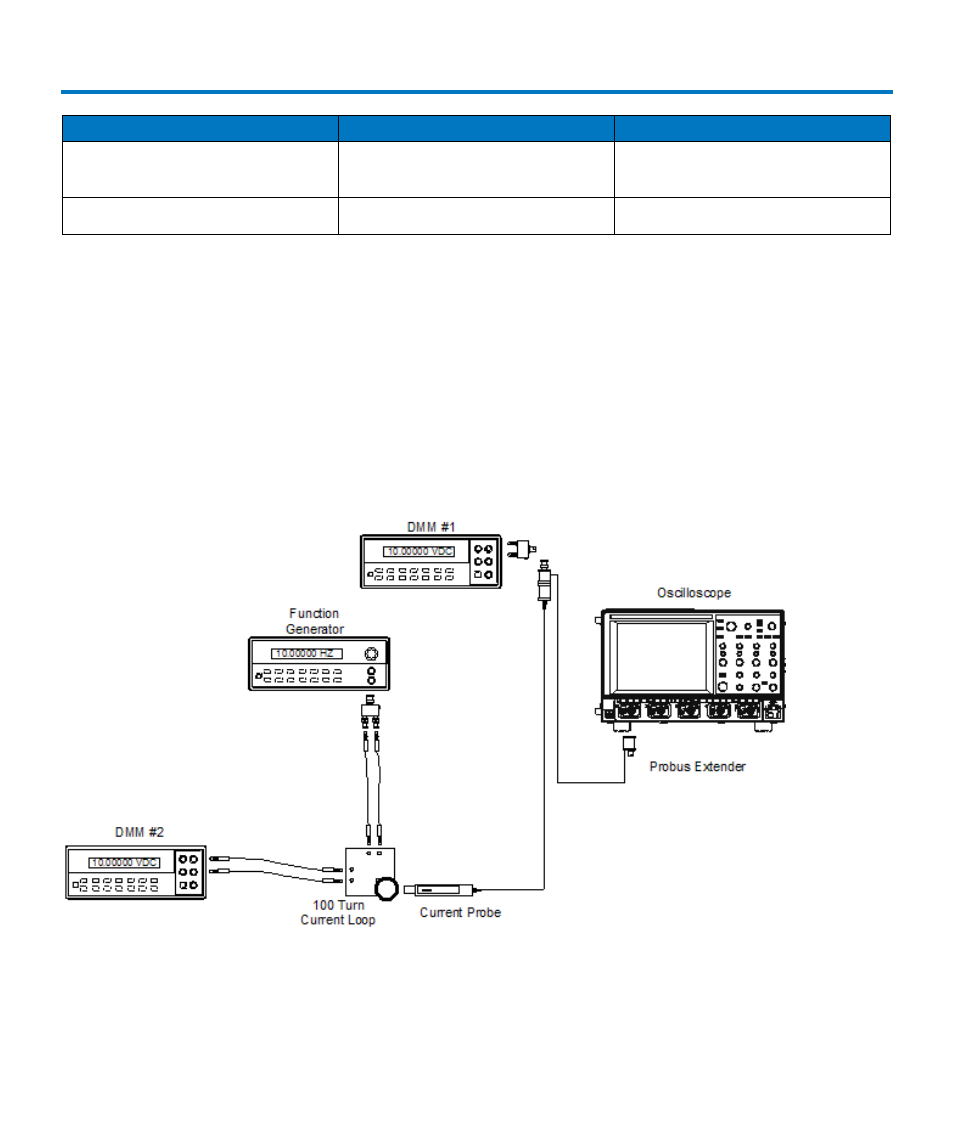

Figure 2. LF accuracy adjustment set up.
1. Set the Function Generator to 50 Hz, sinewave output at 3 Vrms with 50 Ω output.
2. Connect BNC male of ProBus extension to DMM #1 using BNC Female to Dual Banana adapter.
