Teledyne LeCroy WaveSurfer MXs-B Quick Reference Guide - Manual (Page 7)

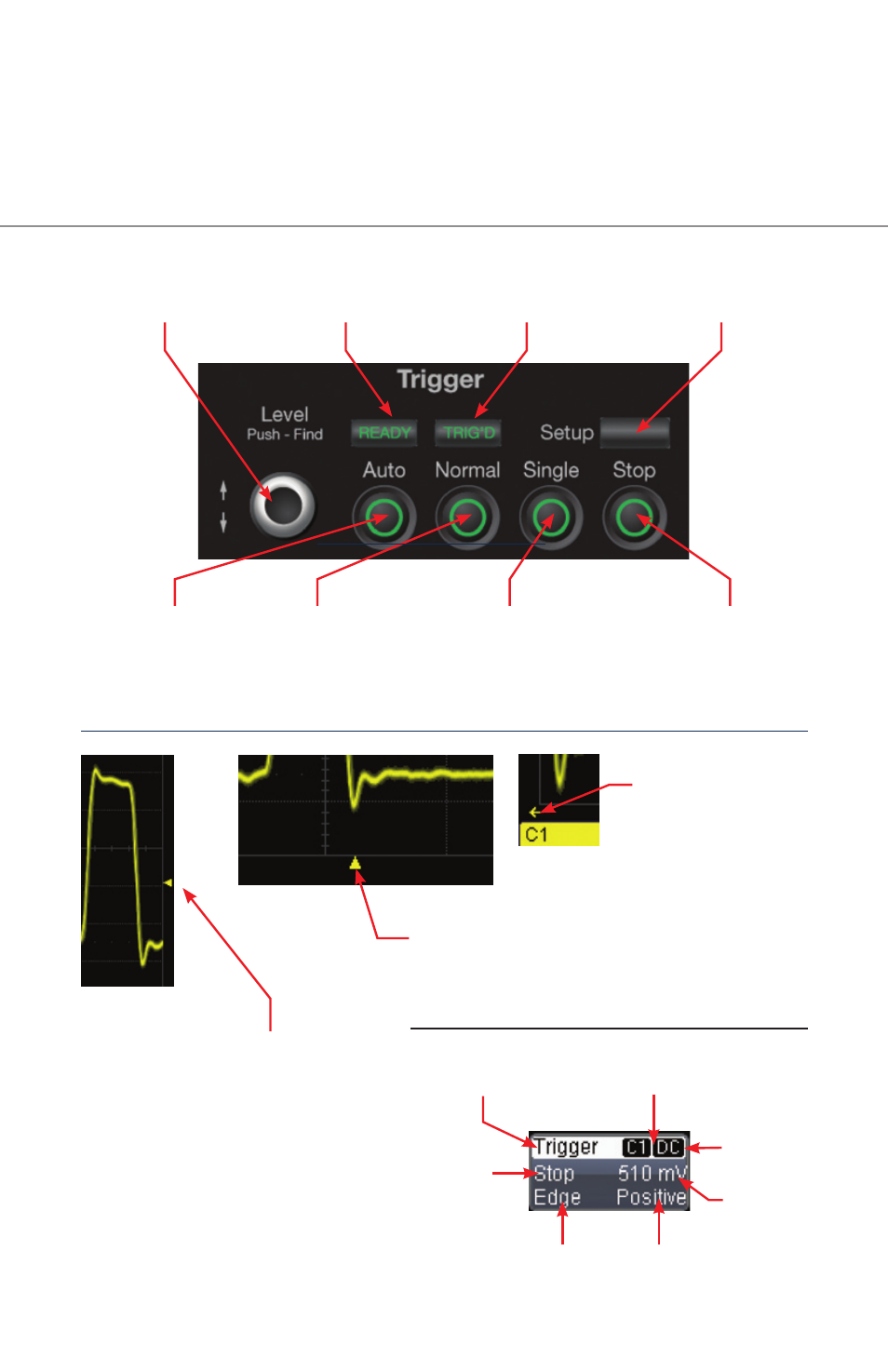

Sets the trigger level
— push to set to 50%. Is lighted when the
trigger is armed. Is lighted and stays
lit after a trigger.
Triggers even
if the trigger
conditions are
not met. Triggers whenever
the trigger conditions
are met.
Trigger Level
Indicator
Trigger Position
Indicator
Post
Trigger
Indicator
Trigger
Status
Trigger
Source
Trigger
Slope
Trigger
Mode
Trigger
Level
Trigger
Coupling
Triggers once (single-
shot acquisition) when
the trigger conditions
are met. Cancels the
acquisition in Auto,
Normal, or Single
trigger mode.
Touch to access the
trigger setup menu.
Press to open the
trigger setup menu.
7
Trigger Control
