Overview
WaveSurfer contains WaveStream
technology that closely simulates the
look and feel of a lively, analog display
by providing a fast display update rate.
You may adjust the intensity of the
trace(s), and sample at the full scope
sampling rate while in WaveStream
mode, which significantly enhances
glitch finding capability.
5
Math and Measure in WaveStream Mode
WaveStream traces comprise many overlayed traces. While in WaveStream
mode, math and measurements are applied only to the last trace in the WaveStream
acquisition. A math trace will not have the same appearance as a channel does in
WaveStream mode, and measurements will accumulate more slowly compared
to real-time sampling mode.
Zooming in WaveStream Mode
WaveStream data is pixilated data with 256 different intensity levels. If you zoom a
WaveStream trace, you will zoom pixilated data. Therefore, it is recommended that
you toggle to real-time sampling mode for most zooming.

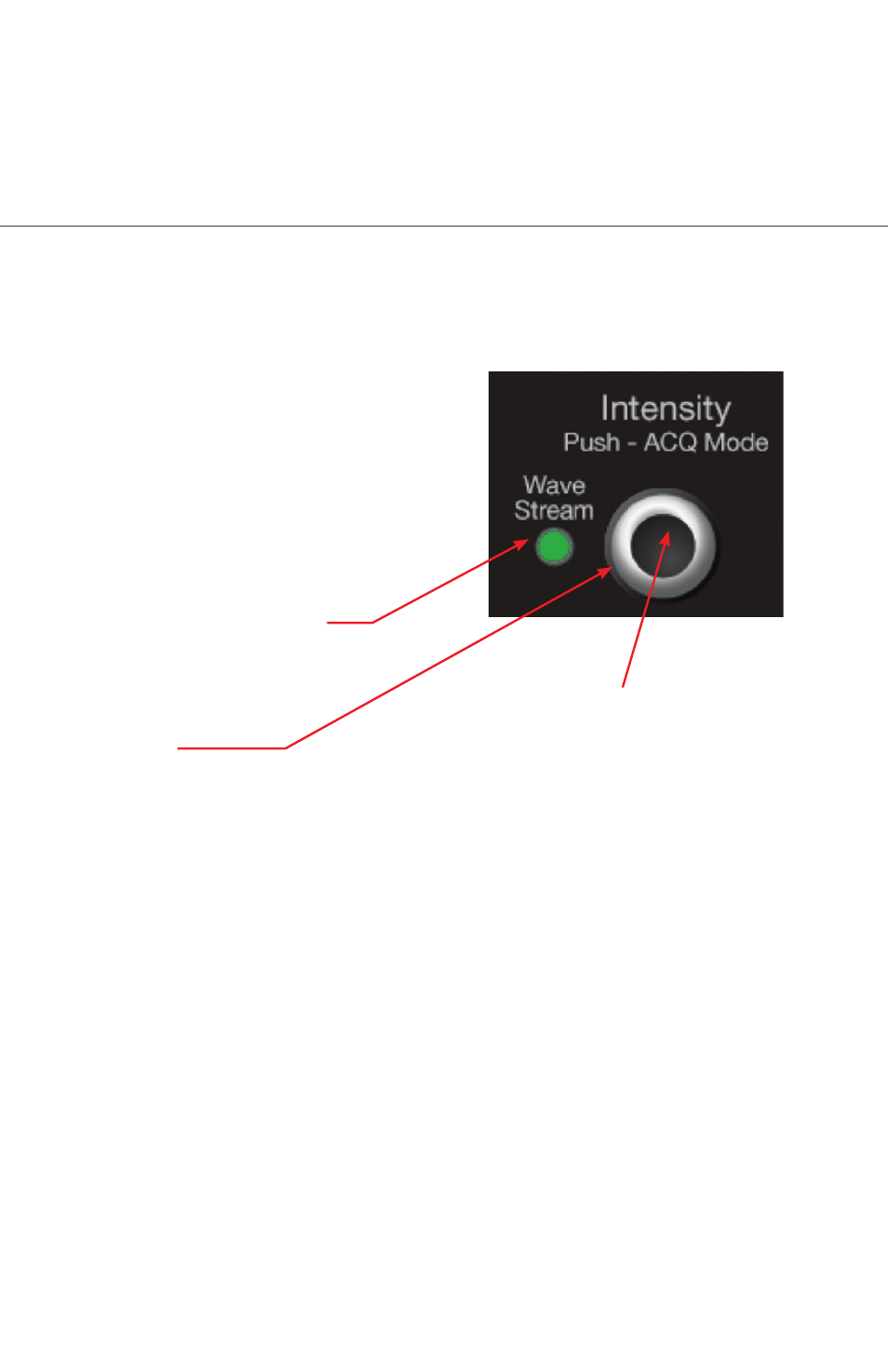

Press Knob
to toggle at any time
between real-time sampling
and WaveStream fast
viewing mode.
Turn Knob
to adjust intensity in either WaveStream fast
viewing mode or real-time sampling mode.
WaveStream Indicator Light
is lighted when WaveStream
fast viewing mode is ON.
WaveStream
™
Fast
Viewing Mode
