10

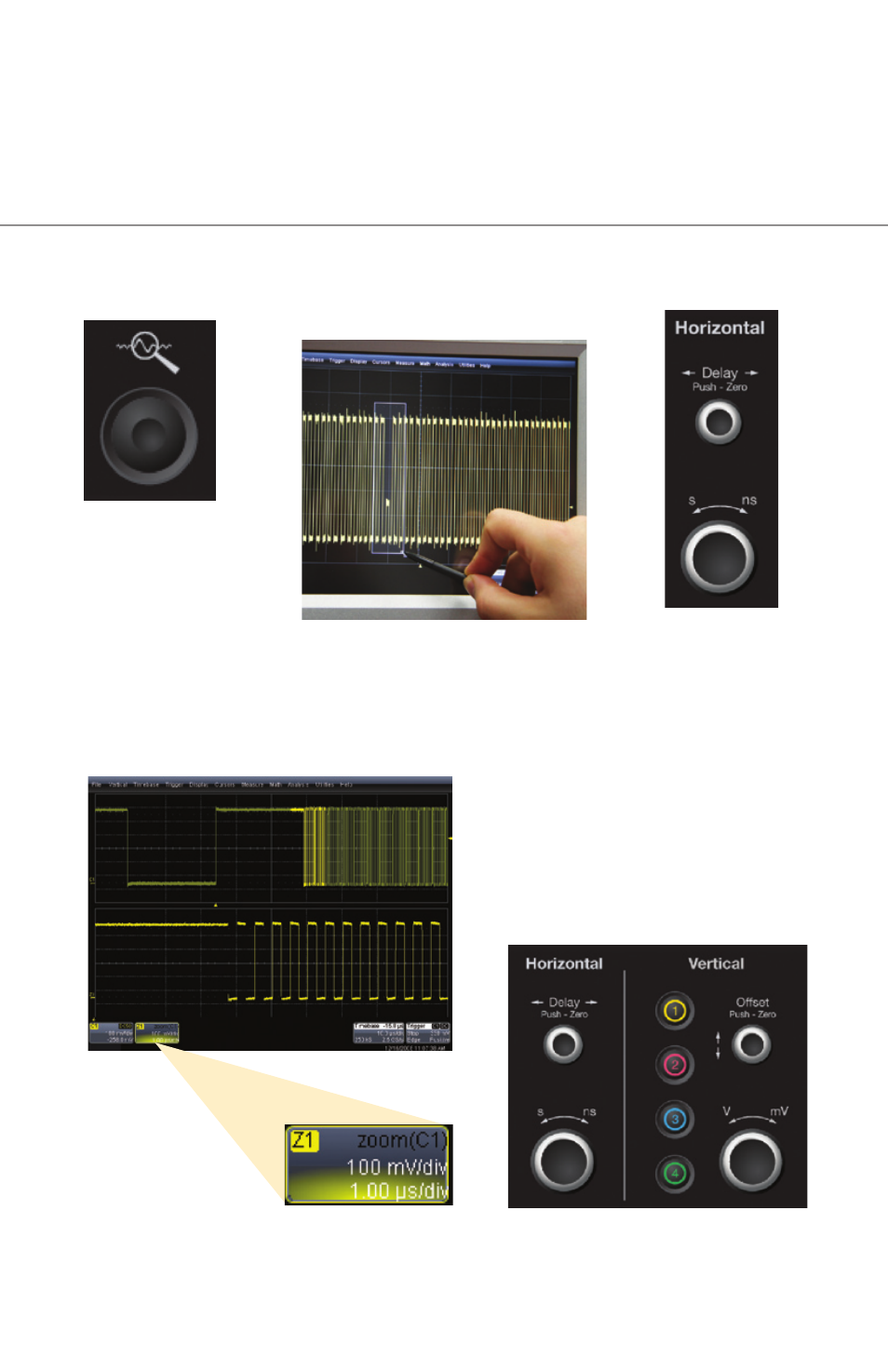

There are three ways to zoom with the WaveSurfer.
Use whichever method feels best.
QuickZoom
Button
Press the
button and all
channels displayed will
be zoomed in separate
grids. Will also UNDO
any zooms.
Zoomed Area is shown
Use Horizontal and Vertical controls
to adjust memory scale and position
(if desired).
Draw a Zoom Box
Using the stylus, outline the
area you wish to zoom.
Horizontal
Adjust
Stop your
acquisition, and
use the delay and
horizontal adjust
knobs to position
a subset of your
acquisition.
1
2
3
Zoom your Signals
Zoom Descriptor Label
shows zoom scaling.
923130-00 RevA
