ASUS P4V533-MX motherboard user guide 2-11
2.4.2 Chipset
The Chipset menu items allow you to change the advanced chipset settings. Select
an item then press Enter to display the sub-menu.
The following sub-items appear when the item Configure DRAM Timing by
SPD is set to Disabled.
Select Screen
Select Item
+- Change Option
F1 General Help
F10 Save and Exit
ESC Exit

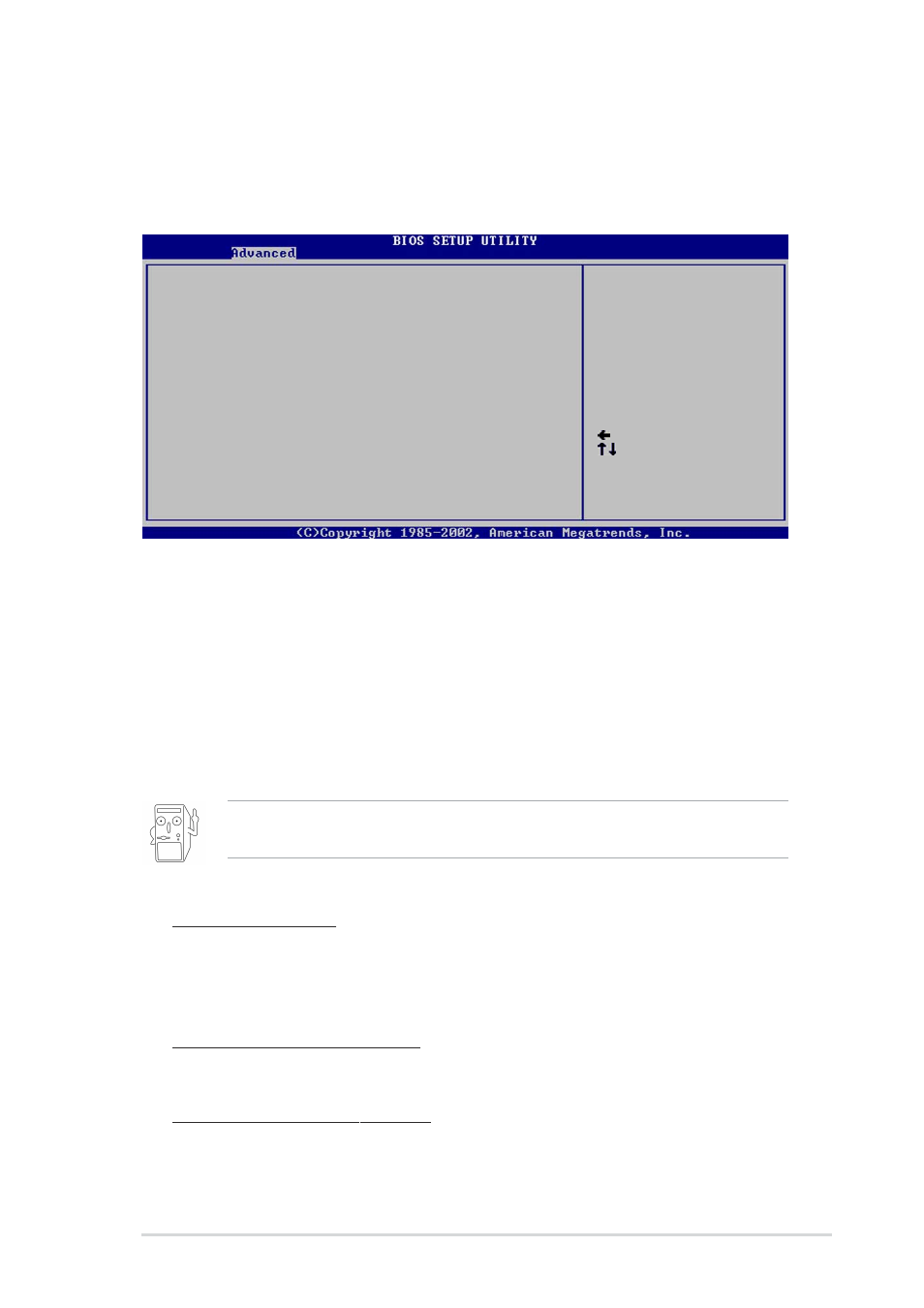

******** DRAM Timing ********
SDRAM Frequency
[Auto]
Configure SDRAM Timing by SPD [Enabled]
SDRAM Burst Length [4QW]
SDRAM Command Rate [2T]
AGP Mode [AGP 1X]
Graphics Aperture Size [64MB]
Integrated AGP [Enabled/16MB]
Primary Graphics Adapter [PCI]
AddOn/Onboard VGA Select [Auto]
SDRAM Frequency [Auto]
This item allows you to set the SDRAM operating frequency.
Configuration options: [Auto] [200Mhz] [266Mhz]
Configure DRAM Timing by SPD [Enabled]
When this item is enabled, the DRAM timing parameters are set according to the
DRAM SPD (Serial Presence Detect). When disabled, you can manually set the
DRAM timing parameters through the DRAM sub-items. Configuration options:
[Disabled] [Enabled]
CAS# Latency [2.5]
This item controls the latency between the SDRAM read command and the
time the data actually becomes available.
Configuration options: [2.0 Clocks] [2.5 Clocks]
Precharge to Active (Trp) [3T]
Configuration options: [2T] [3T]
Active to Precharge (Tras) [6T]
Configuration options: [5T] [6T]
