ASUS P4V533-MX motherboard user guide

1-19

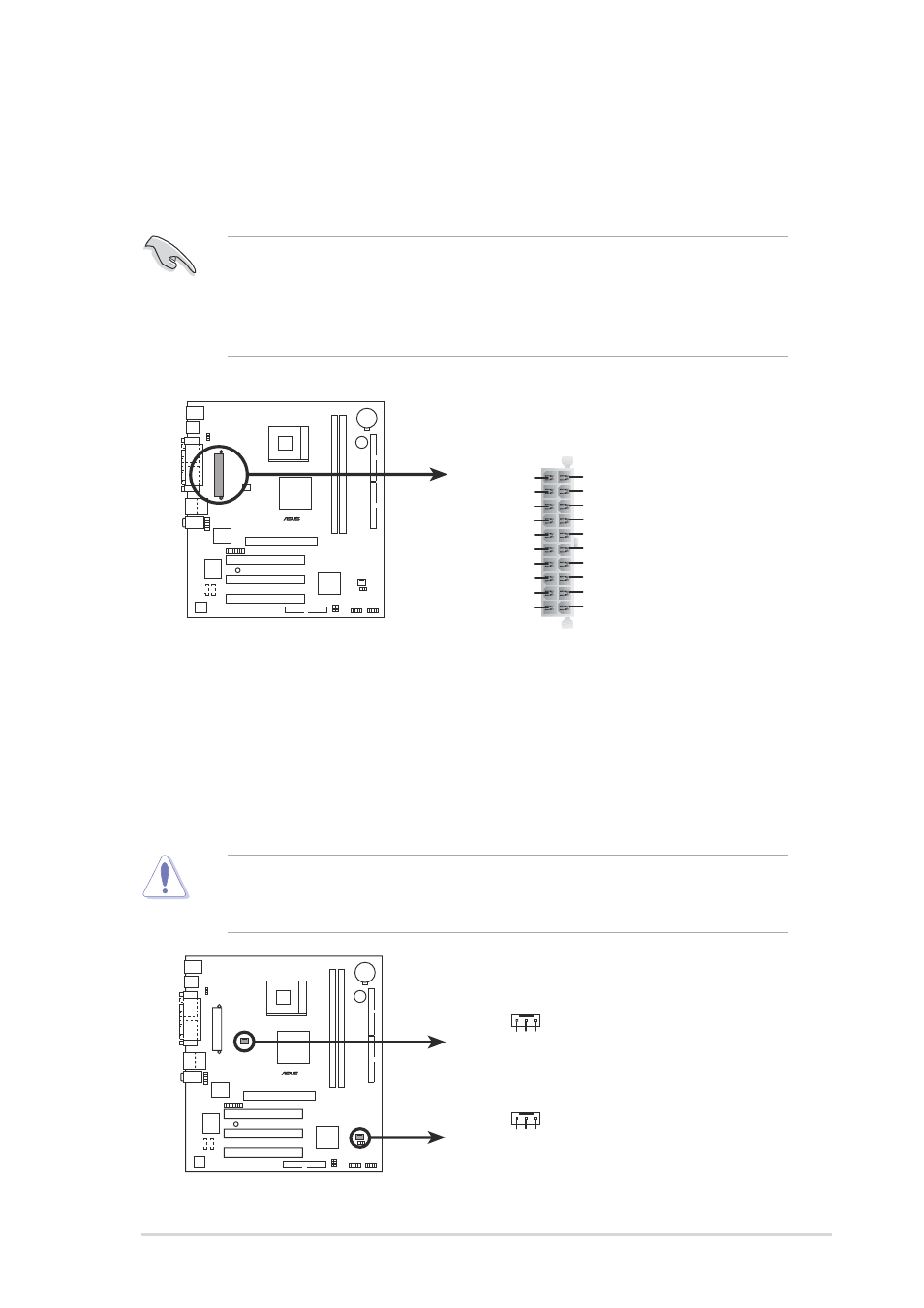

4. ATX power connectors (20-pin ATXPWR1)

These connectors connect to an ATX 12V power supply. The plugs from the
power supply are designed to fit these connectors in only one orientation. Find
the proper orientation and push down firmly until the connectors completely fit.

Make sure that your ATX 12V power supply can provide 8A on the +12V lead
and at least 1A on the +5-volt standby lead (+5VSB). The minimum
recommended wattage is 230W, or 300W for a fully configured system. The
system may become unstable and may experience difficulty powering up if the
power supply is inadequate.

5. CPU and chassis fan connectors (3-pin CPU_FAN1, CHA_FAN1)

The fan connectors support cooling fans of 350mA~740mA (8.88W max.) or a
total of 1A~2.22A (26.64W max.) at +12V. Connect the fan cables to the fan
connectors on the motherboard, making sure that the black wire of each cable
matches the ground pin of the connector.

Do not forget to connect the fan cables to the fan connectors. Lack of sufficient
air flow within the system may damage the motherboard components. These
are not jumpers! DO NOT place jumper caps on the fan connectors!

P4V533-MX

®

P4V533-MX ATX Power Connectors

ATXPWR1

+3.3VDC

-12.0VDC

COM

PS_ON#

COM
COM

COM

-5.0VDC

+5.0VDC

+5.0VDC

PWR_OK

+12.0VDC

+3.3VDC

+3.3VDC

COM

+5.0VDC

COM

+5.0VDC

COM

+5VSB

P4V533-MX

®

P4V533-MX 12-Volt Cooling Fan Power

CPU_FAN1

GND

Rotation

+12V

CHA_FAN1

GND

Rotation

+12V
