ASUS P4V533-MX motherboard user guide 1-21

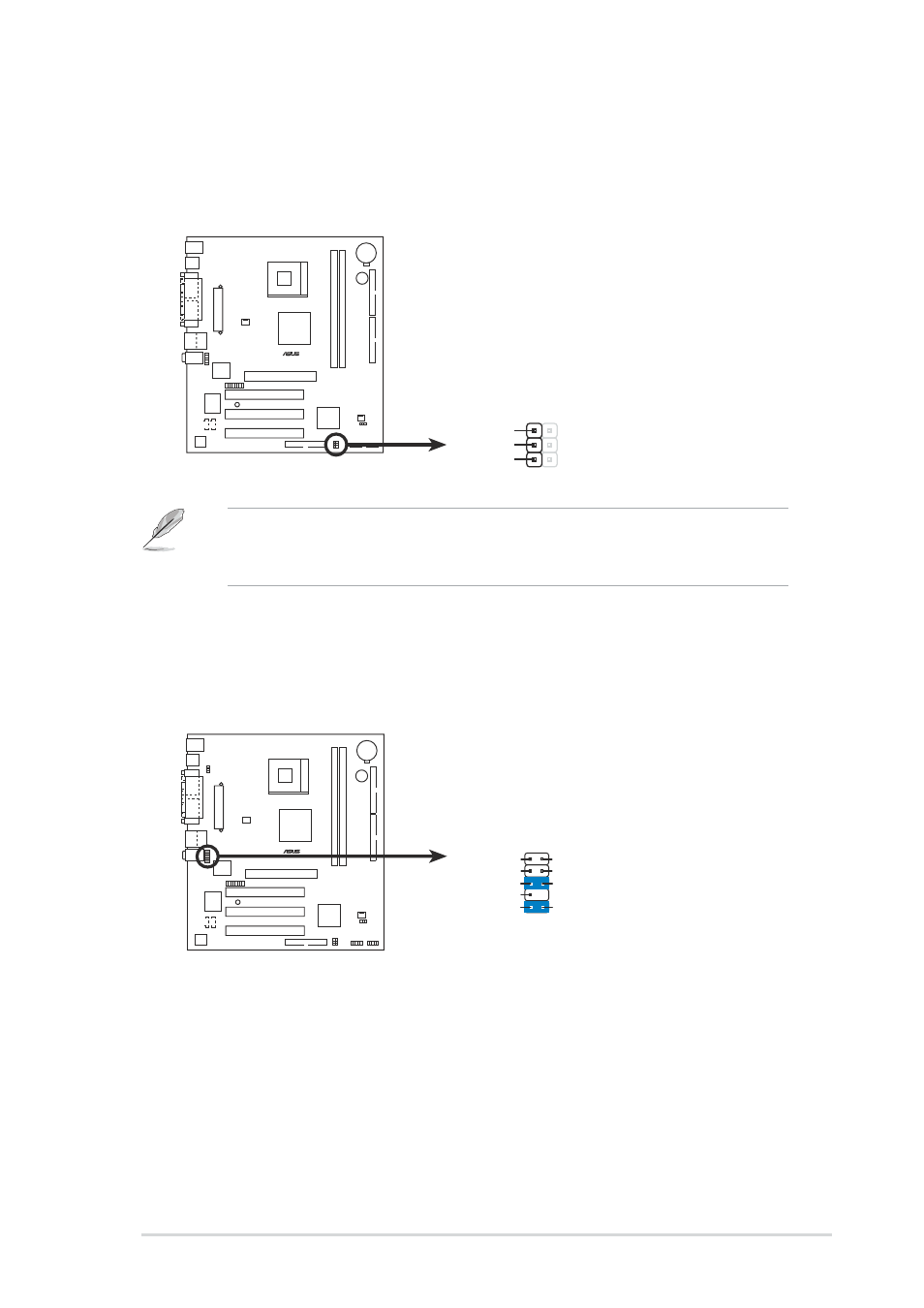

8. System Power LED connector (3-pin PWLED1)
This 3-pin connector connects to the system power LED. If your case supports
a 3-pin connector, use this connector instead of the power LED connector in
the system panel.
P4V533-MX
®
P4V533-MX PLED Setting
PLED1
1
PLED-
NC
PLED+
The 3-pin power LED connector is available only from motherboard PCB 1.03 or
later versions. The motherboard PCB version is located as a subscript beside
the motherboard model name.
9. Front panel audio connector (10-1 pin FP_AUDIO)
This is an interface for the Intel front panel audio cable that allow convenient
connection and control of audio devices.
P4V533-MX
®
P4V533-MX Front Panel Audio Connector
AUDIO1
BLINE_OUT_L
MIC2
Line out_R
Line out_L
BLINE_OUT_R
NC
MICPWR +5VA
AGND
