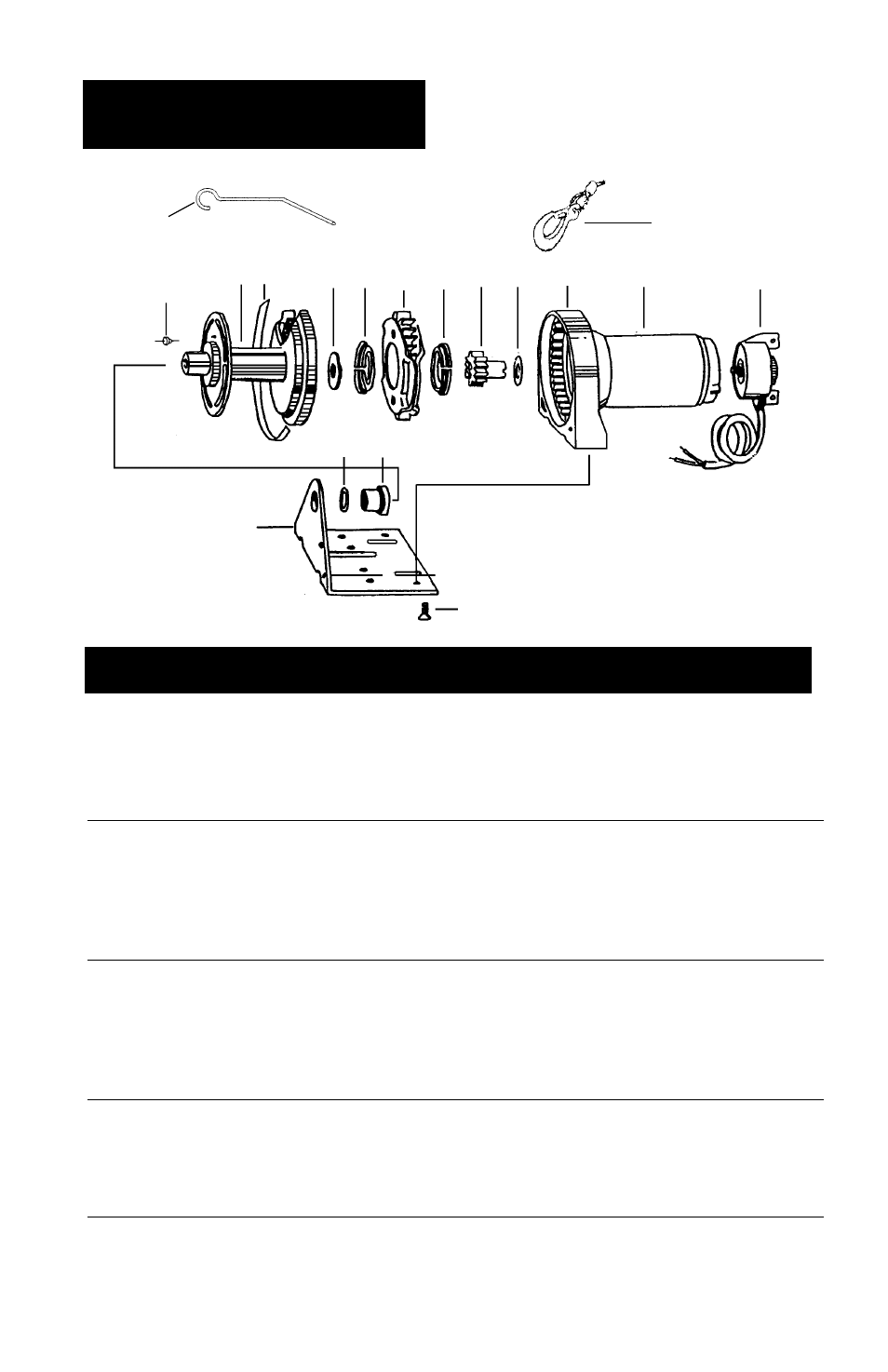

R E P L A C E M E N T
P A R T S L I S T
1
18
16
2 3 6 5 4 5 7 8 9
11 12
13
14
15
10
1 Handsaver 89-32300 1
2 Rotating Gear Drum 90-32038 1
3 Perimeter Bearing 90-23137 1
4 Nylon Step Washer 90-12418 1
5 Carrier Bearing 90-23140 2
6 Planetary Gearing Assembly 90-23138 1
7 10-Tooth Sun Gear 90-22865 1
8 Flat Thrust Washer 90-23120-08 1
9 Stationary Ring Gear w/ Needle Bearing 90-12454 1
10 12 Volt Motor w/ Ring Gear
& Needle Bearing Primed
90-32084 1
11 Shim Washer 90-23120-05 AR
12 Bushing 90-12174 1
13 5/16" Socket Head Cap Screw 90-23056-02 2
14 Main Frame Base Plate 90-41019 1
15 Repair Switch Assembly w/ two 3 ft. leads (includes
two butt splices for connecting to old harness)
1519 1
16 5/32" x 25' Wire Rope & Hook Assembly 1535 1
17 12V Circuit Breaker Assembly (Not Shown) 90-22873-03 1
18 Rope Retainer 90-12419 1
19 7,000 lb. Pulley Block (Figure 15) 2227 —
20 Hawse Fairlead (Not Shown) 1507 —
21 Roller Fairlead (Figure 17) 1560 —
22 Quickconnect (Not Shown) 1551 —
AR denotes “As Required”
Reference
Number
Description Part Number Qty
