SM-PROJ-XL Installation Manual

After the projector has been attached to the mounting
base, it can be attached to the projector mount body.

Step 6. Hanging the Projector

1. Lift the projector and position the front lip of the

mounting base (C) at the bottom-rear of the mount
body (B), and slide it into the opening. (Figure 10)

The mounting base should slide into the body with
ease with the rails engaged on both sides.

Note: If the mounting base will not slide completely

onto the mount body, the mounting base
or the mount body has been installed
backwards, or the screws (E) are in place
and must be removed.

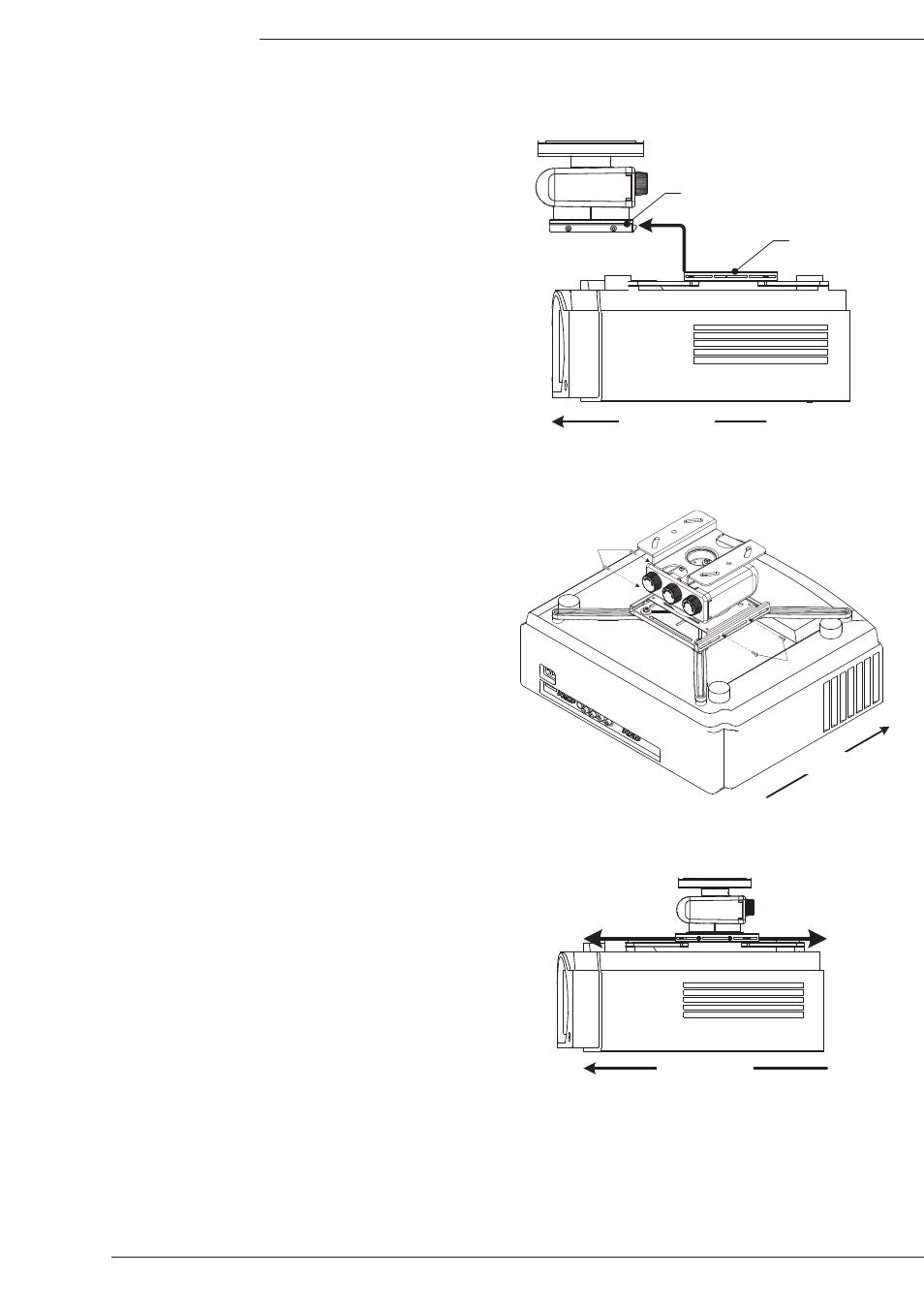

Figure 10

Figure 11

Figure 12

Projection Screen

(B)

(C)

Projection

Screen

(E)

2. Next, insert the screws (E) back into the holes on

the base as shown, and leave them loose enough
to allow the mounting base to slide forward and
backward. (Figure 11)

Note: Lift the projector some when threading in the

screws to avoid cross-threading.

3. Now let the projector hang from the mount. If the

projector leans forward or backward, slide the base in
the mount body to correct the imbalance. (Figure 12)

4. After the natural position for the best balance is found,

tighten all 4 screws (E) securely using the 3mm Allen
wrench (T2).
