DDR2 SODIMM

Product Specification

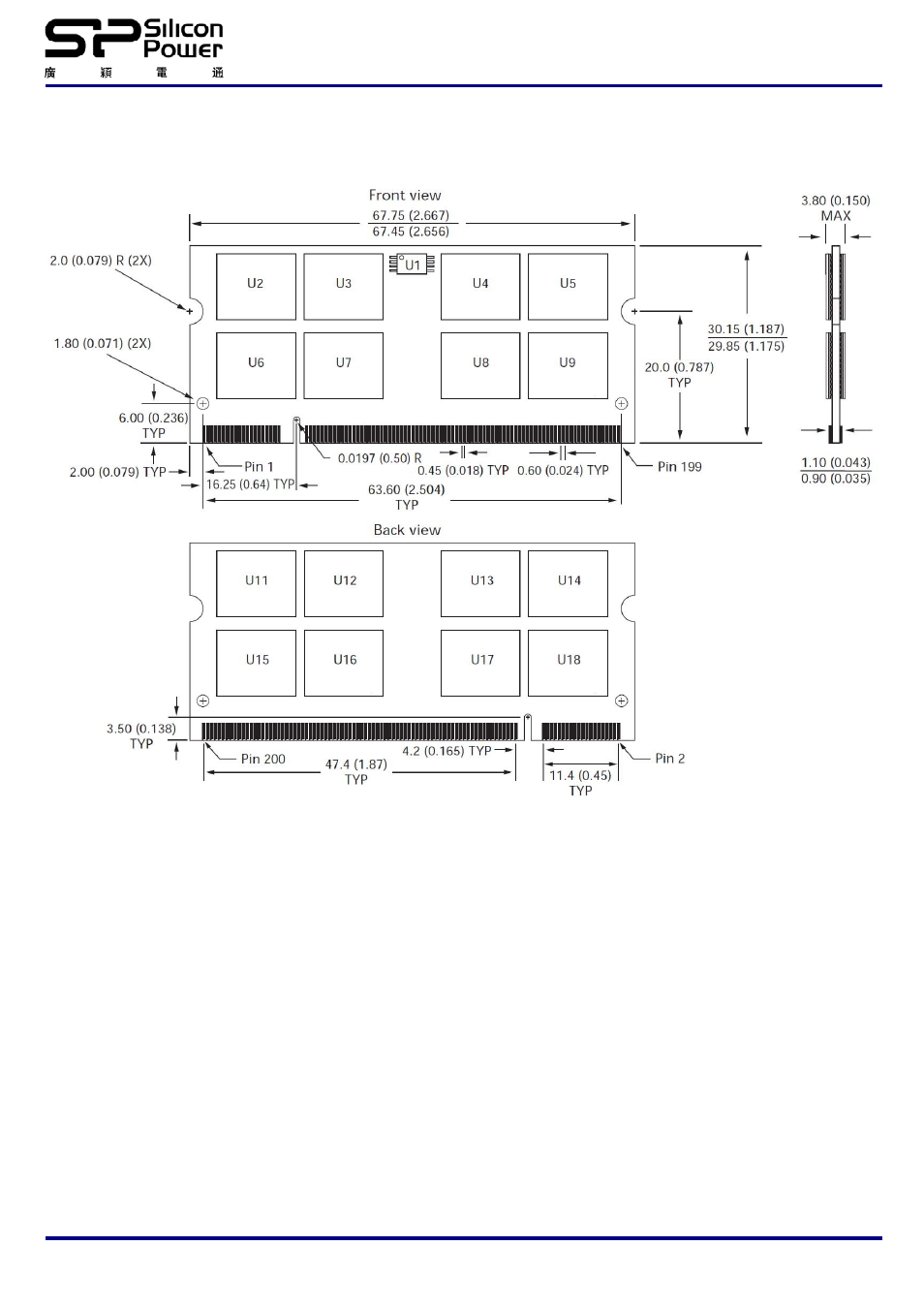

Simplified Mechanical Drawing(x8 2Ranks)

X64 DIMM, populated as one physical rank of x8 DDR2 SDRAMs

Note: 1. All dimensions are in millimeters (inches); MAX/MIN or typical (TYP) where noted.

Note: 2. The dimensional diagram is for reference only.

Rev. 1.1 Aug. 2011

6
