52
802.11 Authentication: Select from Open System, Shared Key, or Auto.
WEP Key Length: Select from 64-bit, 128-bit, 152-bit key length.
WEP Key Format: Select from ASCII or Hex format for the WEP key.
WEP Key Index: Select a key index from 1~4. The WEP key index is a number that specifies which
WEP key will be used for the encryption of wireless frames during data transmission.
WEP Keys: Provide the pre-defined WEP key value; the system supports up to 4 sets of WEP keys.
•
802.1X: When 802.1X Authentication is selected, RADIUS authentication and Dynamic WEP are
provided.

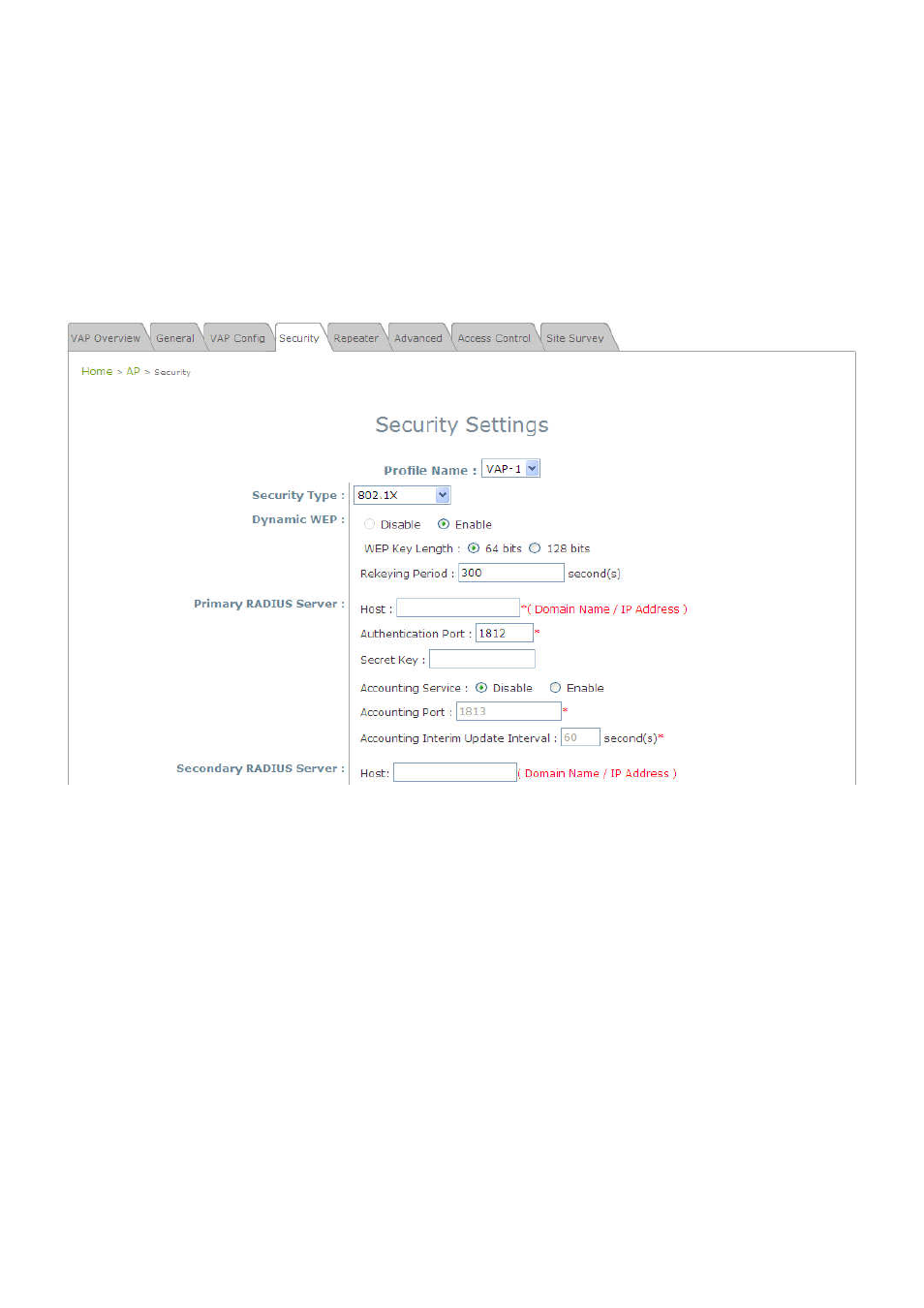

Security Settings: 802.1X Authentication
Dynamic WEP Settings:
o Dynamic WEP: For 802.1X security type, Dynamic WEP is always enabled to automatically
generate WEP keys for encryption.
o WEP Key Length: Select from 64-bit or 128-bit key length.
o Re-keying Period: The time interval for the dynamic WEP key to be updated; the time unit is in
second.
RADIUS Server Settings (Primary/Secondary):
o Host: Enter the IP address or domain name of the RADIUS server.
o Authentication Port: The port number used by the RADIUS server. Specify a port number or
use the default, 1812.
o Secret Key: The secret key for the system to communicate with the RADIUS server.
o Accounting Service: Enabling this option allows accounting of login and logouts through the
RADIUS server.
