3.8.3 Connection to a LAN

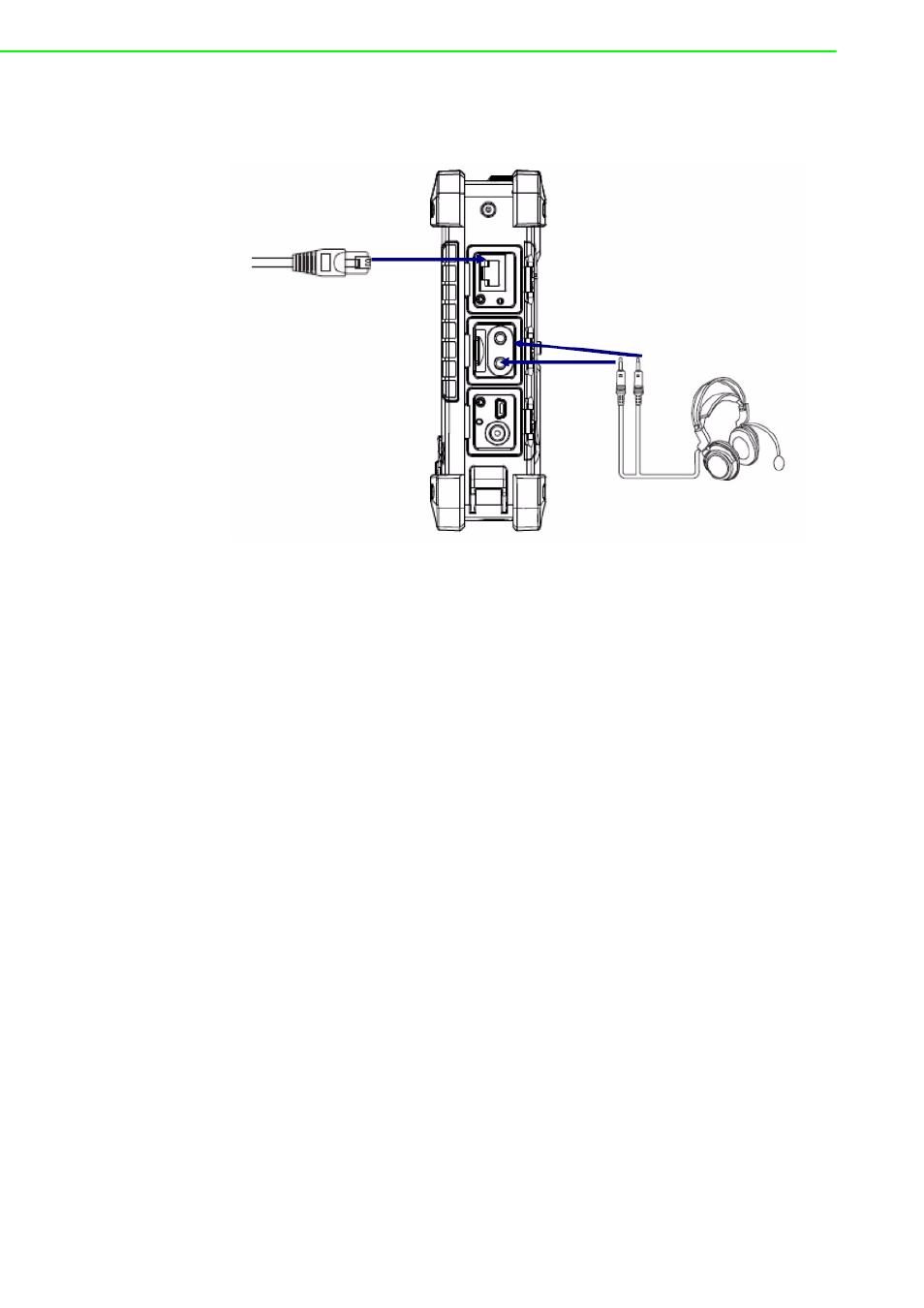

The PWS-8033M is connected using a RJ-45 connector. See below:
3.8.4 Connecting Headphones and a Microphone
The PWS-8033M utilizes an external microphone and speaker. A headset and micro-
phone can be used in noisy environments. See the illustration above.
3.8.5 Connecting to the Cradle (Optional)
The cradle allows for charging the batteries as well as connecting USB and serial
devices
Connecting USB
There is one USB Type A connector on the back which supports both USB keyboard
and mouse. In addition there is one Mini Type B USB port next to the Type A USB
connector.
Connecting a Serial Cable
A serial cable can be connected thePWS-8033M cradle.
