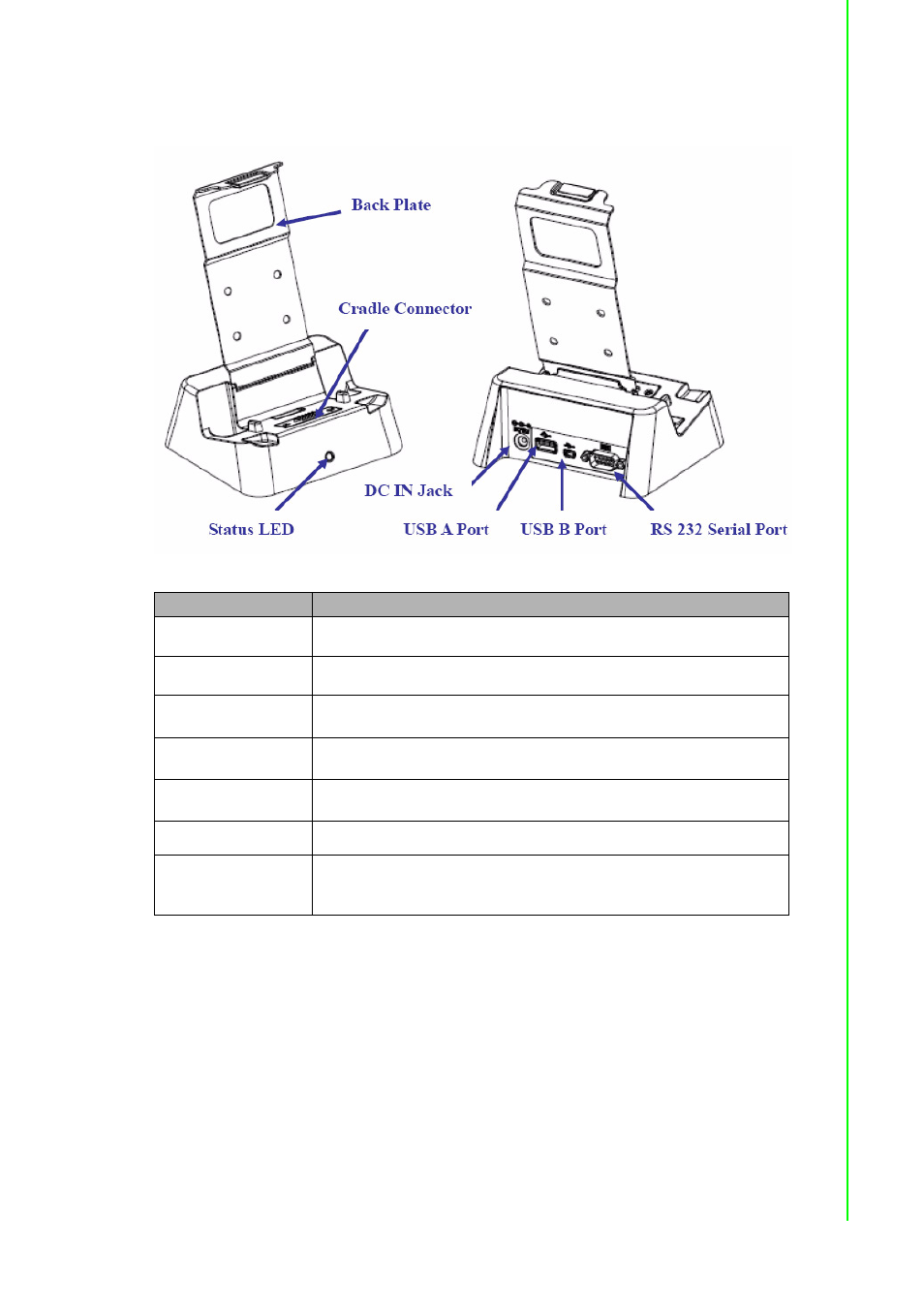

1.4

Cradle (Optional)

Item

Description

Back Plate

Supports the PWS-8033M into charging position

RS 232 Serial Port

Connects a serial cable.

USB type A port
(host)

Connects a USB type A (host) cable.

Cradle connector

Connects the PWS-8033M to the cradle, Provides connections for
RS232, USB type A and mini USB type B.

USB mini type B port
(client)

Connects a USB mini type B (client) cable.

DC IN Jack

Connects the AC adapter to provide power for the cradle*

Status LED

Indicates that power and the PWS-8033M is charged.
Green light –PWS-8033M is charging, and connected.
No Light –No PWS-8033M fitted for charging.
