PWS-8033M User Manual 6

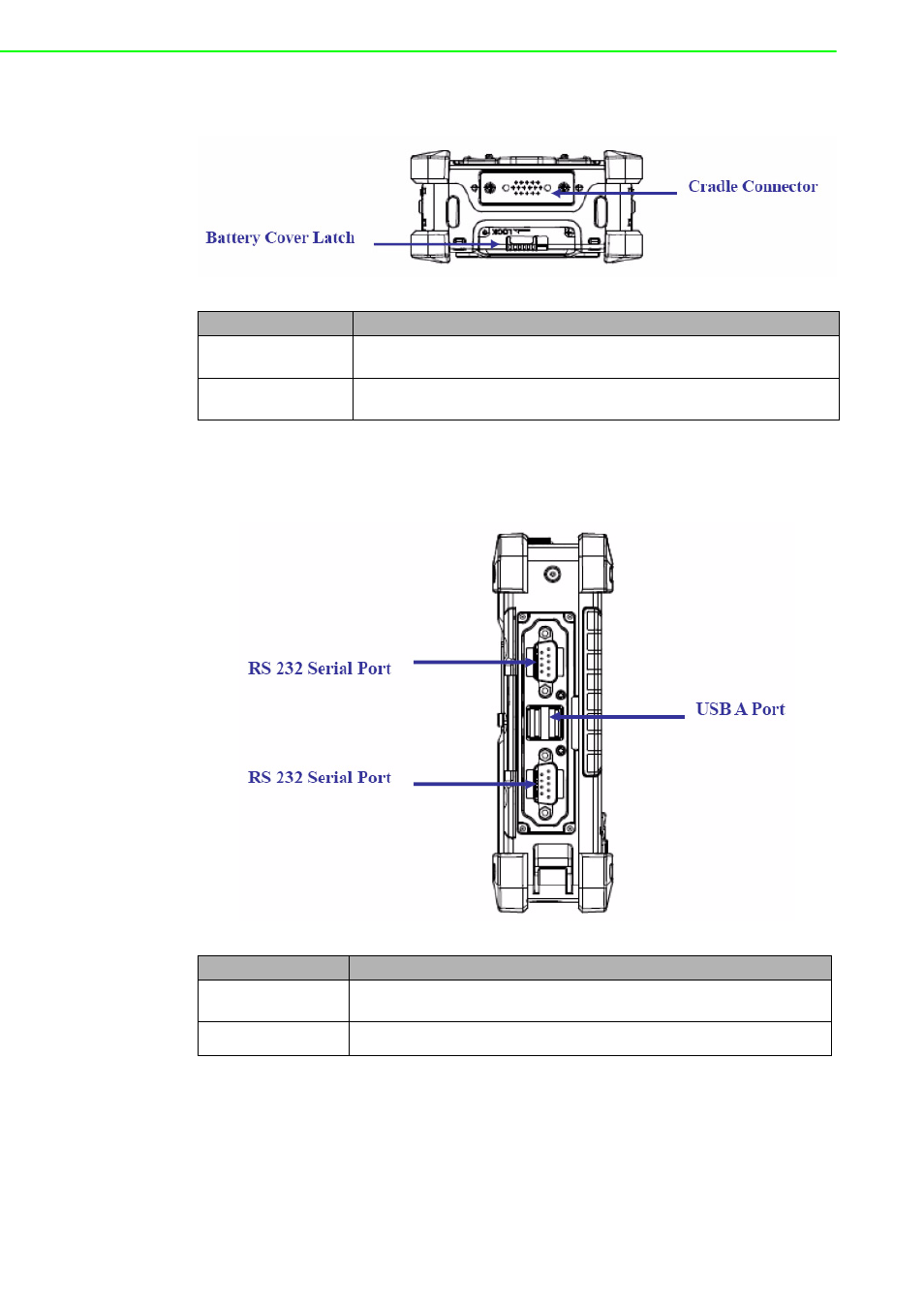

1.2.3 Bottom View
1.2.4 Left View
Item Description
Cradle connector Connects the PWS-8033M to cradle, enabling battery charging also
connects RS232, USBA and USB mini B).
Battery Cover Latch Unlock the latch to open the battery compartment cover, to place or
remove battery.
Item Description
RS 232 Serial Port Connects using a mini 9 way D type connector for this port for serial
communications.
USB type A port Connects to USB type A port (host) to this port.
