PWS-8033M User Manual

18

3.6

Removing a Storage Card

1.

Open the right centre door.

2.

Press the card in and release. The card pops out.

3.

Remove the card from the slot.

4.

Close and lock the door.

3.7

GPRS SIM Card Set Up

1.

Remove the two hand screws on the top of the PWS-8033M.

2.

Insert the SIM Card into the SIM Card slot as shown.

3.

Push the card into the slot. The card is secure when it is flush with the slot.

3.8

Connecting Devices to the PWS-8033M

This section describes how to connect devices to the PWS-8033M. Connection can
be made directly to the PWS-8033M or using the cradle.

3.8.1

Connecting USB

The PWS-8033M can accommodate both USB Type A and USB mini Type B.

Connecting a USB Type A

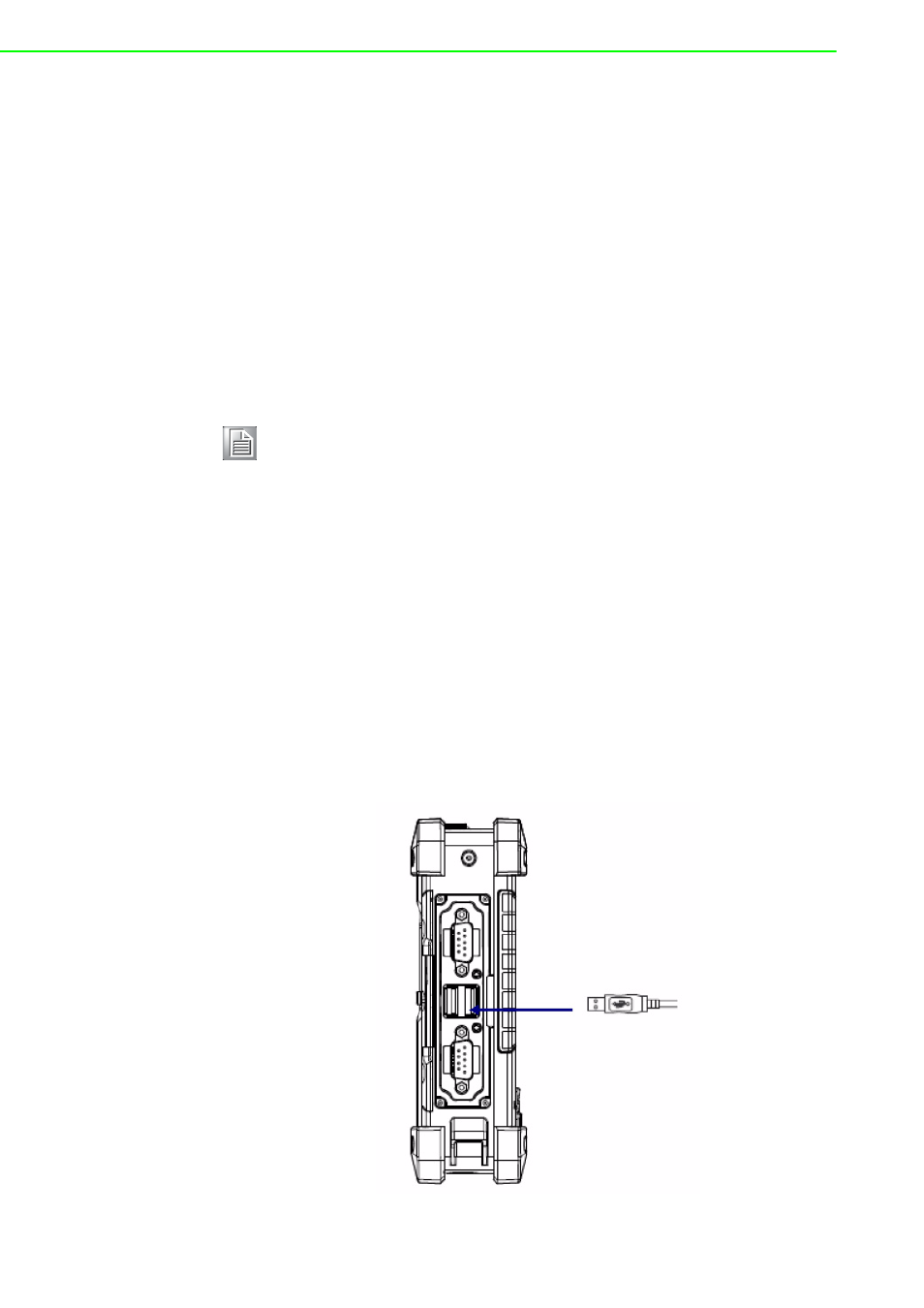

The illustration below shows how to connect a USB type A device to the PWS-
8033M. The connector can only go in one way. If it does not go in smoothly, check the
orientation and try again.

Note!

The battery must be removed before SIM card can be fitted.
