PWS-8033M User Manual

Chapter 1

G

eneral

Information

1.2.2

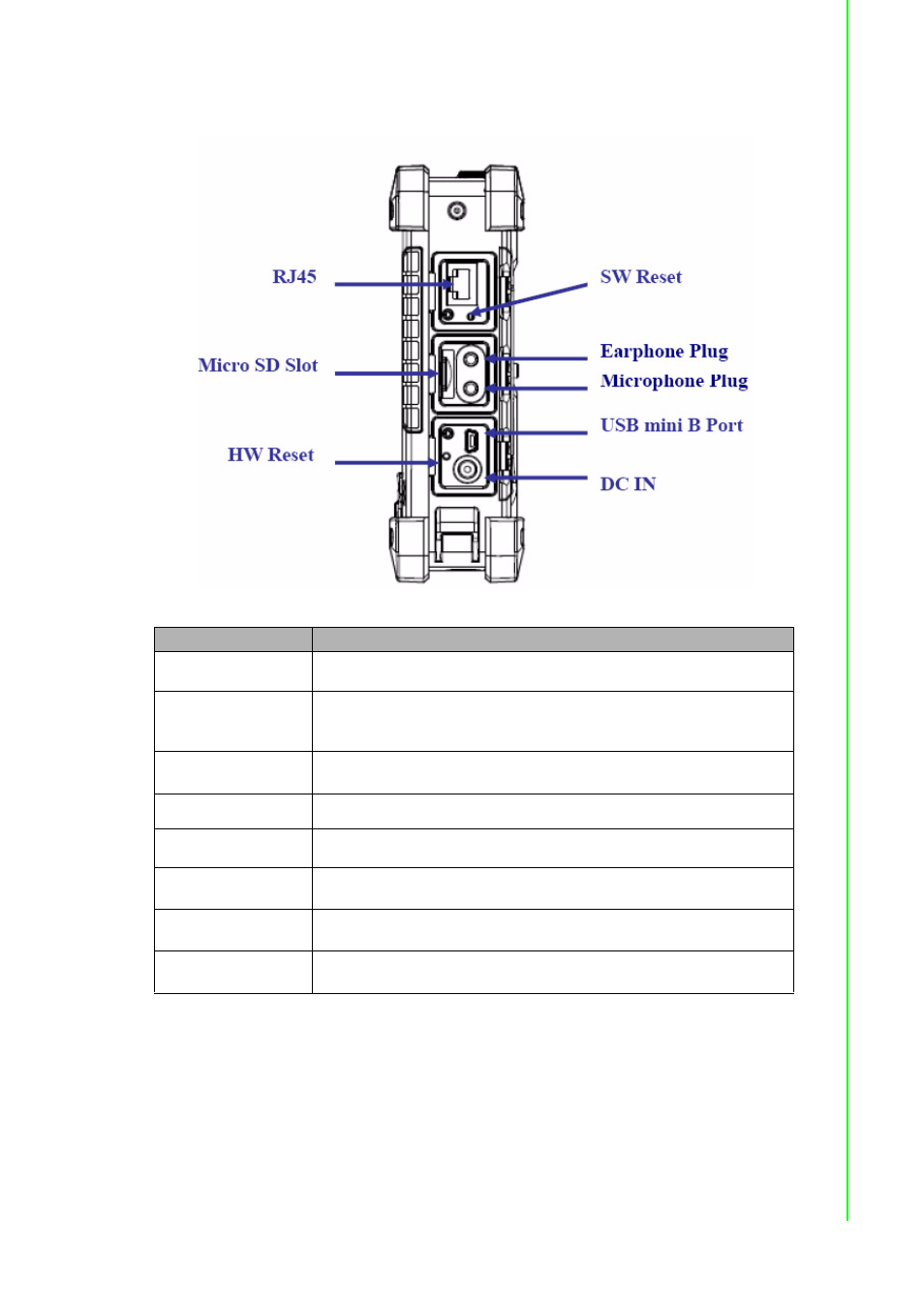

Right View

Item

Description

RJ45 Port

Connects to the LAN.

SW Reset Switch

Press the end of the stylus into the button to reset the PWS-8033M. A
reset allows your device to get a fresh start, similar to warm rebooting
a computer.

Earphone Plug

Connects to audio line-out devices (earphones or headphones) for
use in noisy environments.

Microphone Plug

Enables the recording of voice using an external microphone

USB mini type B port USB mini type B port (client).

Micro SD Slot

Accommodates Micro Secure Digital memory cards.

HW Reset Switch

Press the end of the stylus into the button to reset PWS-8033M.

DC IN Jack

Connect the AC adapter to this jack to supply power to charge the
PWS-8033M battery.
