Connecting a MINI USB Type B

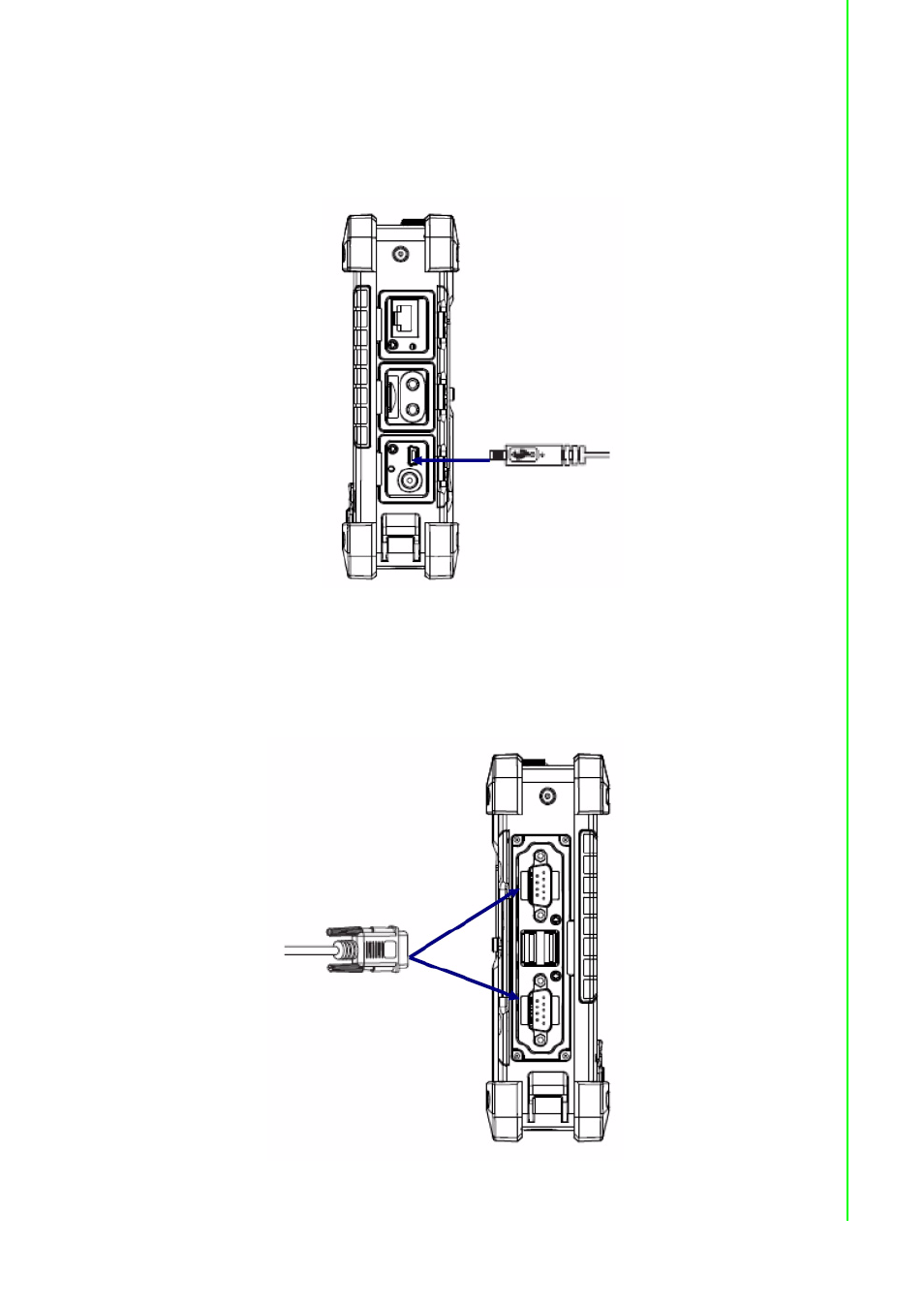

The illustration below shows how to connect a mini USB type B cable to the PWS-
8033M. The connector is keyed to only go in one way. If it does not go in smoothly,
check the orientation and try again.

3.8.2

Connecting a Serial Device

Connect a serial device to the PWS-8033M to perform serial communications.
Please see below illustration
