Chapter 5 85

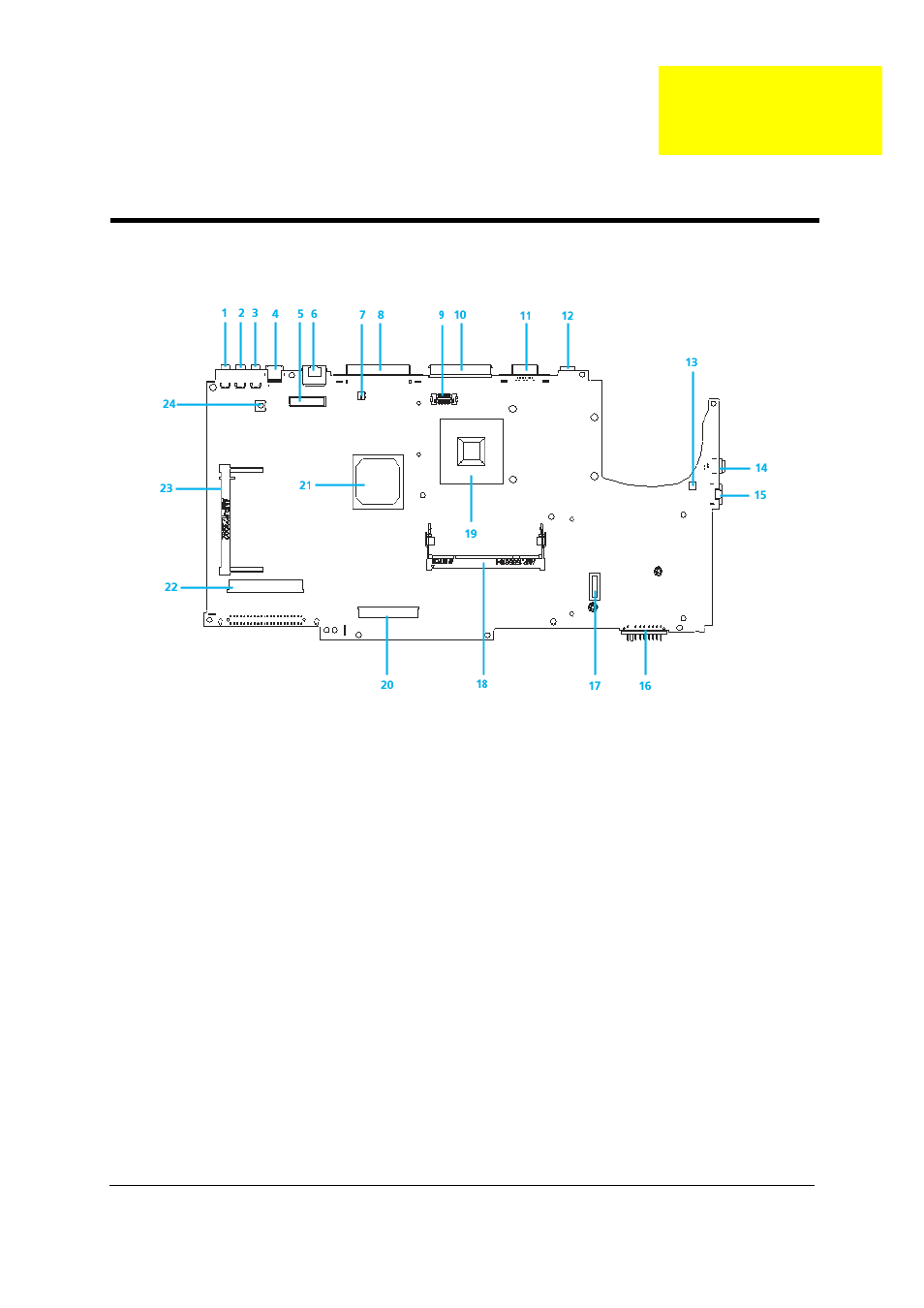

Top View
1 USB Connector Port 12 DC Jack Port
2 USB Connector Port 13 Modem Connector
3 USB Connector Port 14 IEEE 1394 Connector
4 TV-Out Connector 15 RJ11 Connector
5 Panel Connector 16 Battery Connector
6 RJ45 Connector Port 17 MDC Connector
7 Panel Backlight On/Off Switch 18 DDR 200Pin Port
8 LPTCN-27 Port 20 Internal Keyboard Connector
9 Switch Buttom Interface Connector 22 Audio Board to Main Board Connector
10 SPR Connector 23 Mini PCI Connector
11 CRT Connector Port 24 System On/Off Button
Jumper and Connector Locations
Chapter 5
