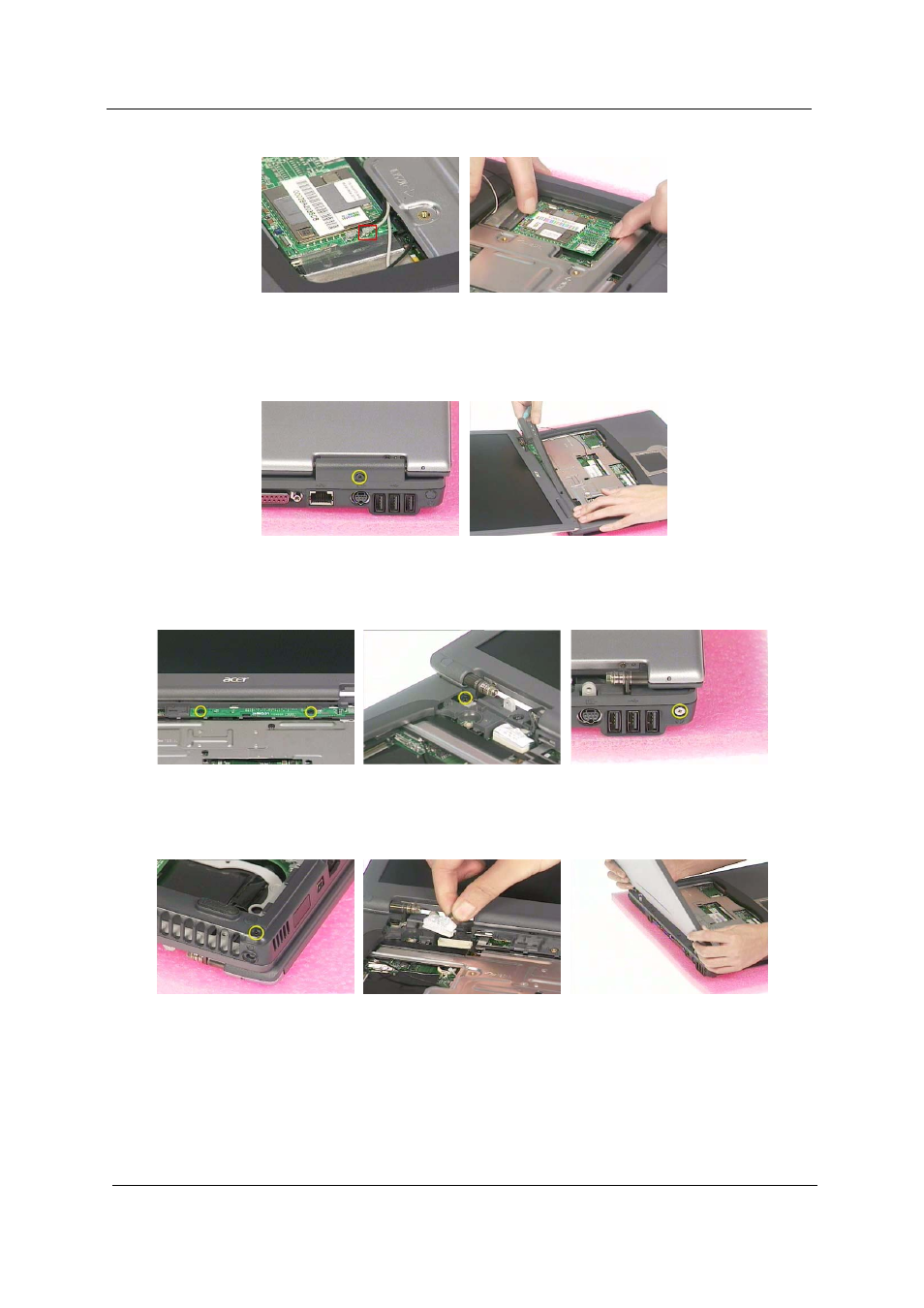

Removing the Switch Board and the LCD module
1.
Unscrew the two screws that secure the middle cover, one on each side.
2.
Use a tool to prize out the middle cover.
3.
Remove the two screws holding the switch board.
4.
Unscrew the two screws that fasten the LCD hinge, one on each side.
5.
Remove the two screws as shown here, one on each side.
6.
Take the two screws off the bottom panel as shown here, one on each side.
7.
Disconnect the LCD power cable.
8.
Then detach the LCD module off the main unit.
