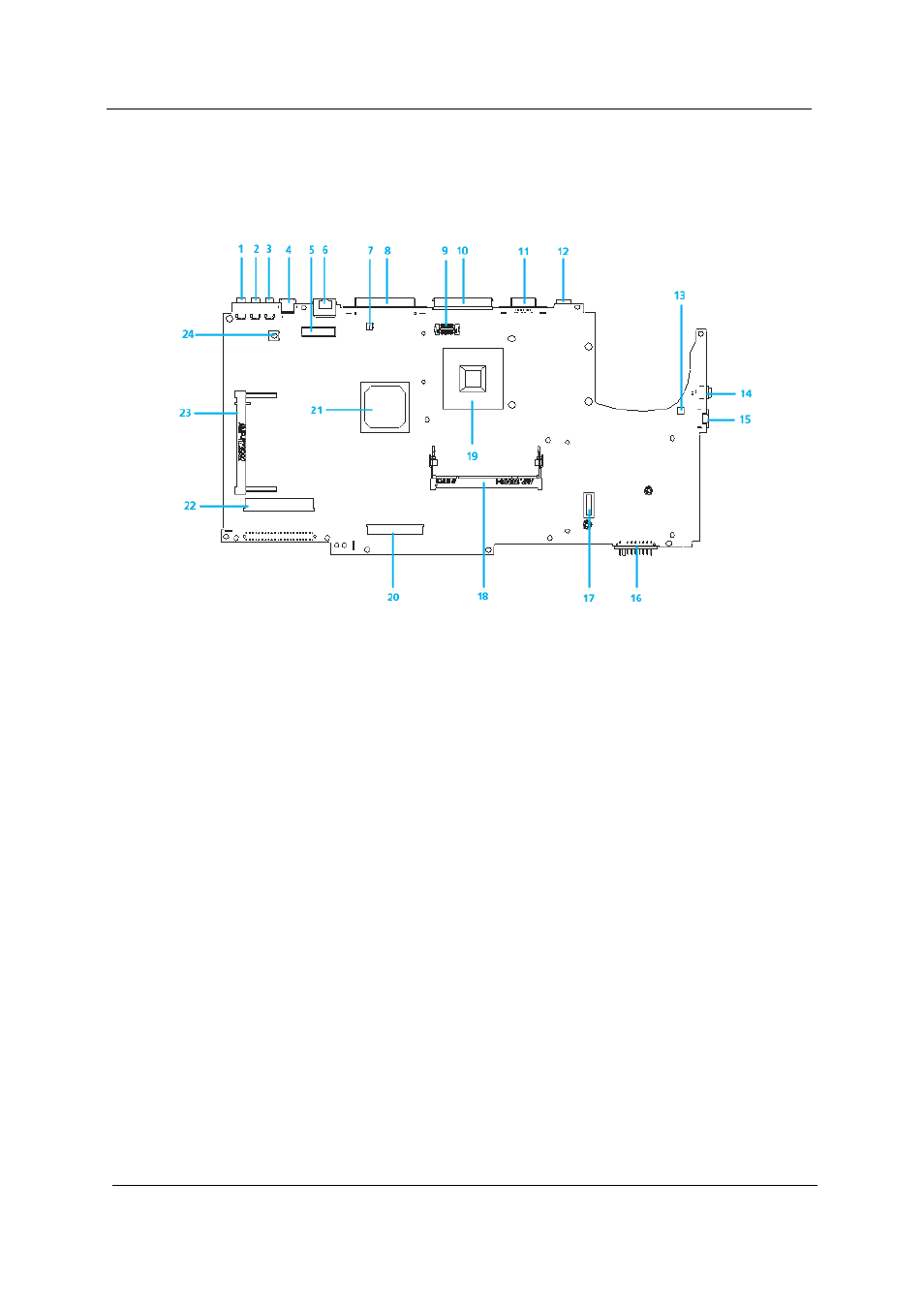

Board Layout
Top View
1 USB Connector Port 13 Modem Connector
2 USB Connector Port 14 IEEE 1394 Connector
3 USB Connector Port 15 RJ11 Connector
4 TV-Out Connector 16 Battery Connector
5 Panel Connector 17 MDC Connector
6 RJ45 Connector Port 18 DDR 200Pin Port
7 Panel Backlight On/Off Switch 19 Northbridge
8 LPTCN-27 Port 20 Internal Keyboard Connector
9 Switch Buttom Interface Connector 21 Southbridge
10 SPR Connector 22 Audio Board to Main Board Connector
11 CRT Connector Port 23 Mini PCI Connector
12 DC Jack Port 24 System On/Off Button
