10

NVR-02 Series User Manual

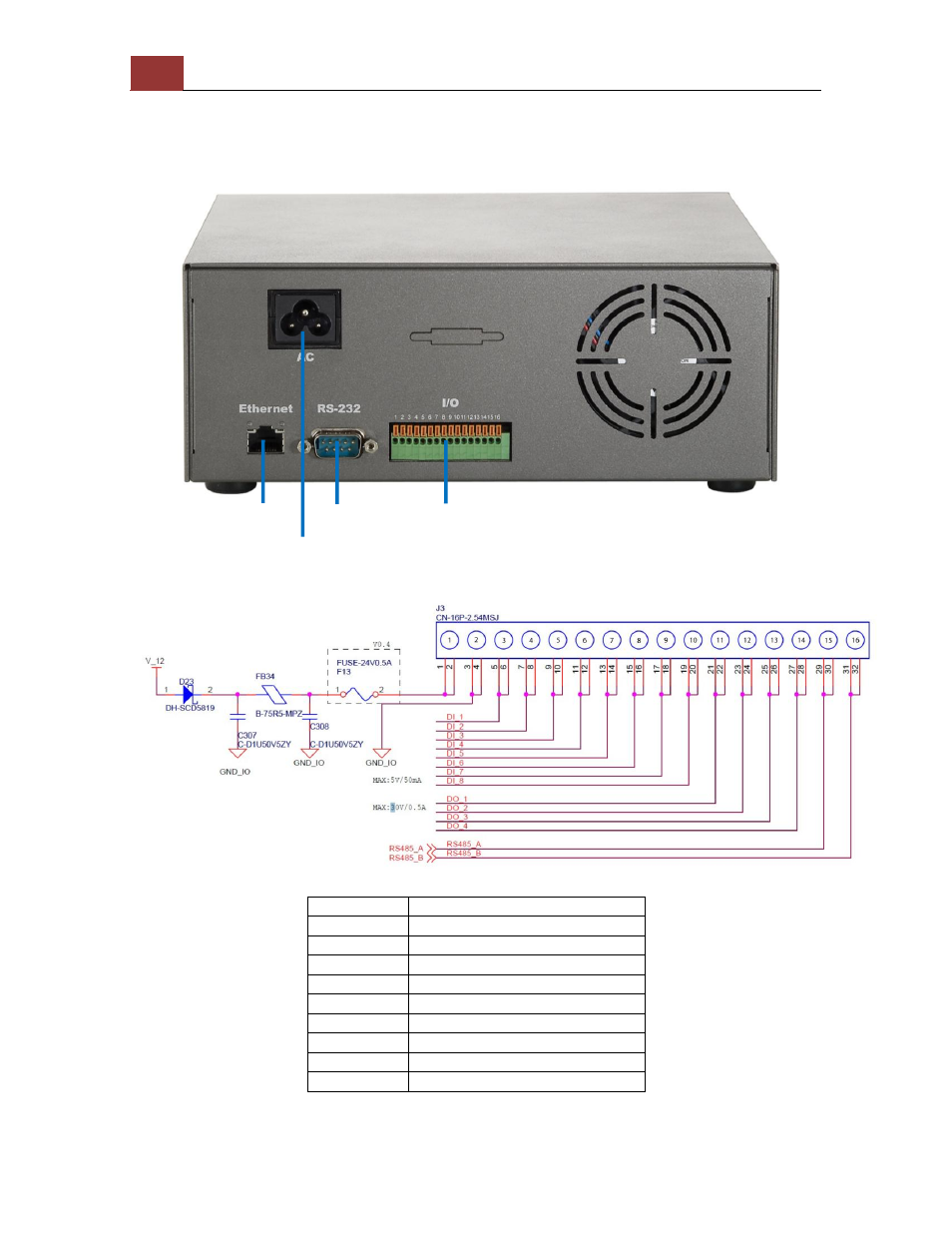

Rear View (I/O Ports and RS-485)

Pin

Signal

1

12V DC

2

GND

3~10

Alarm Input

11

Out1

12

Out2

13

Out3

14

Out4

15

RS485+

16

RS485-

Ethernet

Power

Connector

RS-232

GP I/O
