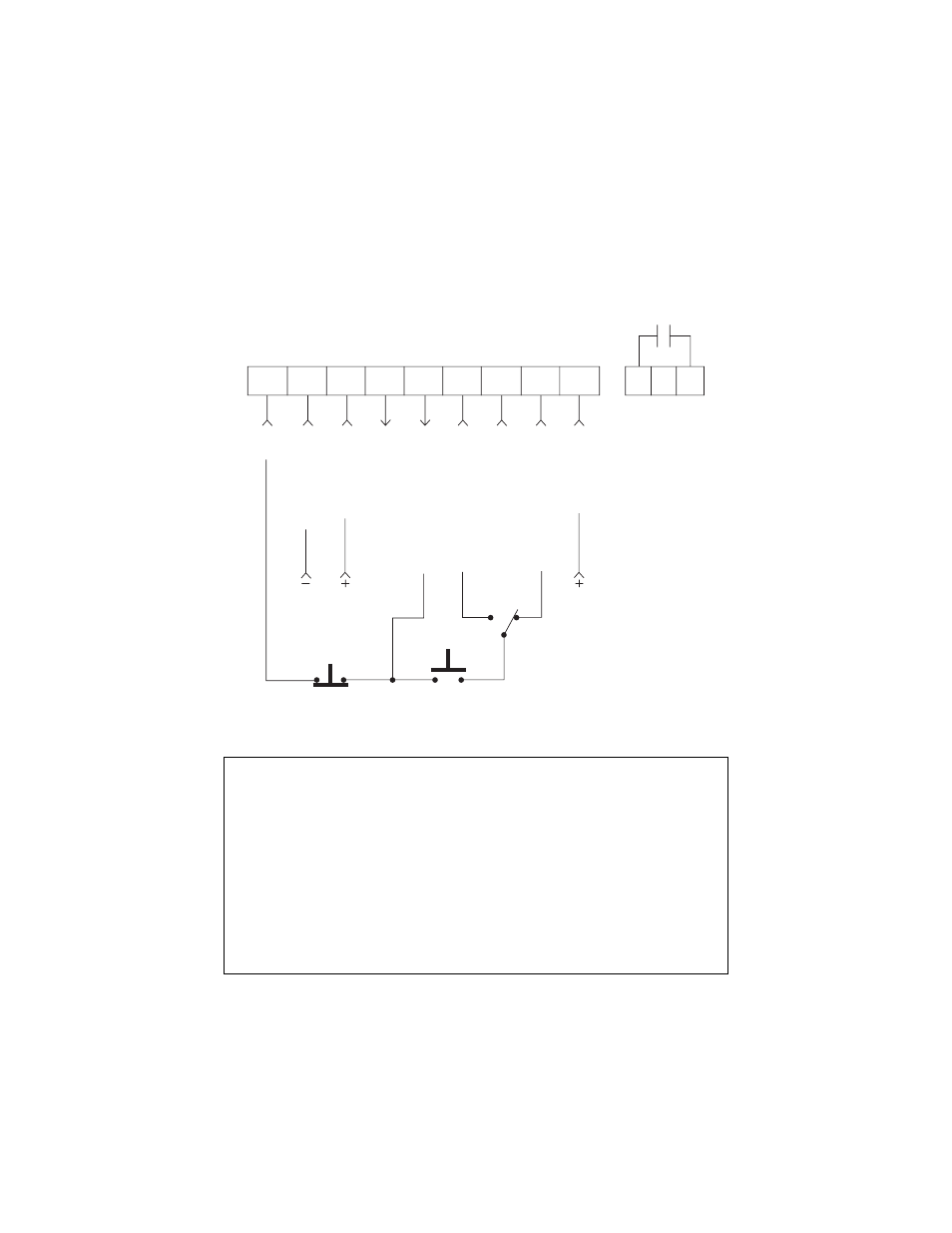

11.3 THREE-WIRE START/STOP CONTROL
NOTES:
1. Program TB-13E (Parameter 12) for START FORWARD (06).
2. If reverse direction is required, set ROTATION (Parameter 17) to FORWARD AND
REVERSE (02), and program TB-13A (Parameter 10) for START REVERSE (07).
3. Momentarily close TB-13E to TB-11 to START in the forward direction, or close TB-13A to
TB-11 to START in the reverse direction. Momentarily open TB-1 to TB-11 to STOP the
drive.
4. For 0-10 VDC or 4-20 mA speed control, set STANDARD SPEED SOURCE (Parameter
05) to 0-10 VDC (03) or 4-20 mA (04).
1 2 5 6 11 13A 13B 13E 25 16 17
MOMENTARY
STOP CONTACT
MOMENTARY
START CONTACT
REV FWD
FORM A
RELAY
STOP
SIGNAL COMMON
0-10 VDC INPUT
SPEED POT POWER SUPPL
Y
DIGIT
AL INPUT REFERENCE
TB-13A FUNCTION SELECT (ST
AR
T REVERSE)
TB-13B FUNCTION SELECT TB-13E FUNCTION SELECT (ST
AR
T FOR
W
ARD)
4-20 mA INPUT
