King Electric Model PAW-SS - Manual (Page 5)

5

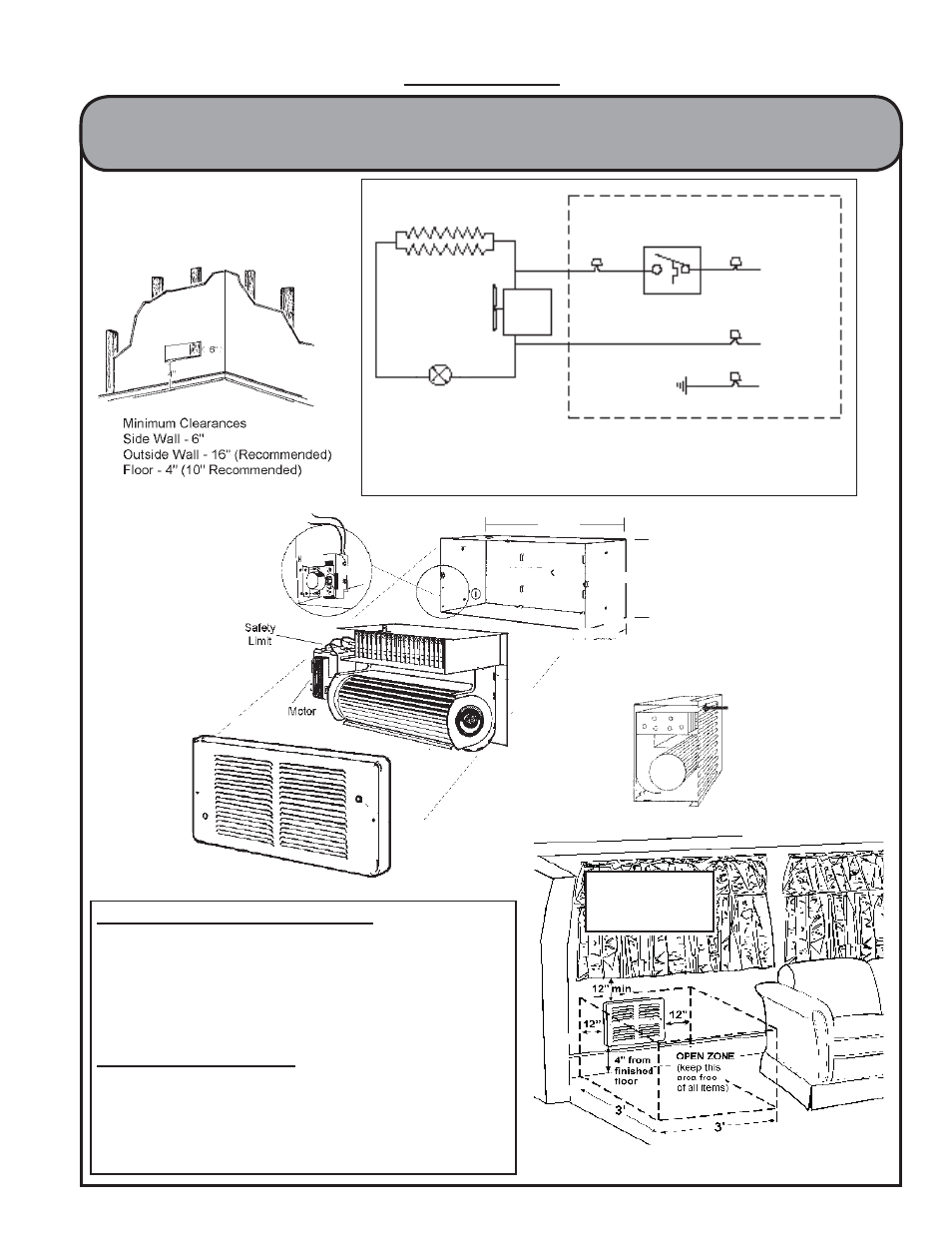

INSTALLATION INSTRUCTIONS
SAVE THESE INSTRUCTIONS
277 Volt Wiring Diagram
Maintenance & Warranty Information:
The high quality and superior design of this heater will provide
years of trouble-free performance. Each year the heater
should be checked and cleaned for lint and dust accumulation.
We recommend using a soft bristle brush such as a paint
brush to assist in removing contaminants from the heater.
Limited One Year Warranty:
King Mfg. Co. will repair or replace, without charge, any King
product found to be defective or malfunctioning during the
first year of purchase to the original owner. The PZ-Series
wall heater carries an Extended Five Year Warranty on the
heating element.
277V insert PAW-DEC-SL.indd : 8/09
FAN-FORCED HEATERS:
Clearances for Safe Operation
In-built thermostat
may be installed by
customer or factory
Front Grille
Wall Can
Grille Dimensions
Depth - 3/4"
Height - 7-1/2"
Width - 13-7/8"
Fan blower
heating element
interior assembly
6-1/4" x 12-5/8"
Wall opening
12-5/8"
6-1/4"
Top fi rst louver in the grille must
be open into and between wall can
and top of heater interior for proper
circulation of air Remove ½" knockout for
thermostat shaft exposure
Heating Element
Fan
Motor
Black Black L1
L2
Ground
Red
Green
Black
Field Connections
Optional Thermostat
Single Pole
Warning: Check nameplate voltage on
heater before connecting to power source.
High Limit
1000 Watts
1000 Watts
SL Series approved for zero clearance
to fl oor
FAN-FORCED HEATERS:
Clearances for Safe Operation
(SL Series only approved for
zero clearance to fl oor)
NOTE: SL Slimline Series only is zero clearance to floor
