Figure 6 – voltage following connection, Figure 8 – enable circuit connection, Figure 7 – inhibit connection – KB Electronics KBWS-25D User Manual
Page 14
Text mode
Original mode

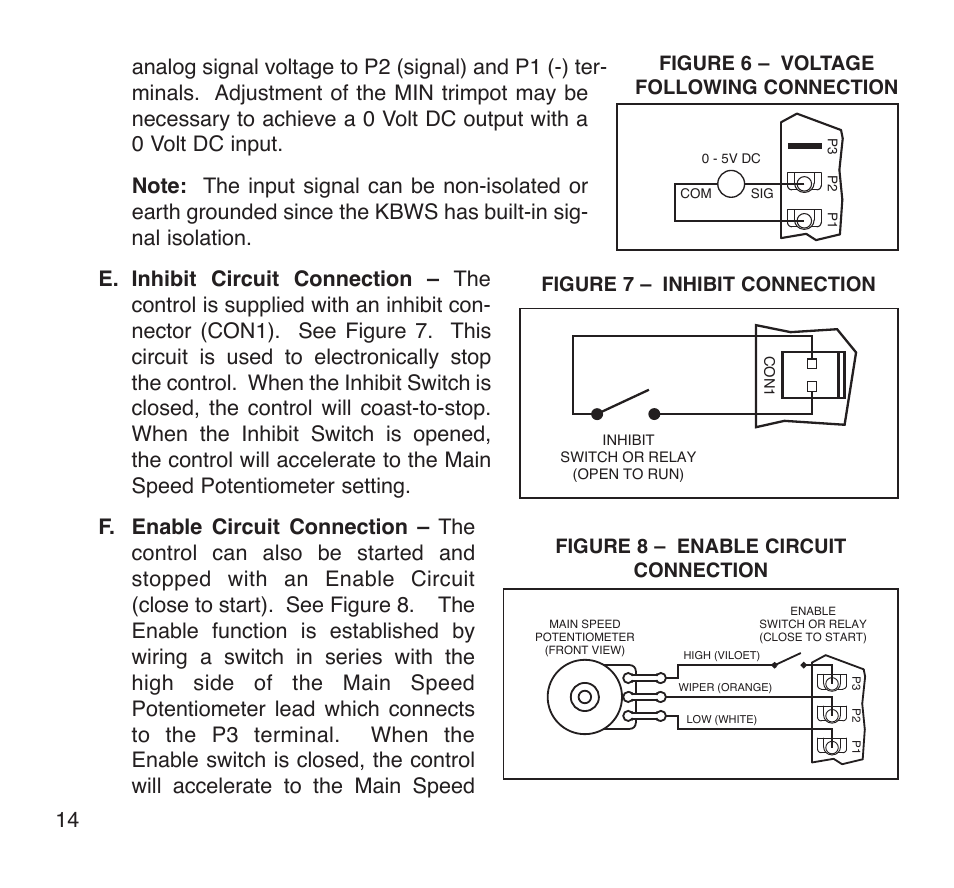

Figure 6 – voltage following connection, Figure 8 – enable circuit connection, Figure 7 – inhibit connection | KB Electronics KBWS-25D User Manual | Page 14 / 25
