Harwin Z30-021 User Manual
Harwin Tools

IS-36 Issue: 2 Date: 27.07.12 C/Note: 11786
Page 1 of 7

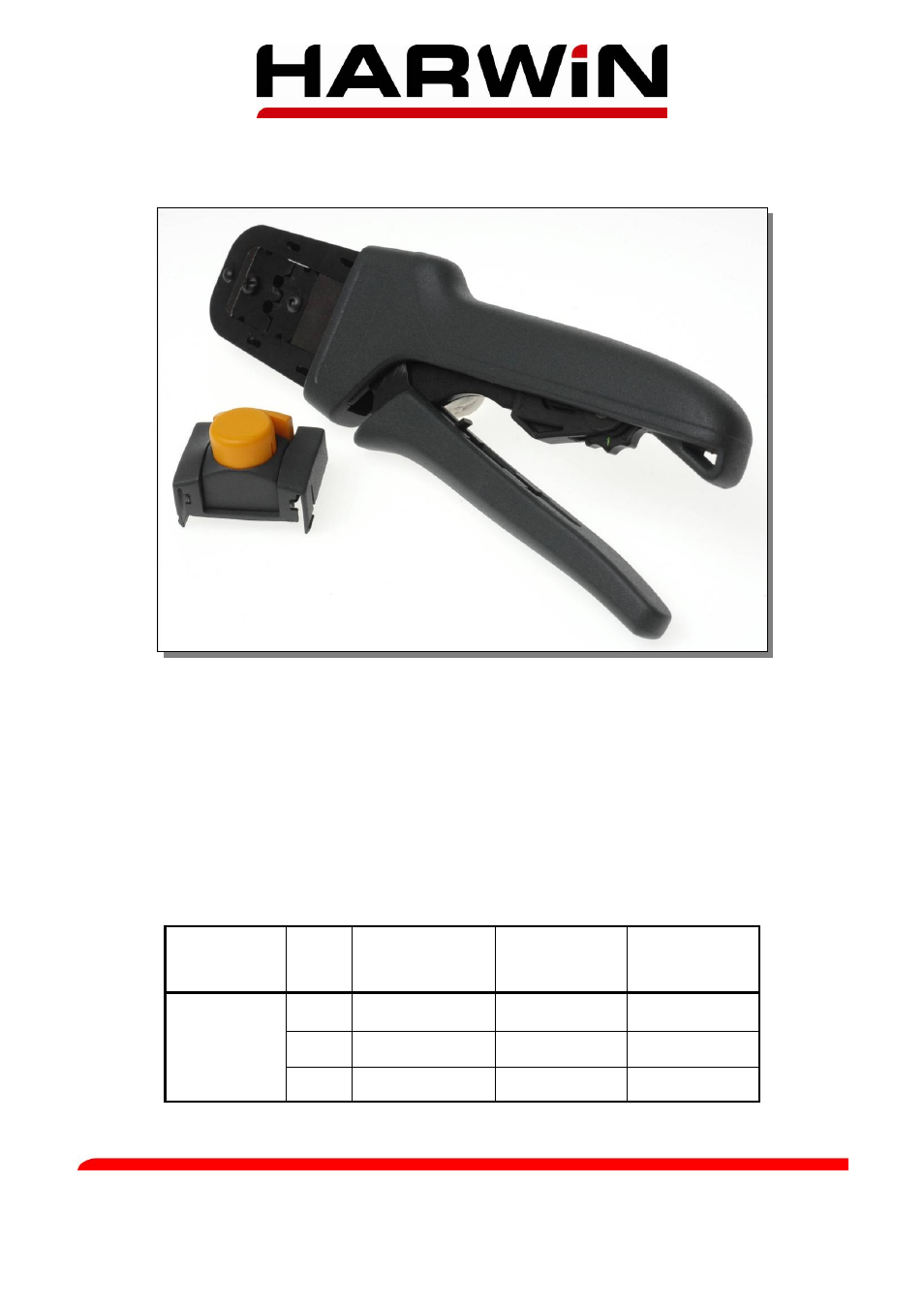

HAND CRIMP TOOL Z30-021
This Hand Crimp Tool has been designed for use with the following crimp contacts:
M30-1050046 ............... 1.25mm Pitch Crimp Contacts for 26-30 AWG, Reeled, Tin
M30-1060046 .............. 1.25mm Pitch Crimp Contacts for 26-30 AWG, Bag of 100, Tin
Harwin recommend the use of BS 3G 210 Type A PTFE Equipment Wire, MIL-W-16878/4 and UL
style 1213 or near equivalents.
Contact
Wire
Gauge
(AWG)
Typical Stranding
(no of strands/Ø
mm)
Conductor
cross-sectional
area (mm²)
Minimum Pull-
off Force (N)
M30-1050046
OR
M30-1060046
26 7/0.15
0.1237
18.5
28 7/0.12
0.0792
8.5
30 1/0.25
0.049
7.0
