Harwin Datamate S-Tek User Manual
Assembly procedure for s-tek backshell adaptors
ASSEMBLY PROCEDURE FOR S-TEK BACKSHELL ADAPTORS
Harwin North America
Harwin Europe
Harwin Asia
T: +1 603 893 5376 F: +1 603 893 5396
T: +44 (0) 23 9231 4545 F: +44 (0) 23 9231 4590
T: +65 6 779 4909 F: +65 6 779 386
E:
W:
www.harwin.com
E:
W:
www.harwin.com
E:
W:
www.harwin.com.sg
IS-32 Issue: 4 Date: 01.04.11 C/Note: 11172
Page 1 of 4
This instruction sheet is designed to demonstrate how to assemble Datamate product equipped with
metal backshells. The part numbers include:
M80-4C1XX05S1
M80-4C1XX42S1
M80-4D1XX05S1
M80-4D1XX42S1
Note: Example shown is M80-4C11005S1. Kits includes four ‘E’-clips, two are spare.

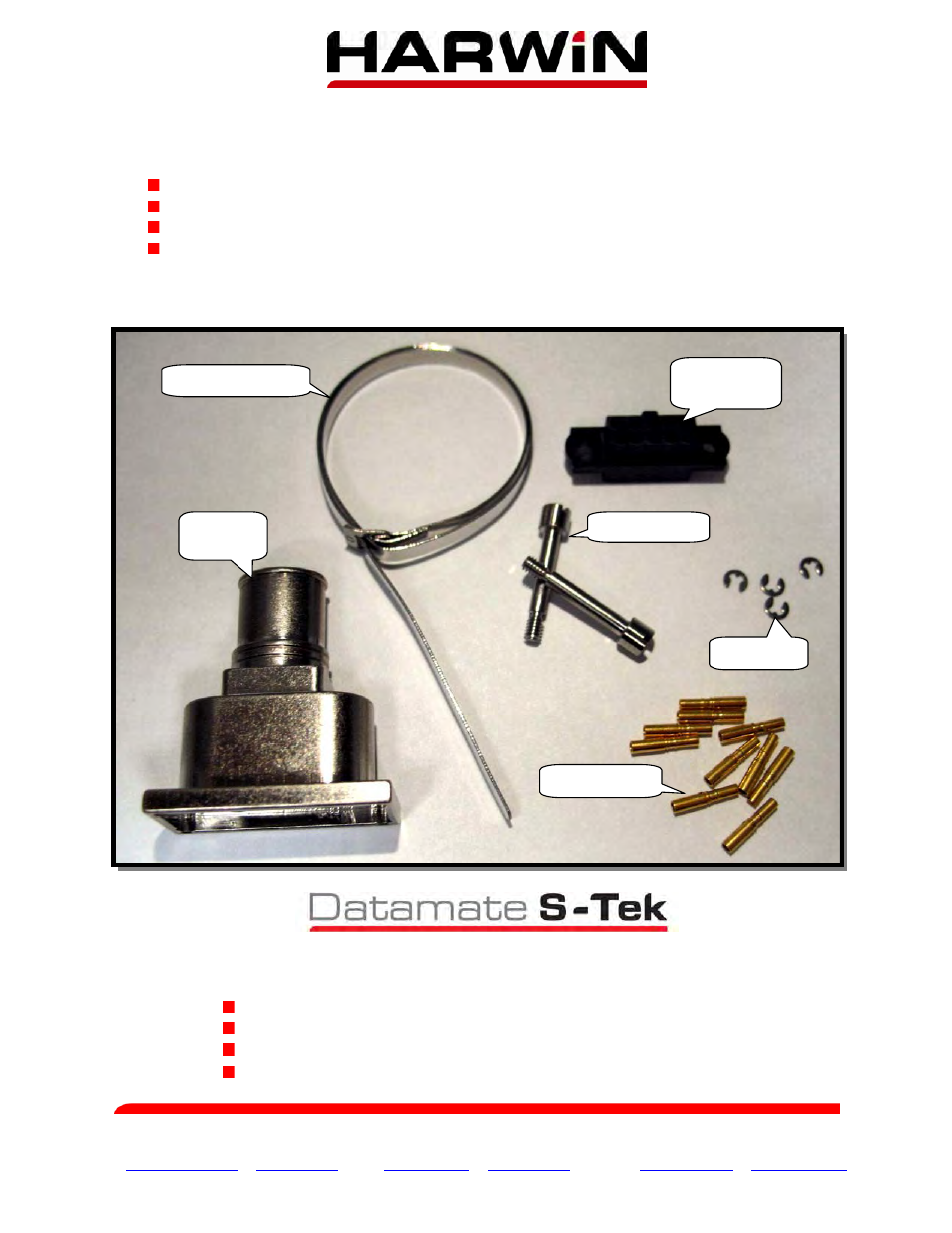

Kit of parts is as follows:
Tools required for these products include:
BAND-IT Tie-Dex tool A301 (A590 kit)
Hand Crimp Tool M22520/2-01 with Positioner T5747
Contact insertion tool Z80-280
‘E’-clip tool Z80-300
1 x Band-It Tie Dex
1 x Metal
backshell
1 x Datamate
moulding
2 x Jackscrews
4 x ‘E’-clips
Crimp contacts
