HAND CRIMP TOOL M22520/2-01
This Hand Crimp Tool has been designed for use with the following Datamate Signal Crimp Sockets (when
used with Positioner T5747):
M80-01100XX .................. Large bore Female crimp contact for 22 AWG wire
(used in all L-Tek, J-Tek and Mix-Tek female crimp connectors).
M80-01300XX .................. Small bore Female crimp contact for 24-28 AWG wire
(used in all L-Tek, J-Tek and Mix-Tek female crimp connectors).
M80-01900XX .................. Extra small bore female crimp for 28-32 AWG wire
(used in all L-Tek, J-Tek and Mix-Tek female crimp connectors).
M80-04000XX ................. Large bore Male crimp contact for 22 AWG wire
(used in L-Tek male crimp connectors).
M80-04100XX .................. Small bore Male crimp contact for 24-28 AWG wire
(used in L-Tek male crimp connectors).
The following Datamate Signal Crimp Sockets can also be crimped (when used with Positioner Z80-193):
M80-19400XX .................. Large bore Male crimp contact for 22 AWG wire
(used in J-Tek and Mix-Tek male crimp connectors).
M80-19500XX .................. Small bore Male crimp contact for 24-28 AWG wire
(used in J-Tek and Mix-Tek male crimp connectors).
The following Datamate Power Crimp Sockets can also be crimped (when used with Positioner Z80-058):
M80-05500XX .................. Power Female crimp contact for 18-20 AWG
(used in M80-716 and M80-719 series).
The following Power Crimp Sockets can also be crimped (when used with Positioner ZK3609-00):
K3606-46 ......................... Power Male crimp contact for 18 AWG.
K3607-46 ......................... Power Female crimp contact for 18 AWG.
Harwin North America
Harwin Europe
Harwin Asia
T: +1 603 893 5376 F: +1 603 893 5396
T: +44 (0) 23 9231 4545 F: +44 (0) 23 9231 4590
T: +65 6 779 4909 F: +65 6 779 3868
E: [email protected] W: www.harwin.com
E: [email protected] W: www.harwin.com
E: [email protected] W: www.harwinasia.com

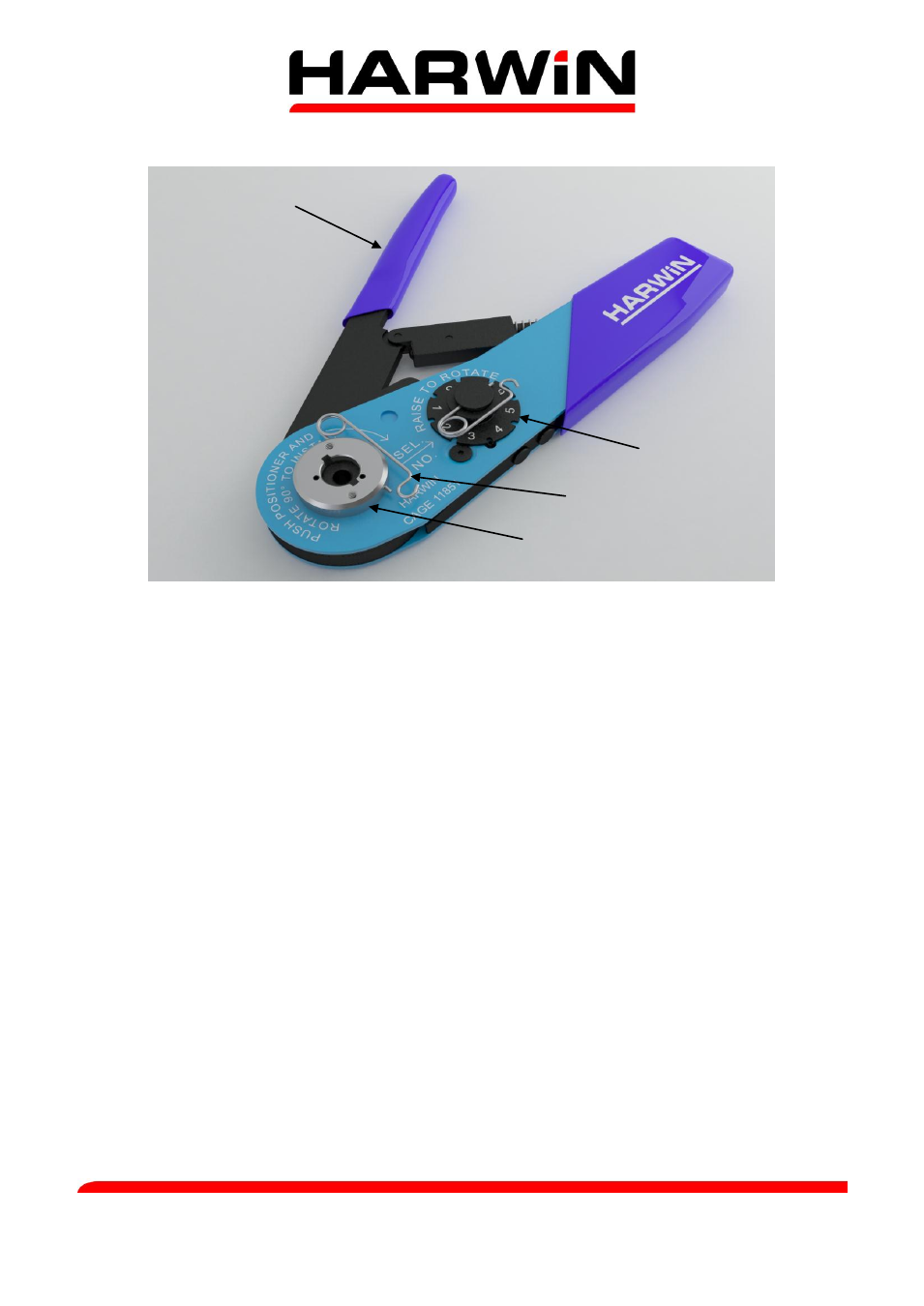

Tool in open
position
Selector knob
Safety clip
Positioner
guide
