Harwin ZK3610-00 User Manual
Insertion procedure

IS-22 Issue: 2 Date: 03.10.07 C/Note: 9874
Page 1 of 2
POWER CONNECTOR ASSEMBLY TOOL ZK3610-00
INSERTION PROCEDURE
1. Strip the wire and crimp or solder the socket onto the wire, ensuring that the correct part is
used (see Instruction Sheet IS-01, Hand Crimp Tool M22520/01).
2. Ensure all parts (moulding and contacts) are clean and ready for final assembly.
3. Select the appropriate insertion tool for the wire size in use and attach to the handle. The
different tools can be found by unscrewing the cap at the end of the handle (see above for
tool identification).
4. Place the crimped socket partially into the moulding. The correct position is reached when
approximately 1.5-2mm of socket protrudes (see Figures 2 and 3).
5. Place the insertion tool over the wire, with the wire sitting in the groove and the tool resting
on the back of the crimped socket (see Figure 1).
6. To complete the assembly, push firmly on the rear of the contact while ensuring the tool
remains perpendicular to the mould face. There will be an audible click when the socket is
correctly seated within the moulding.
7. Repeat steps 4 to 6 until the moulding is populated as required. Care should be taken not to
damage any contacts. It is recommended that the moulding be supported by a small fixture
or a hard flat surface.
Harwin North America
Harwin Europe
Harwin Asia
T: +1 603 893 5376 F: +1 603 893 5396
T: +44 (0) 23 9231 4545 F: +44 (0) 23 9231 4590
T: +65 6 779 4909 F: +65 6 779 3868
E: [email protected] W: www.harwin.com
E: [email protected] W: www.harwin.com
E: [email protected] W: www.harwin.com.sg

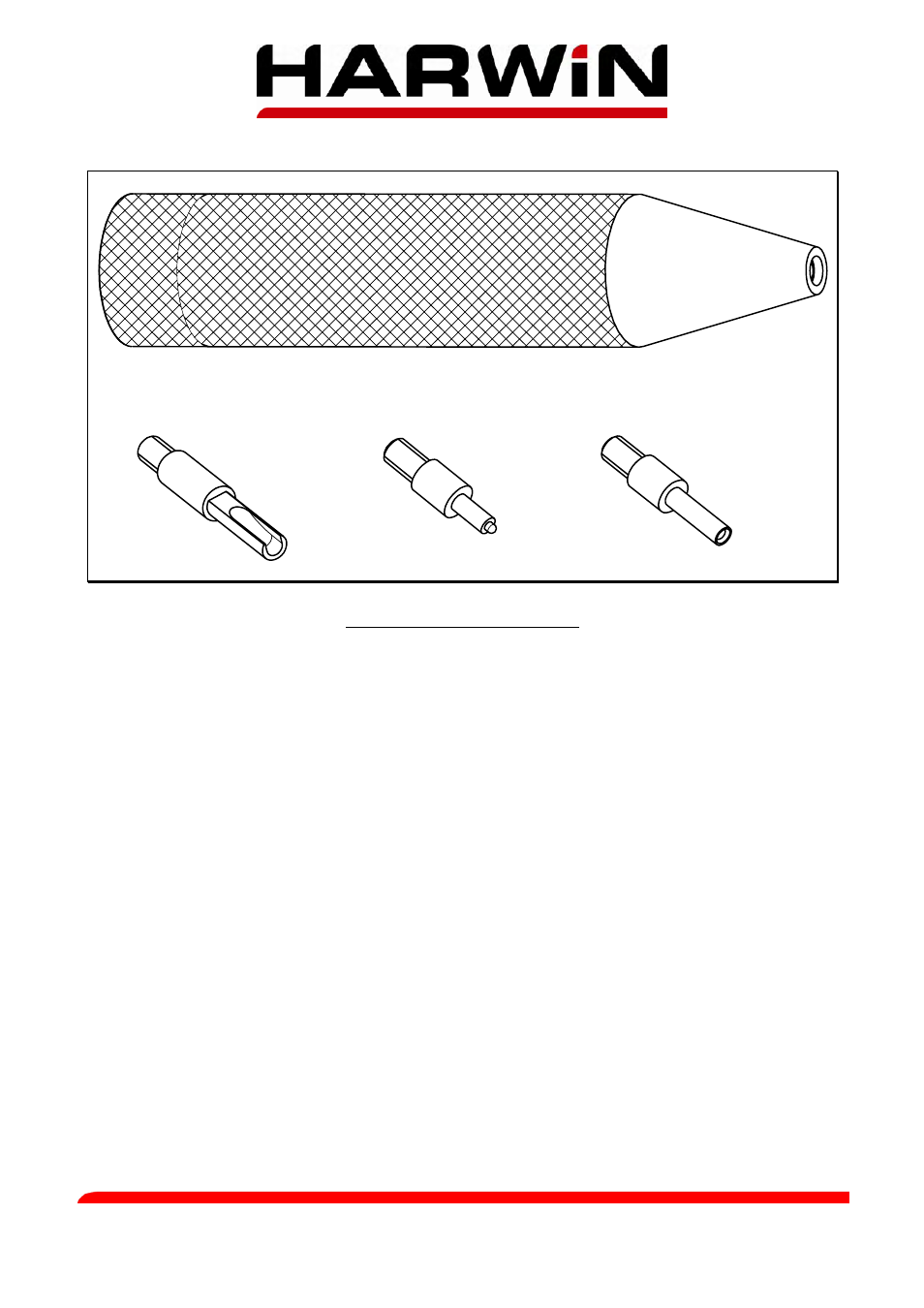

Insertion/Extraction Tool Holder
Insertion
Tool
Extraction
Tool (Female
contacts)
Extraction
Tool (Male
contacts)
