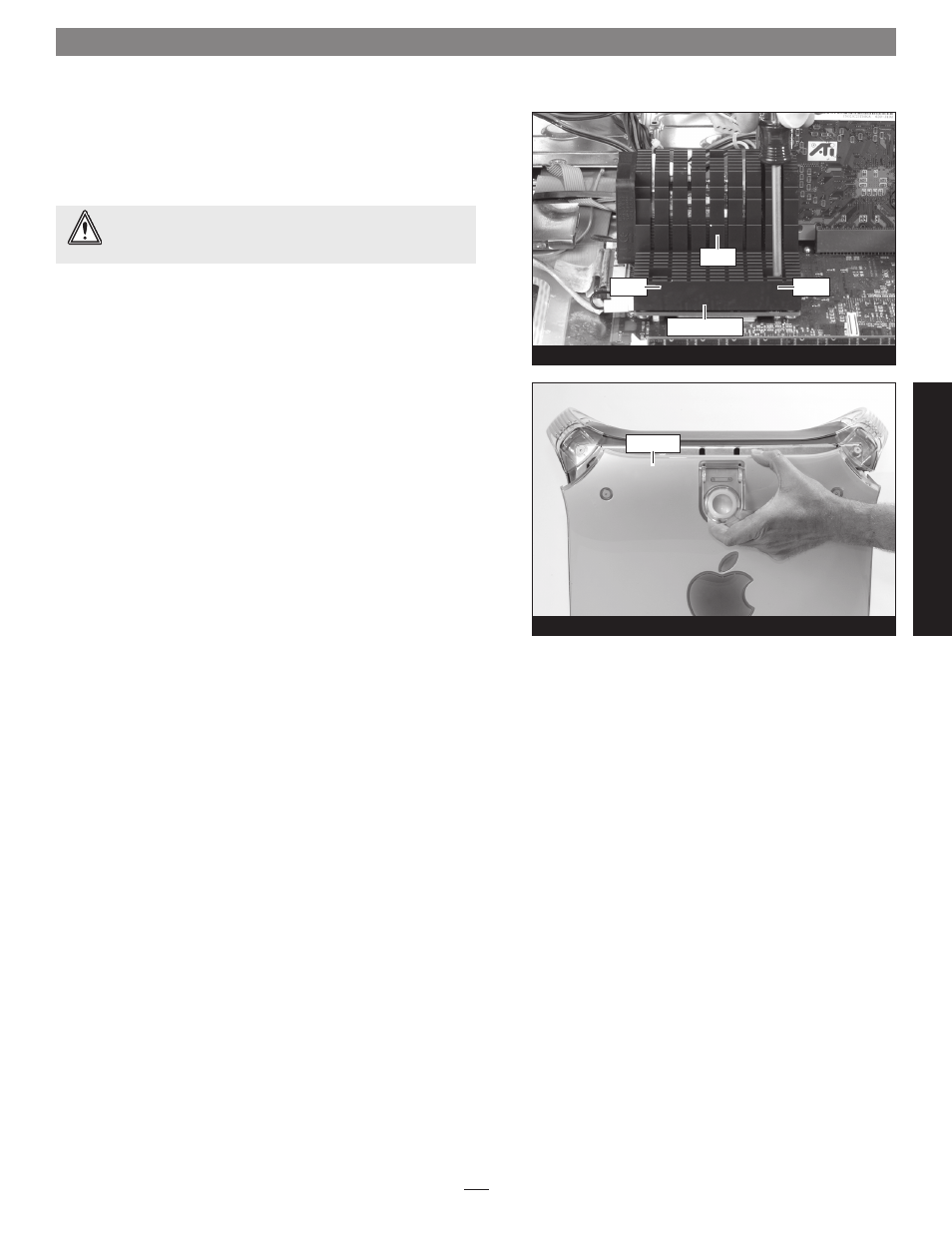

Figure 13
Figure 12
Encore/ST card
screw screw
Installation—AGP Graphics and Gigabit Ethernet Models
5. Making sure the Encore/ST card’s captive screws are engaged
properly in the threaded posts, tighten each of the three screws
and secure the card snugly to the logic board;
do not overtight-
en the screws (Figure 12).
Close Computer
1. Raise the side panel back into place (Figure 13).
2. Return the computer to your computing area if necessary, and
reconnect the power cord and peripheral cables to the computer.
Turn On Computer
Turn on your Power Mac; your accelerated machine should boot
normally.
side panel
screw
AG
P
Gr
ap
hi
cs
/G
ig
ab
it
Et
he
rn
et
WARNING: When your computer is operating, the Encore/ST’s
heat sink will become VERY hot to the touch; take care to not
touch the heat sinks, or you may get burned.
