1
Figure 36
Figure 35

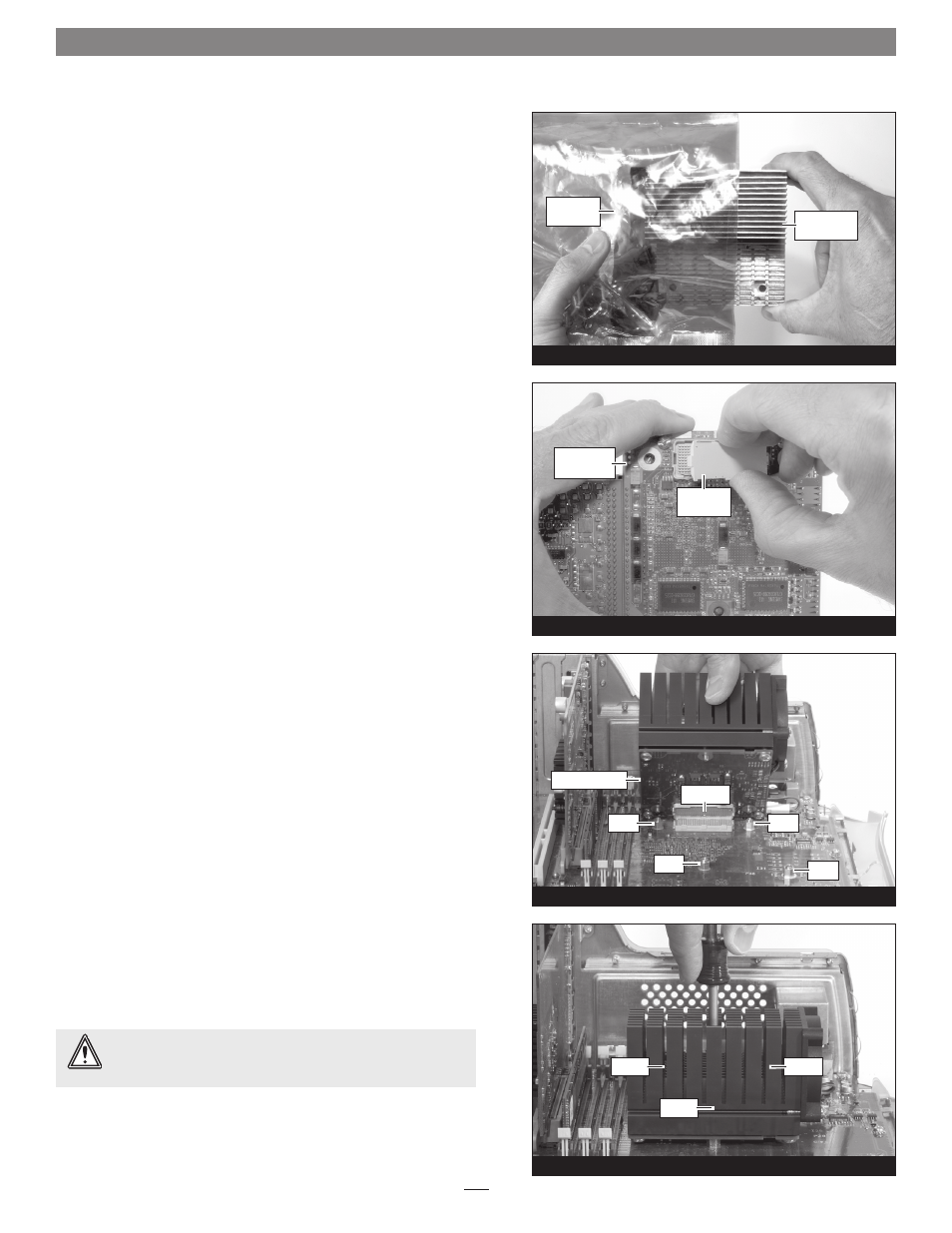

Installation—QuickSilver 001 and 00 Models
Install Encore/ST G4 Processor Upgrade Card
1. Remove the Encore/ST G4 processor upgrade card from its
anti-static package; make sure to handle the card by its edges
(Figure 35); your card may differ from what is pictured.
2. Carefully remove the cap covering the connector on the bot-
tom of the Encore/ST processor card, and then place the cap on
the original processor card’s connector
(Figure 36).
3. Place the processor card you removed from the computer into
the anti-static package, and then store it, the original heat sink,
heat sink clips, the screws you removed (except the one with the
lock washer), and the fan assembly in a safe place.
4. Align the connector on the bottom of the Encore/ST card with
the connector on the logic board (Figure 37), and then set the
card down on top of the four threaded posts. Make sure the
connectors are lined up, then, grasping the Encore/ST card by
its heat sink, gently press it straight down until the connectors
snap together. Verify the connectors are completely coupled by
gently pulling up on the edges of the Encore/ST board; the board
should remain firmly in place.
5. Making sure the Encore/ST card’s captive screws are engaged
properly in the threaded posts, tighten each of the three
screws and secure the card snugly to the logic board;
do not
overtighten the screws (Figure 38).
anti-static
package
Encore/ST G4
card
protective
cap
Encore/ST
card
Figure 37
post
connector
post post
Encore/ST card
Figure 38
screw
screw screw
WARNING: When your computer is operating, the Encore/ST’s
heat sink will become VERY hot to the touch; take care to not
touch the heat sinks, or you may get burned.
post
