SSD Installation Steps
SSD Installation
1. Remove the SSDs from their packaging.
2. Place an SSD label side up on top of the
Tempo SSD Pro card with the SSD’s and
card’s connectors aligned with each other
(Figure 3).
3. Push the SSD’s connector into the Tempo
SSD Pro card’s connector until the SSD is
completely seated
(Figure 3).
4. Holding the SSD firmly against the card, flip
the Tempo SSD Pro over again.
5. Using four of the eight screws provided, secure
the SSD to the Tempo SSD Pro card; do not
overtighten the screws
(Figure 4).
6. Flip the Tempo SSD Pro over again, and then
place the second SSD label side up on top of
the card with the SSD’s and card’s connectors
aligned with each other
(Figure 5).
7. Push the SSD’s connector into the Tempo
SSD Pro card’s connector until the SSD is
completely seated
(Figure 5).
8. Holding the SSD firmly against the card, flip
the Tempo SSD Pro over again.

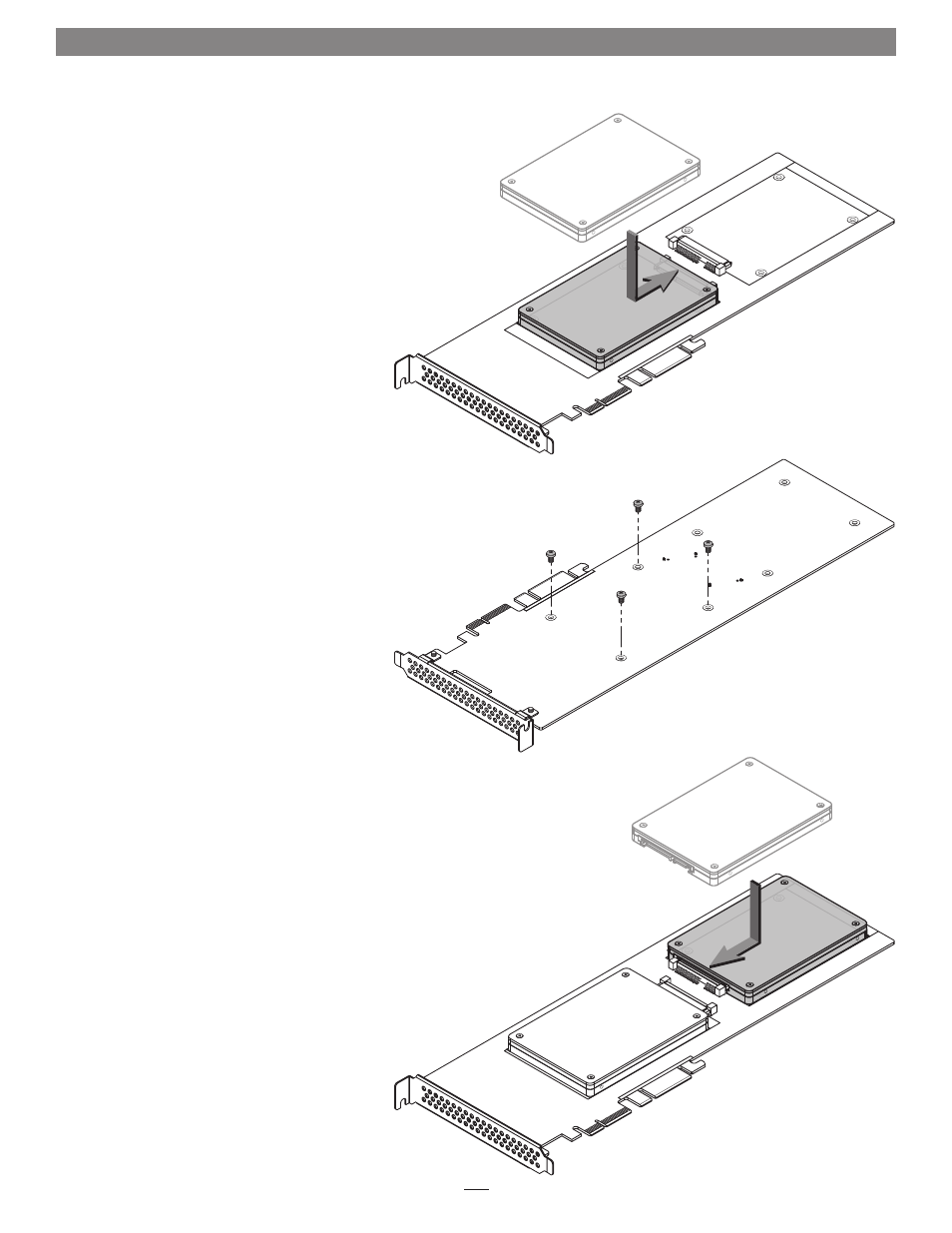

Figure 4
Figure 5
Figure 3
