1
Introduction and Package Contents
Congratulations on your purchase! Tempo SSD Pro provides a
handy way to install one or two 2.5-inch SATA SSDs (or HDDs)
into a PCIe slot. Dual SATA controllers (one for each SSD) ensure
that each SSD will perform at maximum speeds. OS X ® , Windows ®, and Thunderbolt ™ compatible, this card
supports both operating systems’ RAID features and works in
PCIe expansion chassis without additional drivers

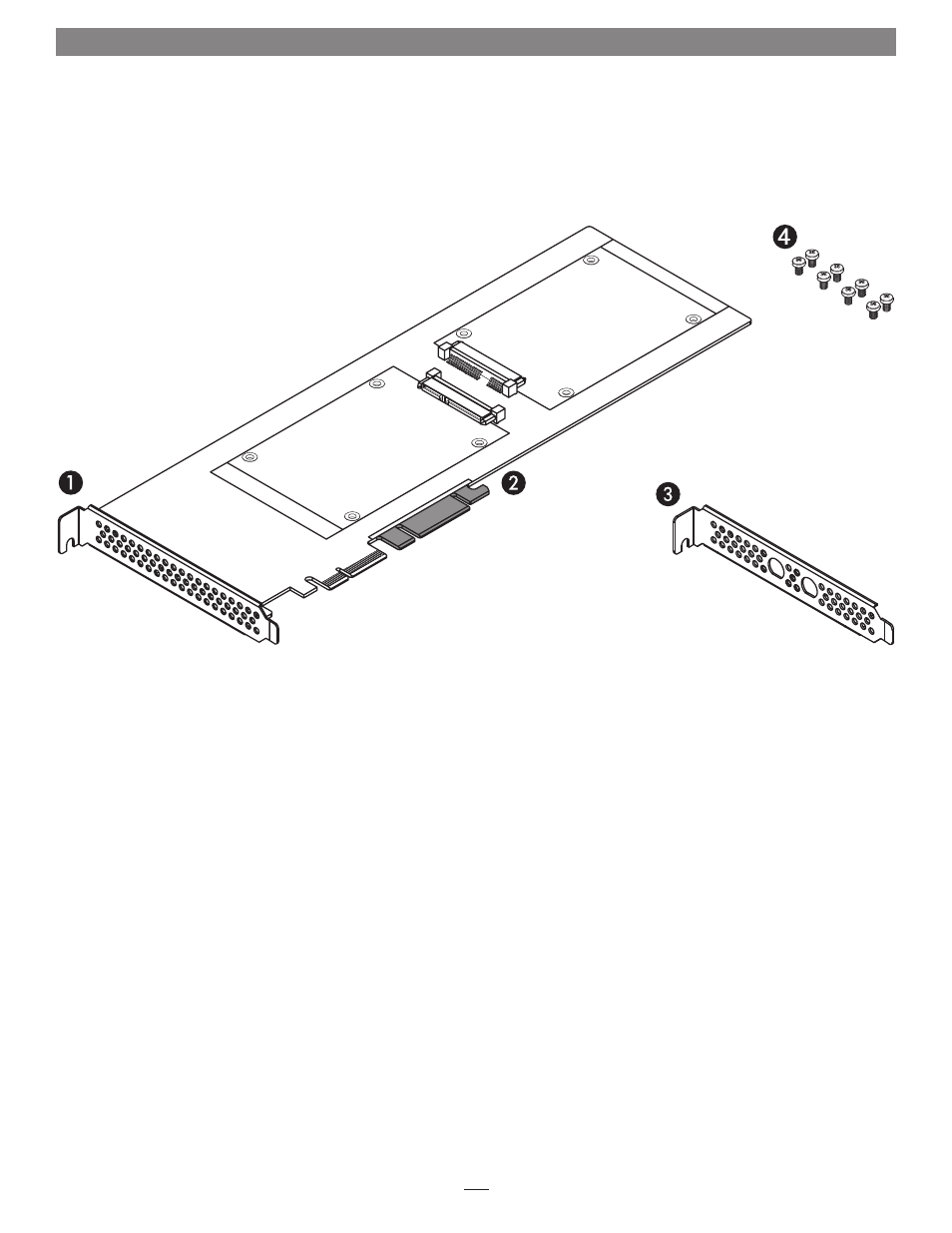

1 – Tempo SSD Pro Card
2 – Support Tabs
In longer PCIe slots, these tabs provide additional support
for the Tempo SSD Pro card. In some installations, it may be
necessary for you to snap off one or more of the tabs to allow
the card to fit properly
3 – Optional PCIe Bracket
This bracket supports the installation of two BNC connectors
like those supplied with the RED ROCKET card for SDI
output, and replaces the existing bracket attached to the
Tempo SSD Pro card. Use this bracket only when you install
BNC connectors!
4 – Drive Mount Screws
Eight screws are provided to attach SSDs to the card
