INSTALLATION STEPS FOR WINDOWS USERS - continued
Network Control Utility Software Installation Steps
1. Insert the included CD into the computer’s optical drive.
2. locate and double-click the Drivers folder, then double-click
the Windows (or Windowsx64) folder to view its sub-folders,
double-click the folder with the name of the Windows
version your computer is running, and then double-click the
network Control Utility folder.
3. Double-click SetupnCUwin to launch the installer. If your
computer is running Vista and you have not disabled User
account Control (UaC), a UAC window will appear; click
allow.
4. When the Marvell Network Control Utility InstallShield Wizard
window appears, click next.
5. When presented with the license agreement, select “I accept
the terms”, and then click next.
6. When the Readme information appears, click next.
7. When the next window appears, click Install; the software
will be installed. When the InstallShield Wizard Completed
window appears, click finish.
Link Aggregation Support Software Installation
Steps - Server 00 and XP Users, ONLY
1. Select Start > Control Panel. In the Control Panel window,
double-click network Connections.
2. In the Network Connections window, double-click the local
area Connection icon with the description: Generic Marvell
Yukon 88E8062 based Ethernet Controller.
3. In the Local Area Connection window, click Properties.
4. In the Local Area Connection Properties window, click the
checkbox next to link aggregation, and then click Install to
install the required software automatically.
Installation Steps
Support Note: To configure RLMT (Remote Link
Management Technology) settings, open Device Manager,
click the + next to Network adapters, and then double-click
Generic Marvell Yukon 88E8062 based Ethernet Controller to
bring up the Sonnet card’s properties window. Click the Advanced
tab, and then click RLMT Mode; select the appropriate setting
using the Value drop-down menu.
4
Link/Activity indicator - This green lED
displays the link status.
• When the LED is off, there is no link
between the Presto card and the network.
• When the LED is on, a link is established,
but there is no traffic on the network.
• When the LED is flashing, there is traffic
on the network to which the Presto card
is connected.
1000BaseT indicator - This red lED displays
1000BaseT (Gigabit Ethernet) connection
status.
• When the LED is on, a 1000BaseT link is
established.
Ethernet ports - Plug in any Category
5 or 6 unshielded twisted pair (UTP)
cables with RJ-45 connectors.
• Use standard cables when you are
connecting your computer through
a hub.
Ethernet port

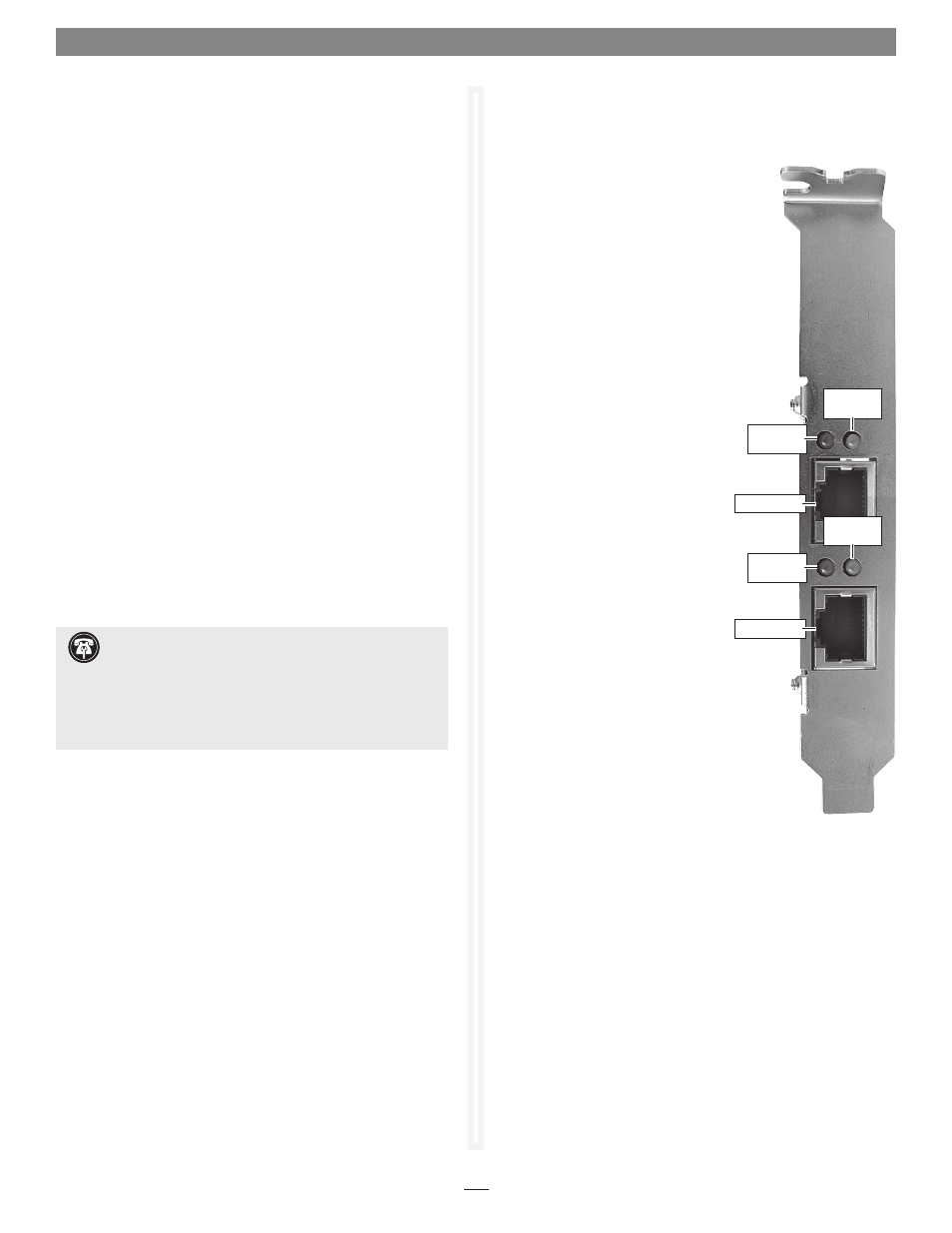

About the Presto Gigabit PCIe Server Card
1000BaseT
indicator
Link/Activity
indicator
Ethernet port
1000BaseT
indicator
Link/Activity
indicator
