A – Express Bus Extender PCIe 2.0 Installation Steps
If you purchased the QIO-E3-PCIE, install the PCIe adapter card
into your computer first. Otherwise, skip to the next page.
1. Shut down your computer, and then touch an expansion
card access cover on the back of the computer to discharge
any potentially damaging static electricity.
2. Disconnect the power cord and any remaining cables for
powered devices (monitor, printer, etc.) from the computer.

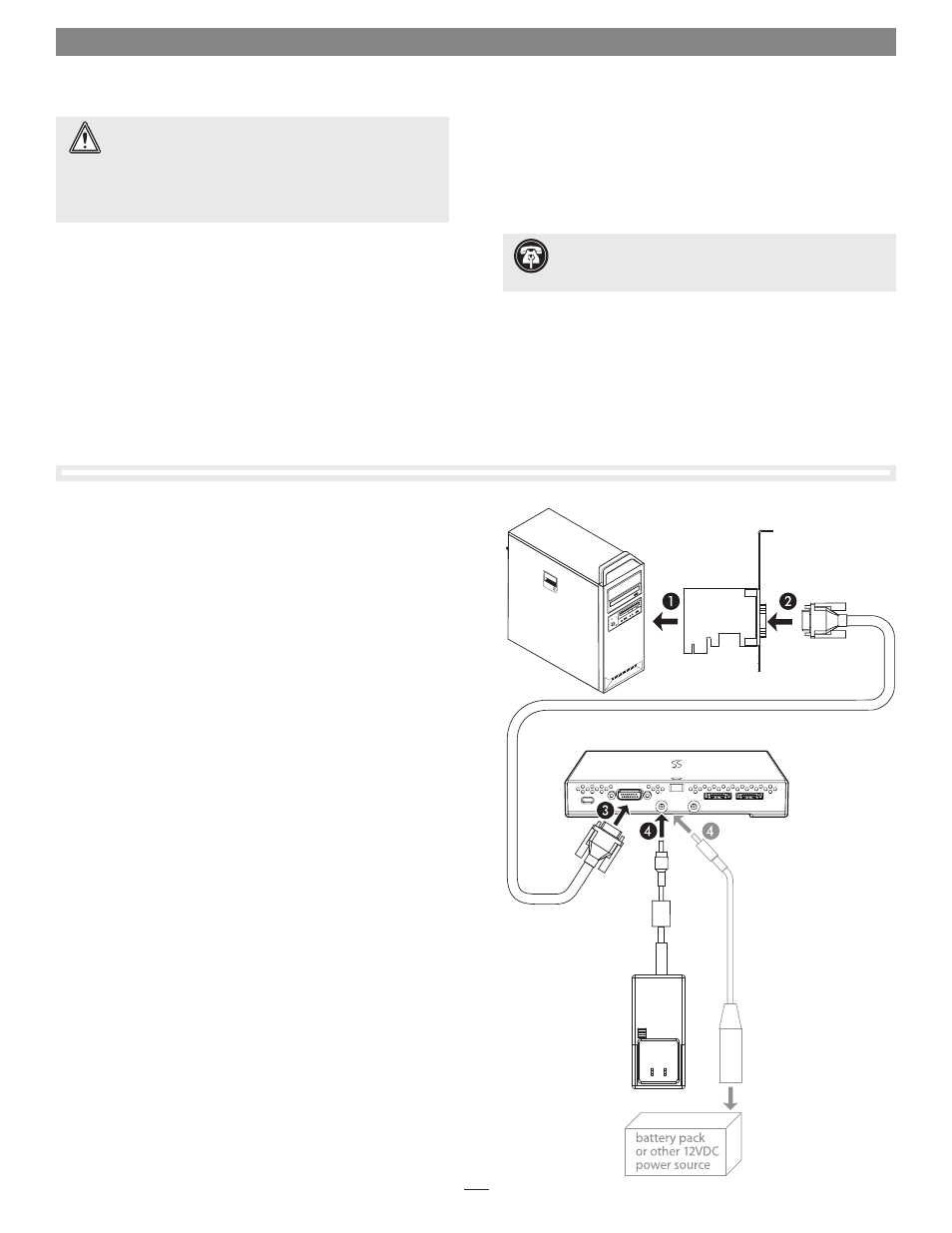

B – Connect Qio E3 to a Desktop Computer
1. Install the Bus Extender PCIe 2.0 adapter card into your
computer as described above.
2. Connect the external PCIe x1 interface cable to the Bus
Extender PCIe adapter card in your computer.
3. Connect the other end of the interface cable to the Qio E3
enclosure.
4. Connect either the AC adapter or the optional XLR power
cable (connected to a battery or other power source). Note
that the Power Indicator LED on the Qio E3 will not light
until after you turn on the computer.
5. Reconnect the power cord and peripheral cables to the
computer, and then skip to Chapter 6 – Windows User’s
BIOS Setup and Software Installation Steps.
7
Chapter 5 – Windows User’s Hardware Installation and Connection Steps
3. Open the computer to access the expansion card area (PCI
Express slots); refer to your computer’s user manual for specific
information.
4. Locate an available PCI Express slot (PCIe 2.0, if possible)
and remove its access cover.
5. Remove the Sonnet card from its packaging, and then install
it into the slot; make sure the card is firmly seated and
secured.
6. Close your computer; do not reconnect any power cables yet.
WARNING: When handling computer products, take care
to prevent components from being damaged by static
electricity; avoid working in carpeted areas. Handle expansion
cards only by their edges and avoid touching connector traces
and component pins. Also, avoid touching the logic board and
any of its components.
Support Note: To avoid generating a static charge in
your body, do not walk around the room until after you
finish installing the PCIe adapter card and close the computer.
