Chapter 2
Using Mistral Lan Router ISDN
2.1 Cautions for using Mistral Lan Router ISDN
Do not place Mistral Lan Router ISDN under high humidity and high temperature.
Do not use the same power source for Mistral Lan Router ISDN with other equipment.
Do not open or repair the case yourself. If Mistral Lan Router ISDN is too hot, turn off
the power immediately and have a qualified serviceman repair it.
Place Mistral Lan Router ISDN on the stable surface.
Only use the power adapter that comes with the package.

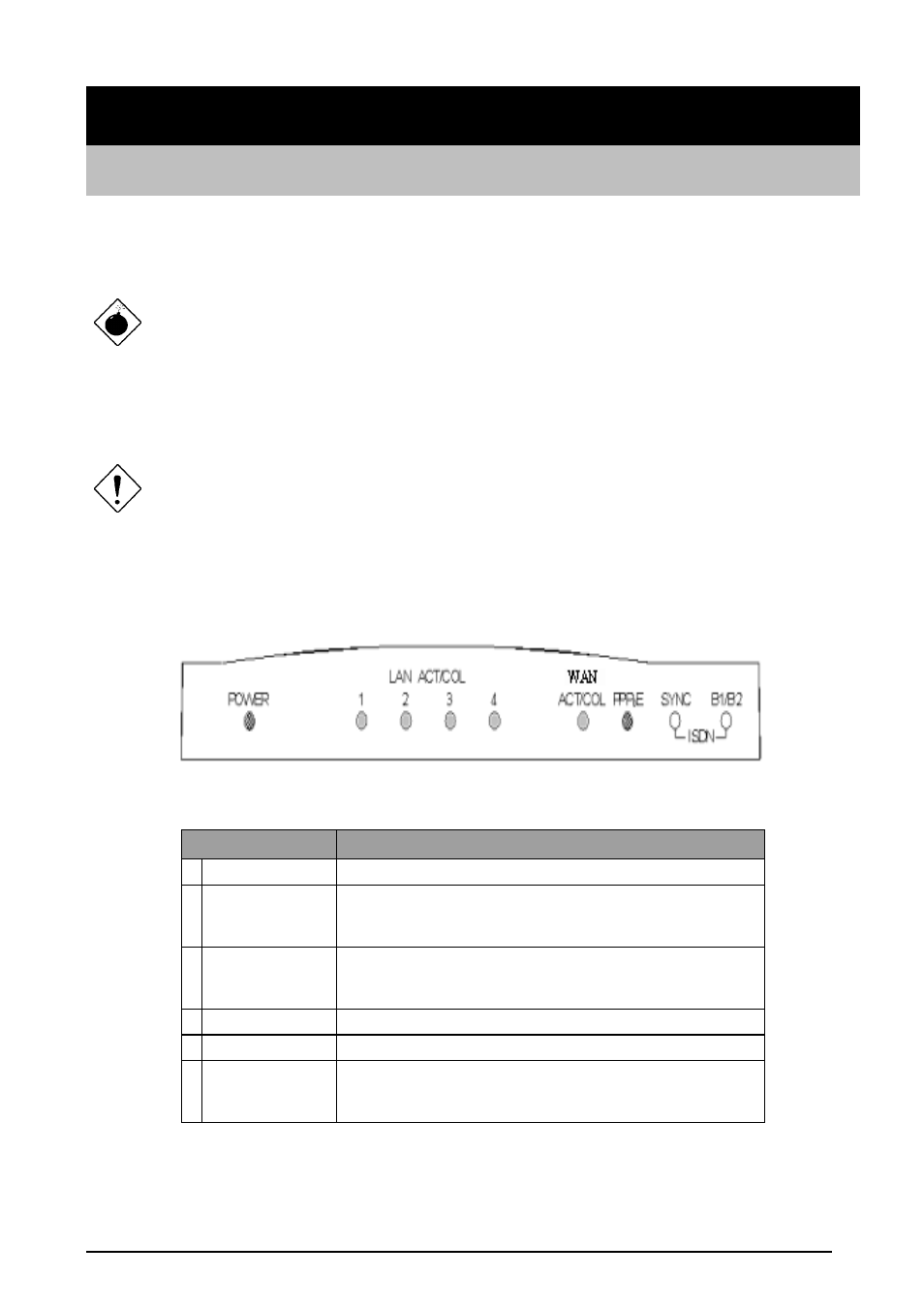

2.2 The front LEDs
LED Meaning
1 Power Lit when AC power is connected
2 LAN 1-4 /
ACT/COL
Lit Green when connected to a LAN device
Flashes Green when sending/receiving data
Flashes Yellow when collisions happen
3 WAN/
ACT / COL
Lit Green when connected to a WAN device
Flashes Green when sending/receiving data
Flashes Yellow when collisions happen
4 PPP Lit when PPPoE connection is activated
5 ISDN / SYNC
Lit when ISDN Layer 1 is activated
6 ISDN / B1/B2 Lit Green when B1 channel is activated
Lit Yellow when B2 channel is activated
Lit Green +Yellow when B1 and B2 channels are activated
