Check for parts online at www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-5 CST 8
Operator's Manual
Rivers Edge® One-Man Ladder Stands, Onset and Onset XT
10
4
7
8 15
14
7
16
1
12
9
2
18
6
17
5
18
2
13
3
1
11
kEY # PART # DESCRIPTION QTY.
1 48240B BOLT 1/4-20 X 1-1/2 HHCS GR5 BLK ZN 13
2 48271B BOLT 1/4-20 X 2-1/4 HHCS GR5 BLK ZN 6
3 48752B NUT, FLANGED, TOP LOCK, 1/4-20 19
4 63281 SNAP PIN, 1/4 X 1-3/4, ROUNDED RETAINER 10
5 410030 RAIL SIDE LADDER 2
6 410031 RAIL SIDE FLARED LADDER 1
7 410032 ASSY LADDER STEEL 3 STEP FOLDING 2
8 410035 ASSY LADDER W/MOUNT STEEL 3 STEP
FOLDING
1
9 410037 RAIL SIDE FLARED LONG LADDER 1
10 410040 TUBE SIDE RAIL LONG BASE EXTENSION 1
11 410044 WELDMENT BASE EXTENSION 1
12 410047 WELDMENT PLATFORM 19.65" X 12" 1
13 410072 BAR RETAINER FABRIC SEAT 2
14 410073 WELDMENT STABILIZER BAR 29.25" 1
15 410075 TUBE EXTENSION STABILIZER BAR ROUND 1
16 AL7 SIDE SUPPORT, FOOT PLATFORM, ALPINE 2
17 SL67 WELDMENT, TREE BLADE, LADDER 1
18 48261B WASHER 1/4 BLK ZNC 11
ITEMS NOT ShOWN
-- 360023 ASSEMBLY MESH SEAT 1
-- 48415 RATCHET STRAP 1
-- 48155 FULL BODY HARNESS (FAS) 1
-- 48691 TIE-OFF ROPE KIT (INCLUDES TWO 15' ROPES
AND ONE 9' ROPE)
2
-- 48800 DVD TREESTAND SAFETY 1

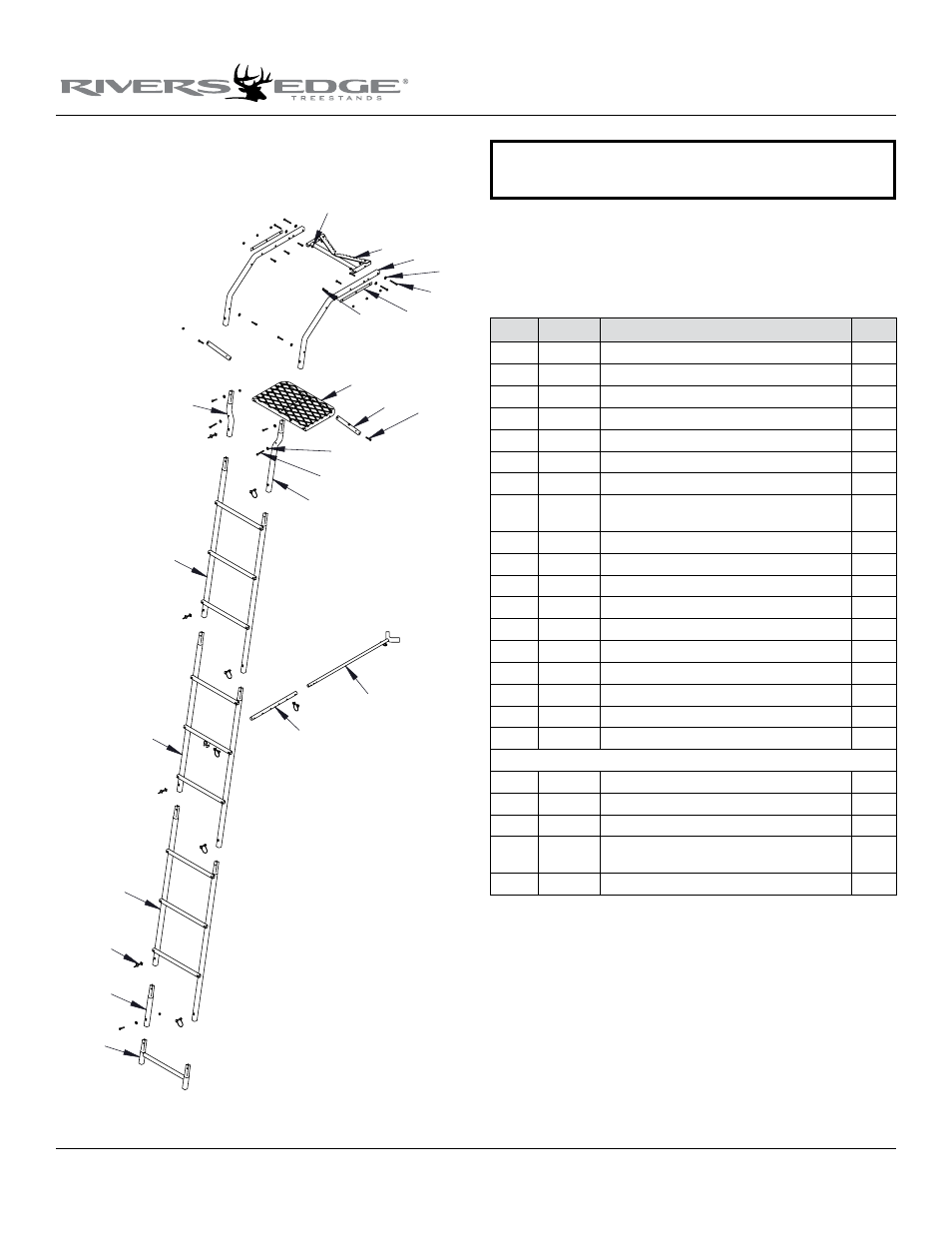

RE625 Parts Explosion and Parts list
Maximum height - 14' 6" to seat
Maximum field Rating - 300 lbs.
Tree Diameter Range - 12" to 20"
NO EXTENSIONS AvAIlABlE fOR ThIS MODEl.
NEvER MODIfY OR EXCEED ORIGINAl STATED uSE hEIGhT!
